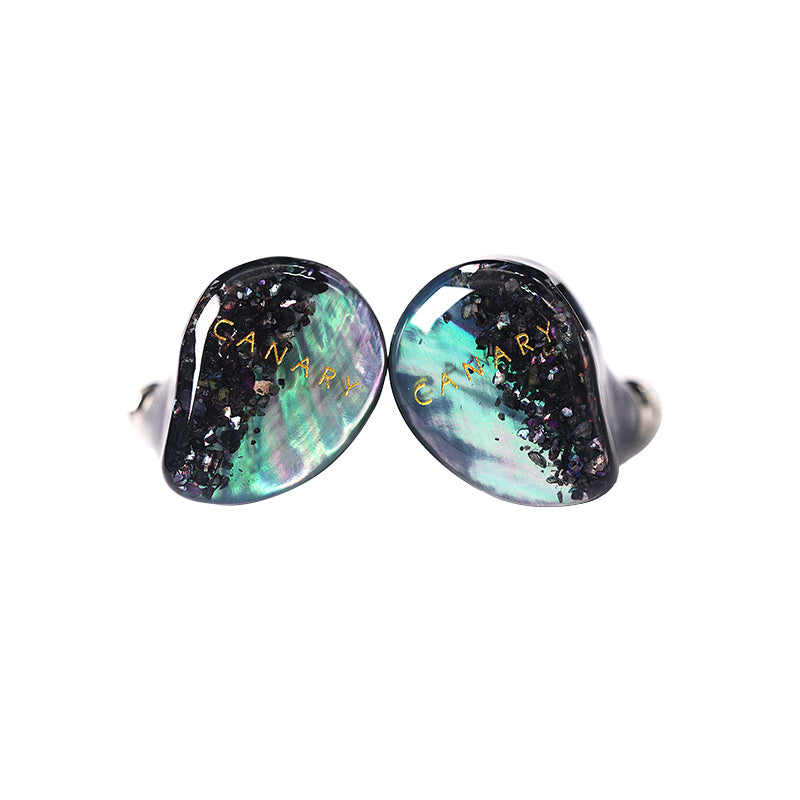

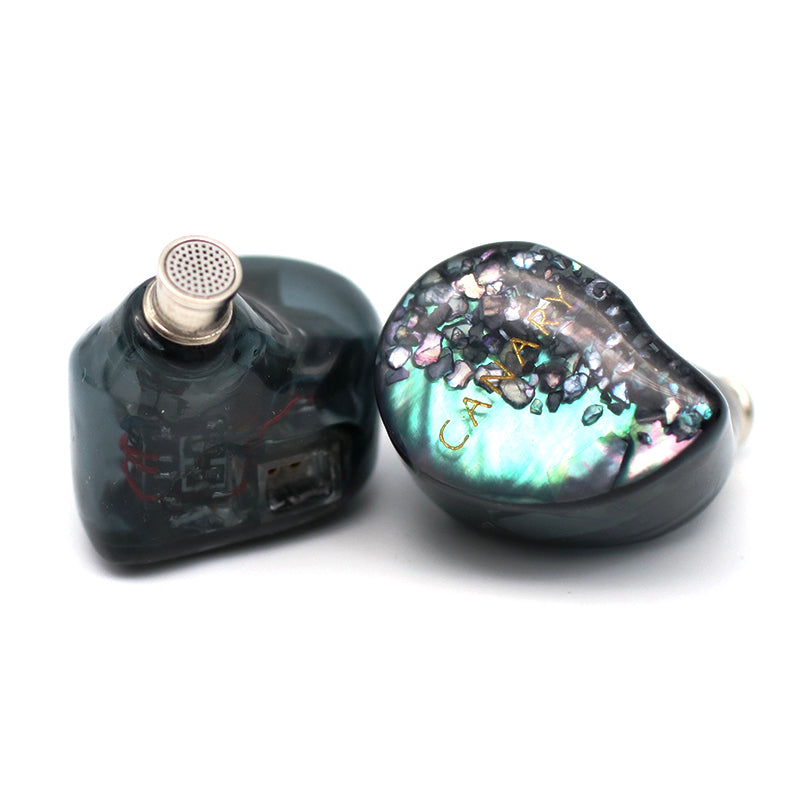

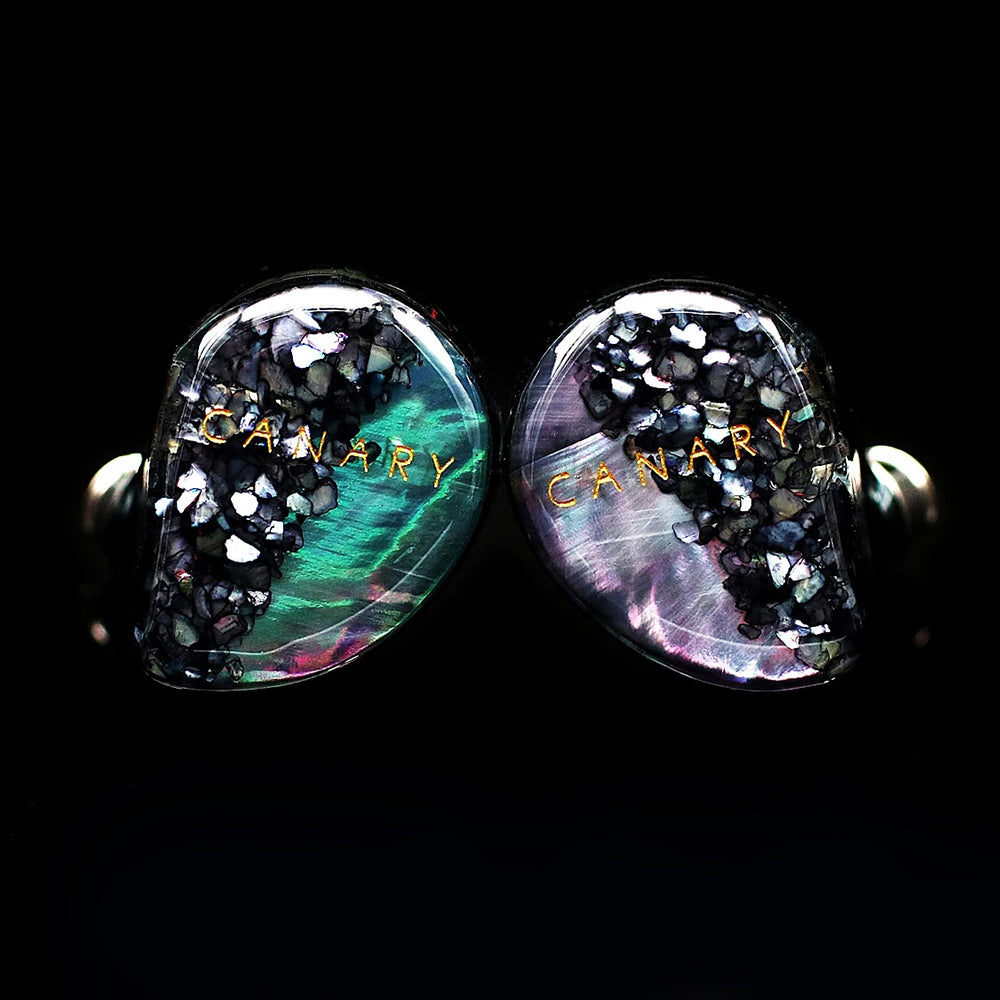

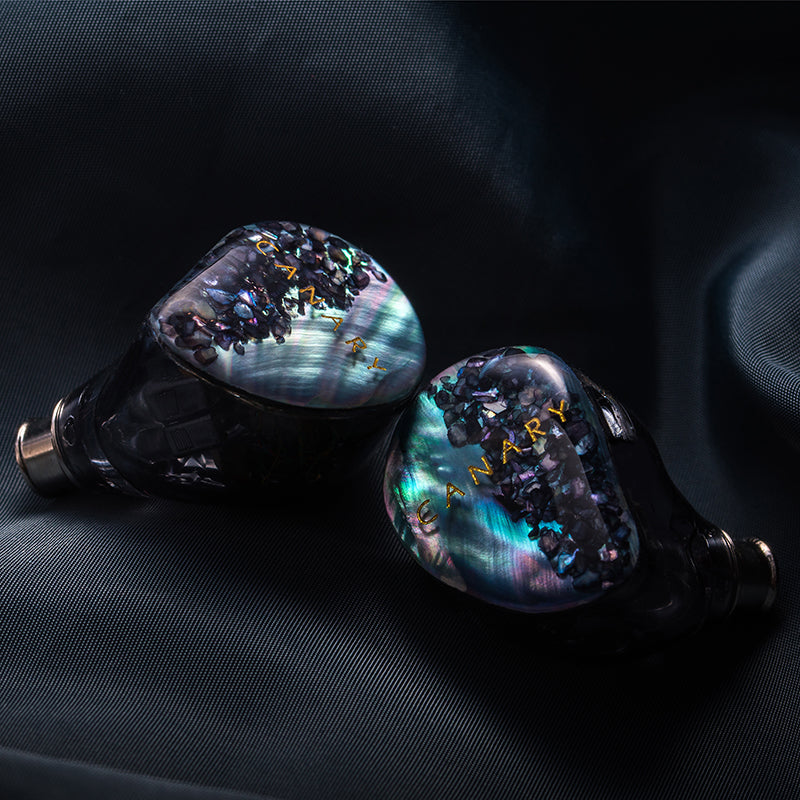

AAW Canary
Canary Isobaric Electrostatic Universal In-Ear Monitor
- Please note,this product is only available for North America, Europe and Australia
- Dual diaphragm isobaric woofer
- 4 precision balanced armature driver
- 2 Electrostatic Super Tweeter
- Symphonym Hakone UPOCC Silver/Copper Cable
AAW Canary
About AAW
AAW leads the premier In-ear Monitor market with its distinctive innovations on driver technology. We design some of the best balanced armature with dynamic driver hybrid system in custom and universal in-ear monitors. However, our miniature planar magnetic and electro-static driver system are truly state of the art technology in the portable audio world, unmatched by competition. Each of your AAW In-ear Monitor is handcrafted by our technicians with the most meticulous quality standard. We are the Mechanics of Sound.
Dual Electrostatic Super Tweeter
Powered by the cutting-edging miniature electrostatic tweeter technology, the Canary employs a six microgram, gold plated membrane held against a plate charged up to 400 volts. The electrical voltage is amplified up to 100 times via a built-in miniature transformer. The electrostatic attraction-repulsion effect induced by the electrical signals triggers the membrane to produce acoustic pressure. Simply plug into your player and high fidelity music is ready to go.
Hybrid Architecture 4 Way Crossover
Developed and enhanced based on our acclaimed hybrid system, Canary is at the summit of our ideology of fusing the best traits out of dynamic woofer, precision balanced armature driver and newly developed electrostatic super tweeters. Improving upon the highly praised TrueXross system to solve coherence issue in hybrid earphones, Canary utilize a 4 way passive + acoustic crossover design with all drivers configured diaphragm wise to perform in its designated frequency range, scrambled phase shift is minimized to optimal level.

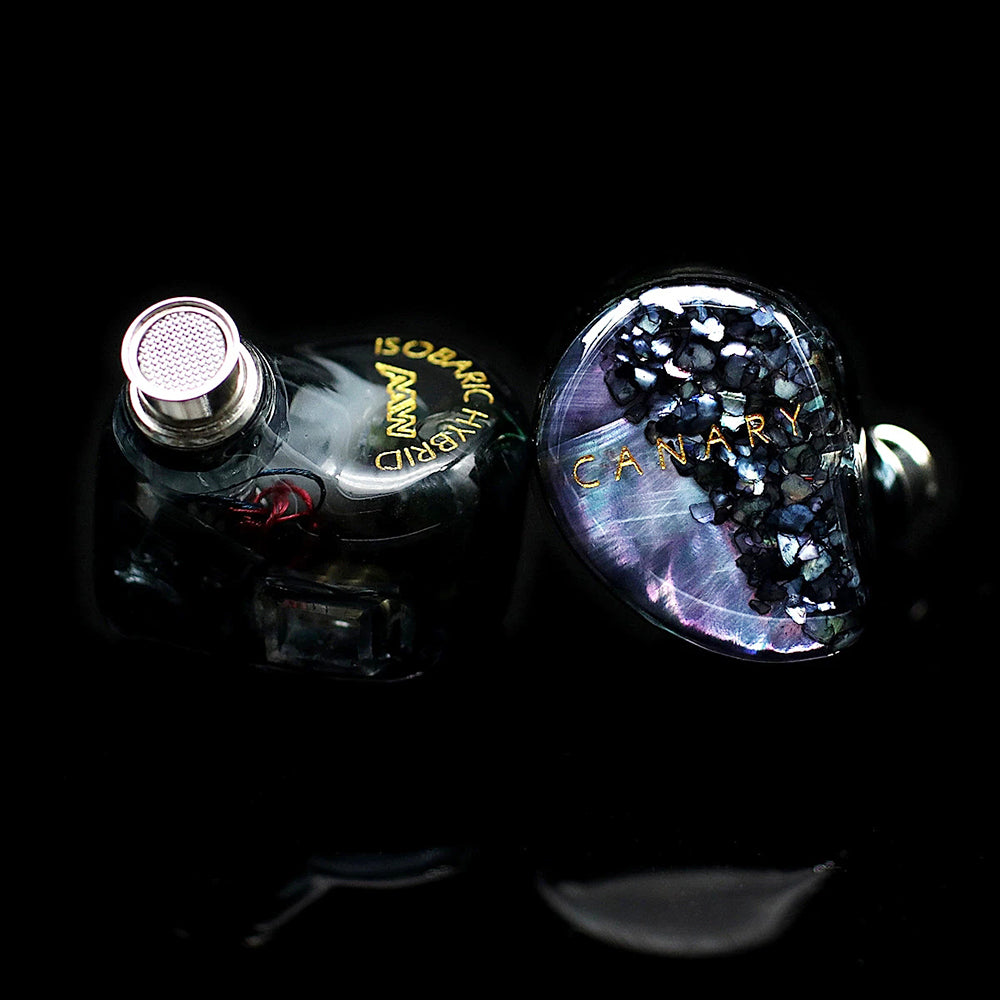

Isobaric Woofer
The 6mm dual isobaric(push-pull) woofer is equipped with dual diaphragms and high strength neodymium magnets. The isobaric design offers inverse phasing between the voice coils to eliminate non-linearities in typical dynamic woofer. By further utilizing the TruXross+ technology, minimal frequency overlap is achieved in harmony with the balanced armature drivers. It pushes the bass performance to a new level in the Canary while not overpowering the rest of the spectrum.
Ultra Low & Flat Impedance
Canary is designed to be true reference equipment while delivering full bodied, fast transient sound signature. It offers powerful yet natural sub bass, which you will never find in a full balanced armature IEM. With a meticulously designed driver matrix, Canary has a flat impedance of 12ohm across its entire frequency range. Inheriting AAW's highly praised musical imaging, instrument separation and realistic sound stage, Canary steps up the game by offering extended treble and superior detail retrieval.

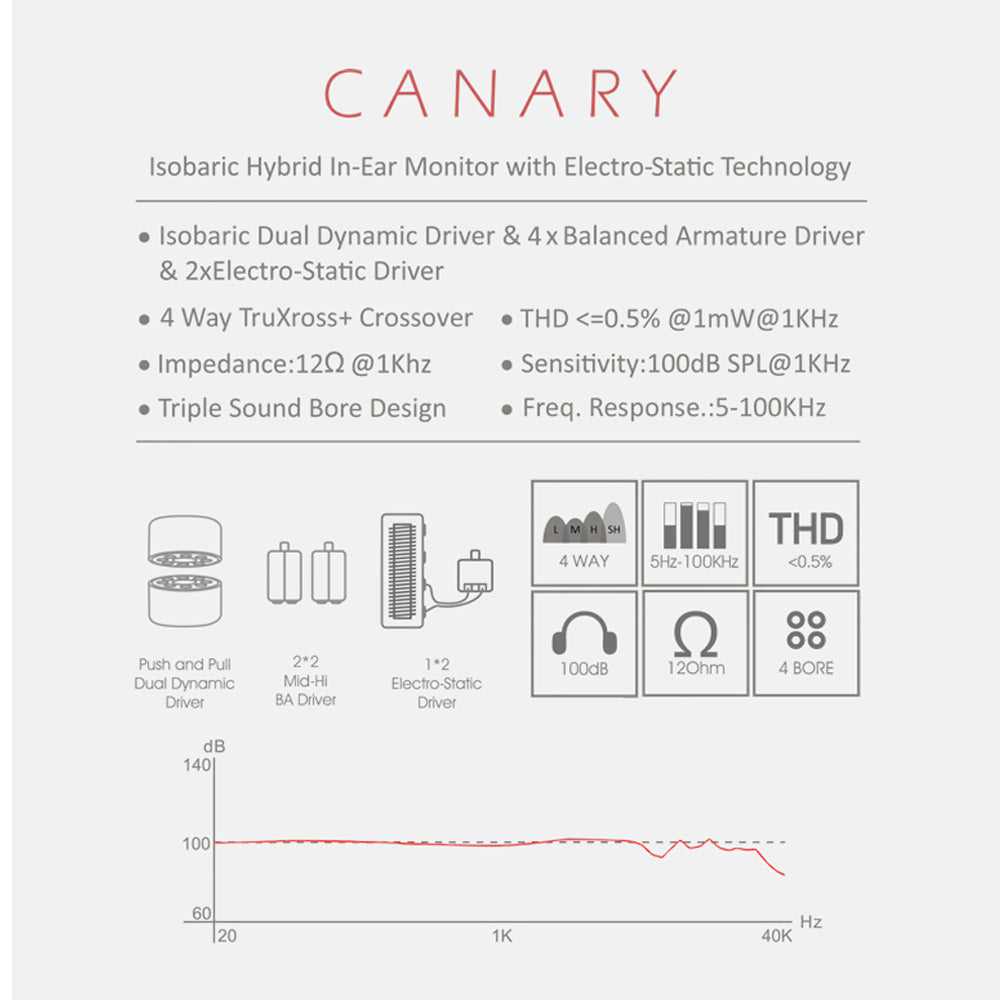

Technical Details
- 1 x AAW Canary
- User Manual
