FPGA Core Archietecture

The X8 XVIII allows the decoding of high resolution audio streams up to PCM 32bit 768kHz and DSD512. Using an FPGA specially programmed by Aune, the X8 XVIII offers a precise, dynamic and detailed sound reproduction.

Multiple Connectivity Options

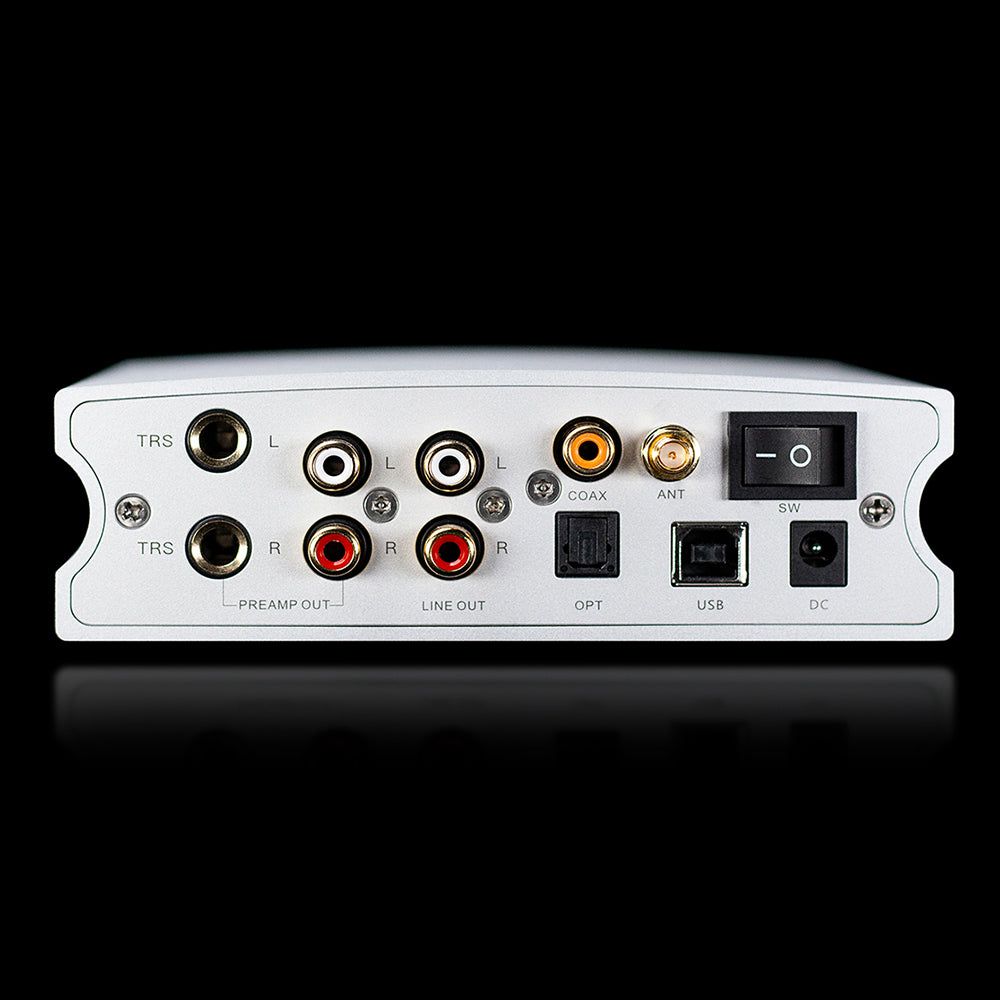

Aune’s X8 series of DACs have always featured an array of connectivity options. With the latest X8 XVIII anniversary edition DAC, Aune adds balanced TRS pre-amp output to the device along with the regular RCA Pre-amp and RCA line-out ports. As for input, we get Optical, Bluetooth, Coaxial, and USB input ports. Coaxial input allows you to connect it with other digital sources in the chain.

Interchangeable AOP

The Aune X8 XVIII takes the concept of the interchangeable AOP. This one is indeed mounted on DIP8 support and accessible under the device. You just have to replace it by another model to adapt the sound reproduction of the DAC according to your audio system and your listening.

Seven available filters

The Aune X8 XVIII provides seven filters. Just like the interchangeable AOP, these allow you to adjust the sound signature of the device according to your desires.

High-Resolution Bluetooth Input Support

Aune X8 XVIII Magic DAC gets high-resolution Bluetooth input connection support. It supports high-resolution LDAC/AptXHD/AAC Wireless Bluetooth transmission codec support. Simply connect it with smartphones, Computers, and Music Players and enjoy high-resolution music.

Technical Details

Product type
DAC
Inputs
1x Coaxial
1x Optical
1x USB-B
Bluetooth
Outputs
1x Stereo RCA (Pre-Out)
1x Dual Jack 6.35mm TRS (Pre-Out)
1x Stereo RCA (Line out)
Supported sampling rates
USB : PCM up to 32bit 768kHz, DSD up to DSD512
Coaxial : PCM up to 24bit 384kHz, DSD DoP up to DoP128
Optique : PCM up to 24bit 192kHz, DSD DoP up to DoP64
Output level
2Vrms
Frequency response
20Hz ~ 20kHz ±0.5dB
SNR
121dB
THD+N (1kHz)
0.00027%
Color
Black
Package
Aune X8 XVIII
1x Power adapter
1x USB Cable
1x Bluetooth antenna
Inside the Box
  • 1 x Aune X8 XVIII
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The Aune X8 XVIII Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 7-14 working days. No cancellation of orders once ordered.

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
