Balanced Headphone Amplifier

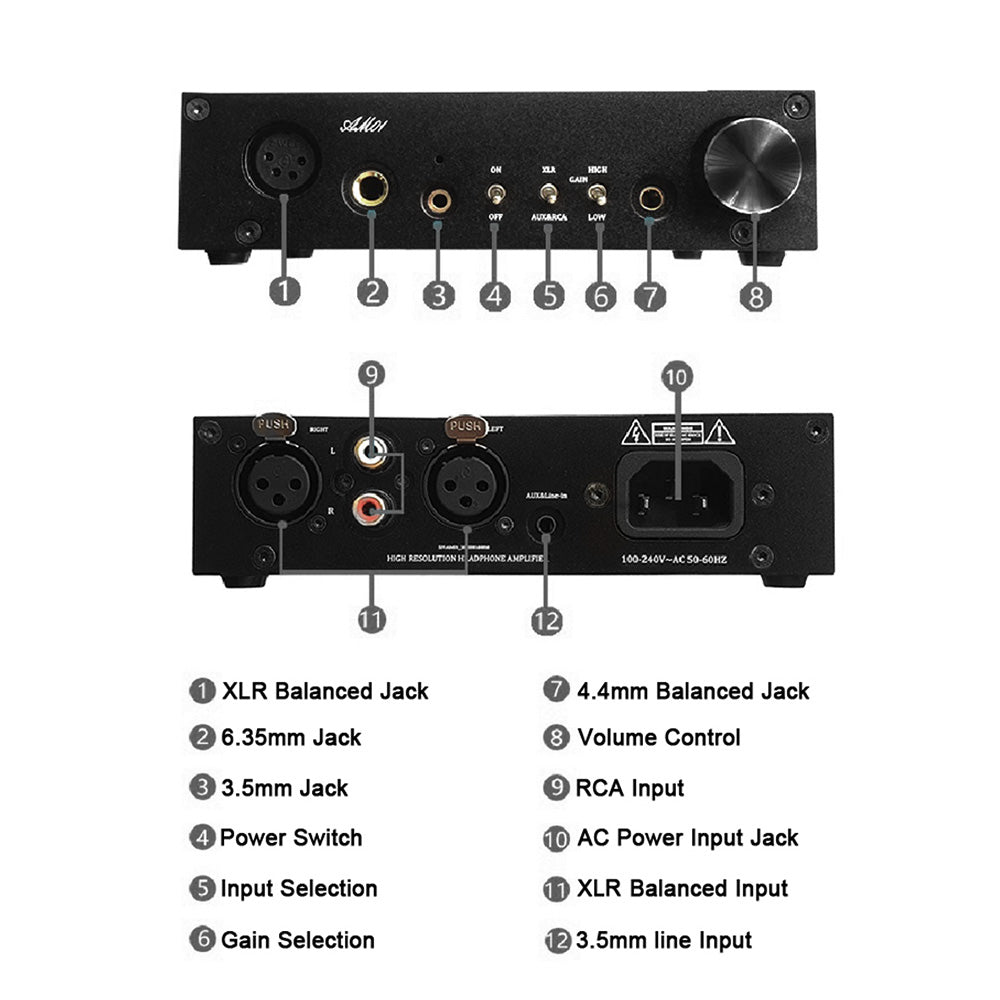

F.Audio AM01 is a headphone amplifier with balanced output/input and other options. Designed with XLR/4.4mm balanced port while RCA/3.5mm/6.35mm port are also available for multiple types of devices to meet different needs. It could be a master of all

Compact and Lightweight.

As a headphone amplifier with such amount of ports, it’s not bulky at all. Instead, coming with a lightweight body and compact size, AM01 is beyond your expectation. It’s convenient to carry everyday for any occasions. Get yourself immersed in the HiFi world at any time

Designed to be Extraordinary.

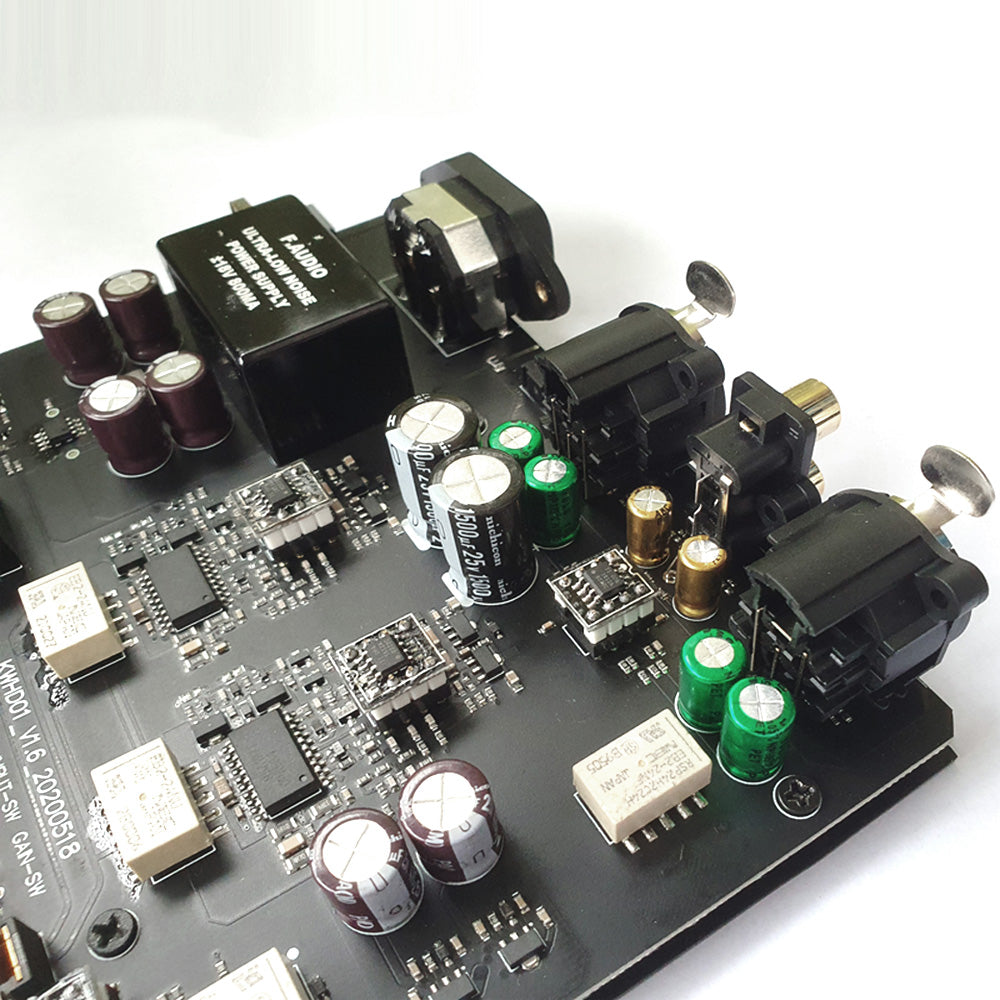

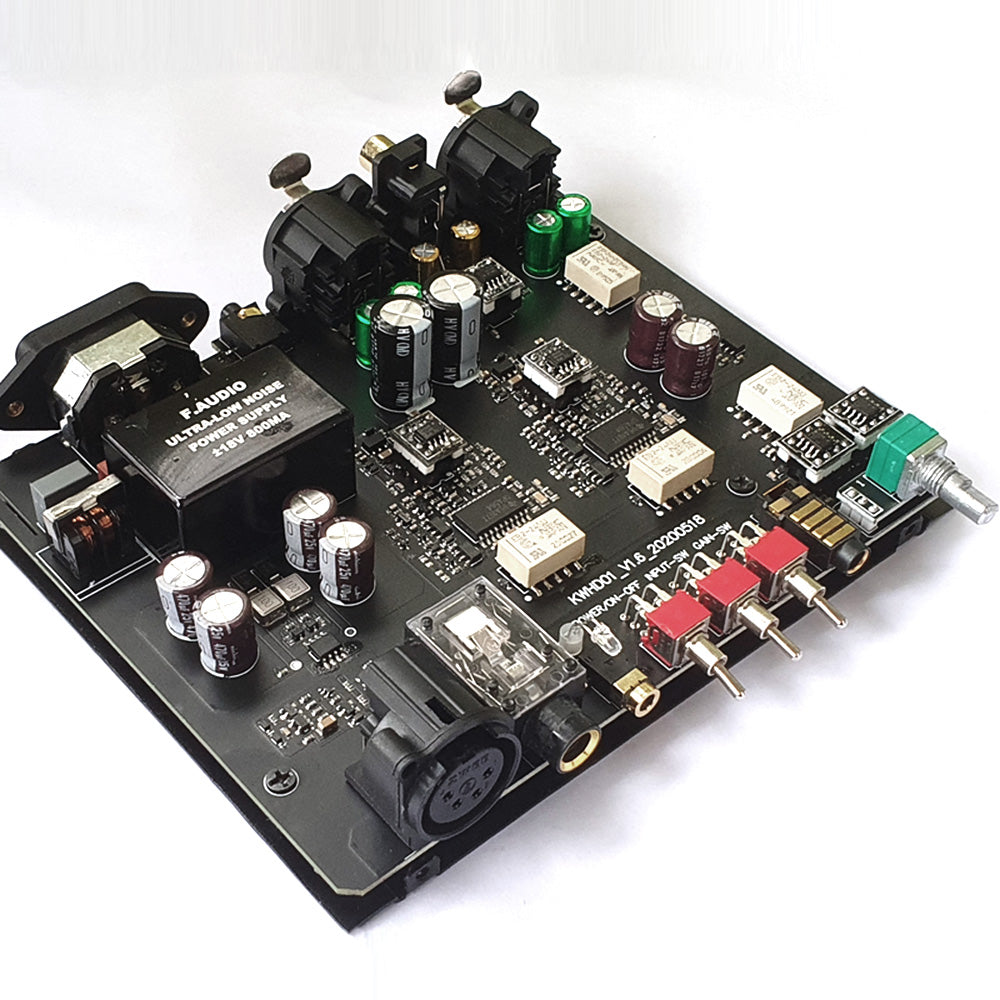

F.Audio has 10 groups of power management in total. The main power supply is 18V. It also has two pieces of OPA564AIDWPR and five pieces of OPA1612AIDR operational amplifier. Included a pinboard, it ensures free changing. The excellent circuit structure offers low harmonic wave, low loss and high fidelity. The high output power and free switch between high and low gain, compatible with multiple ports make it a high cost performance product.

What You Will Get?

F.Audio is a brand that is keen to product quality and we listen to our customer’s voice. Every time you gave us feedback and criticism, we have taken it seriously and made improvements. AM01 is like the fruit of our hardwork and we hope you will like it

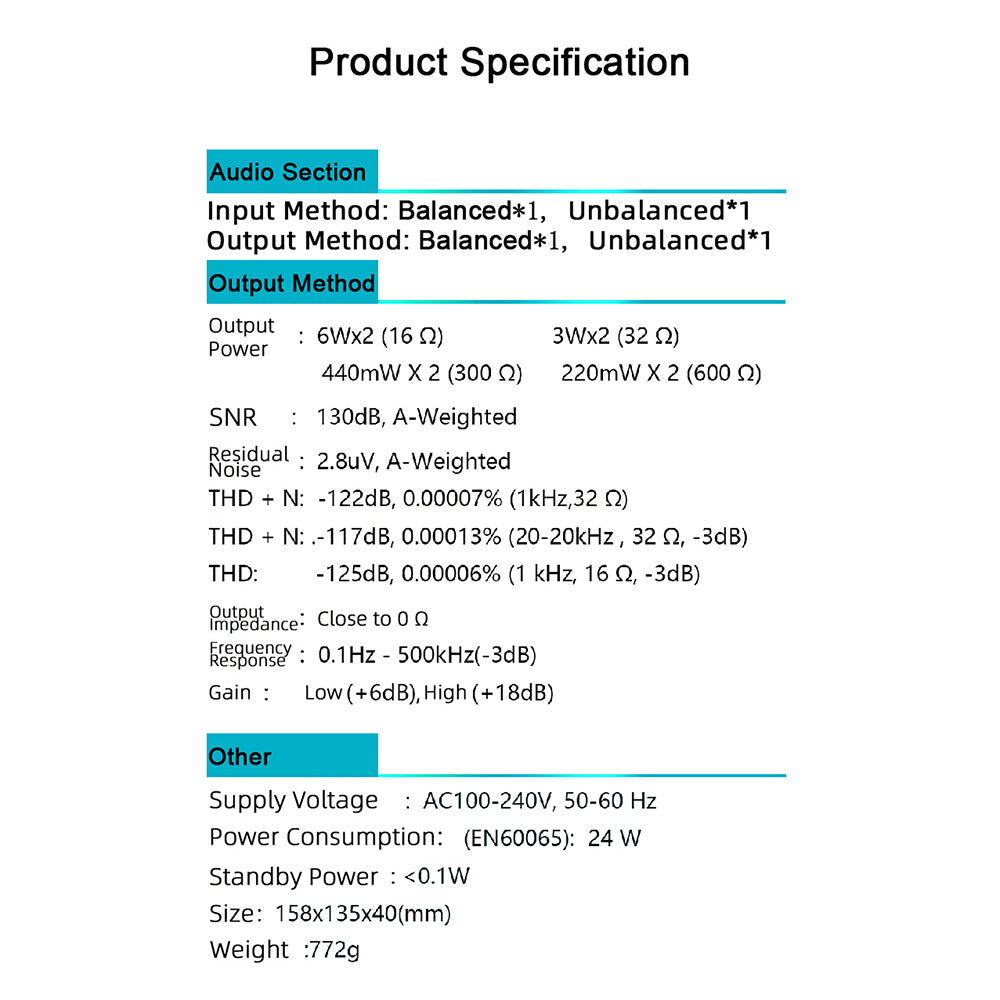

Technical Details

Audio Section
Input Method: Balanced*1, Unbalanced*1 Output Method: Balanced*1, Unbalanced*1
Output Power
6Wx2 (16 Q) 440mW X 2 (300 Q2) 3Wx2 (32 02) 220mW X 2 (600 Q)
SNR
130dB, A-Weighted
Rosidual Noise
2.8uV, A-Weighted THD + N: -122dB, 0.00007% (1kHz,32 02) THD + N; .-117dB, 0.00013% (20-20kHz, 32 n, -3dB)
THD
-125dB, 0.00006% (1 kHz, 16 n, -3dB)
Output impedance
Close to 0
Frequency Response
0.1Hz - 500kHz(-3dB)
Gain
Low (+ 6dB), High (+18dB)
Supply Voltage
AC100-240V, 50-60 Hz
Power Consumption
(EN60065): 24 W
Standby Power
<0.1W
Product Dimension
-Size: 158x135x40(mm) -Weight:772g
Package Dimension
-Size:250mm*200mm*70mm -Weight: 855g
Inside the Box
  • 1 x F.Audio AM01
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The F.Audio AM01 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.
