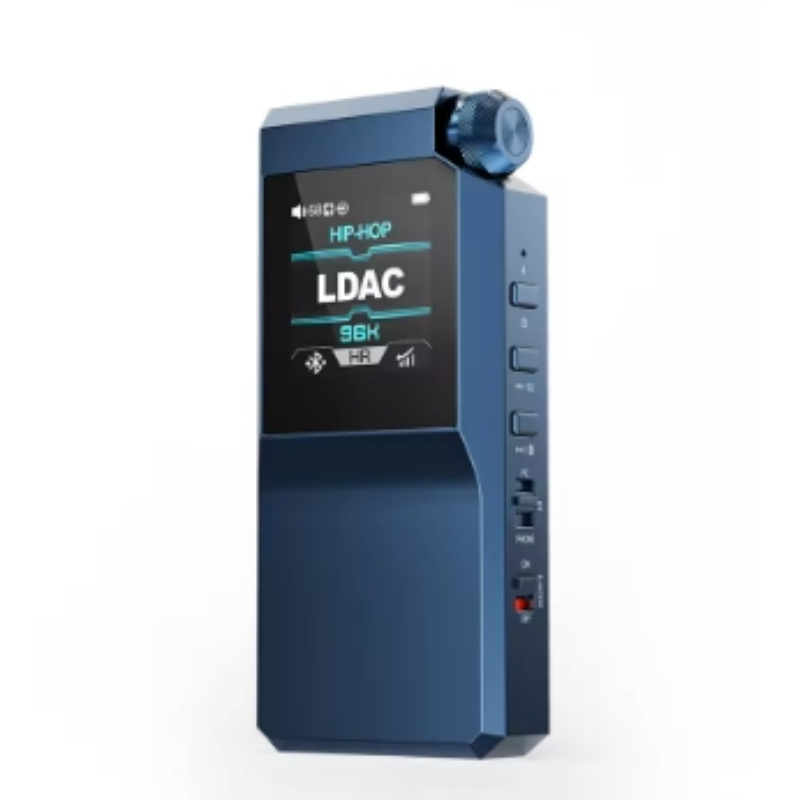

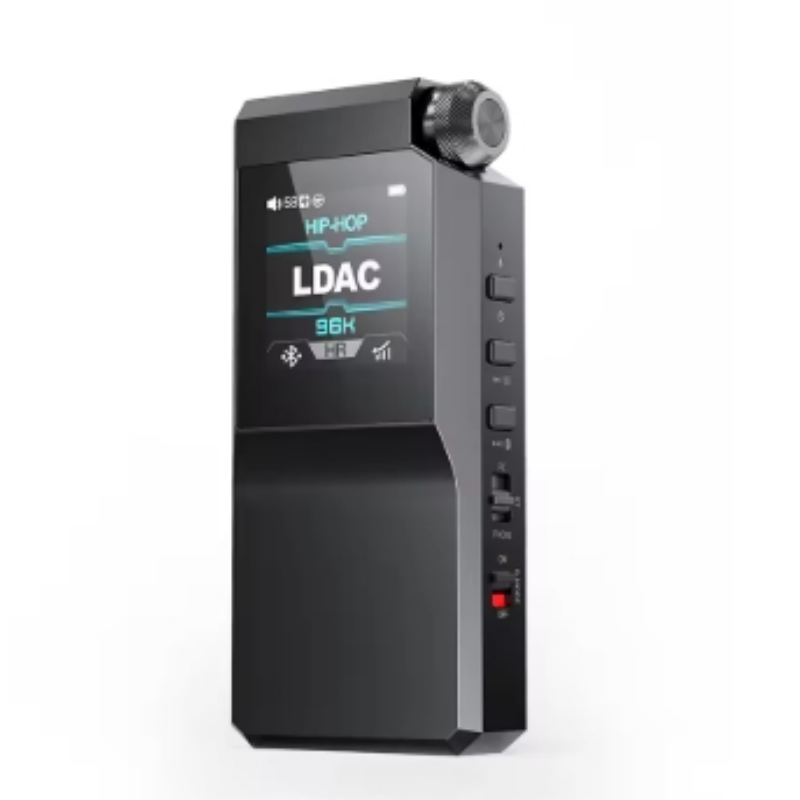

BTR17 - A Master of All Trades

The BTR17 combines FiiO's expertise in DAC and headphone amp technology into a compact, flagship-level device. With features like multi-stage audio architecture and precision power supply, it sets a new standard in Bluetooth headphone amps.

Flagship Qualcomm Bluetooth Chip QCC5181

Equipped with the Qualcomm QCC5181 Bluetooth chip, the BTR17 supports Bluetooth LE Audio, offering a transmission bandwidth of 2.1Mbps for lossless sound quality. It achieves CD-level audio over Bluetooth with aptX Adaptive, LDAC, and other high-quality audio codecs. Additionally, Bluetooth 5.4 ensures an enhanced wireless listening experience.

Patented Desktop Mode and Independent Power Supply

In Desktop Mode, the BTR17 can be powered by an external supply, ensuring the device’s internal battery remains safe while delivering maximum audio output without draining your phone's battery. This patented design (Patent number: L202321946664.8) boosts performance for high-end audio.

Flexible Operating Modes

The three-position PC/BT/PHONE switch allows seamless transitions between operating modes, optimizing power supply depending on the connected device, whether it's a computer, Bluetooth device, or phone.

XMOS 16-Core XU316 USB Chip

The flagship XMOS XU316 chip provides low latency, stable transmission, and compatibility with high-resolution audio streams (768kHz/32bit, DSD512, MQA). It supports high-definition PEQ, ensuring optimal audio quality.

10-Band High-Precision Lossless PEQ

Fine-tune your audio with the BTR17's 10-band PEQ, which offers adjustable frequency points, gain, bandwidth, and Q values. This allows for the simulation or correction of different headphone frequency response curves. You can also import, export, share, and save EQ settings.

Dual Flagship ESS ES9069Q DACs

The BTR17 features dual ESS ES9069Q DACs, offering 130dB dynamic range and -120dB total harmonic distortion. This results in clear, musical sound with reduced digital noise.

THX AAA 78+ Headphone Amplifier

The four-channel fully balanced THX AAA 78+ headphone amp utilizes 8 op-amps in parallel, ensuring powerful yet controlled output for a natural listening experience. With a power output of up to 650mW+650mW (balanced, desktop mode), it delivers a 203% power increase compared to the BTR7.

Multi-Stage Hi-Fi Audio Architecture

The BTR17 integrates a multi-stage analog and digital audio architecture that delivers premium audio processing. It ensures precise restoration of audio details and dynamic range, comparable to high-end digital players.

Three-Stage Precision Power Supply

A three-stage, ten-rail precision power supply offers stable energy, ensuring optimal performance with minimal distortion. It includes dedicated power rails for digital signal processing, DAC conversion, and analog amplification.

Comprehensive Protection for Safe Listening

The BTR17 features built-in temperature and DC output detection, preventing damage to both the device and headphones. Volume limits are also implemented to prevent accidental loud volumes that could cause hearing damage.

High-Quality Build and Design

The BTR17 features a durable 3D aluminum alloy body with raw leather accents, offering both style and comfort. The 1.3-inch IPS color screen provides an intuitive interface, with real-time updates on the audio format and other settings.

Versatile Connectivity and Driver-Free Mode

The device supports 3.5mm and 4.4mm outputs, with in-line controls for easy operation. It is compatible with most headphones and can be used with devices like Switch, PS5, and others in driver-free UAC1.0 mode.

Stylish and Protective Case

The BTR17 comes in black or blue, each with a matching leatherette case that provides both protection and a stylish look.

Companion App for Enhanced Functionality

Pair the BTR17 with the FiiO Control App to unlock additional features, including firmware upgrades (OTA or local). This app enhances the overall user experience, offering greater control over the device.

Technical Details

USB Chip
XMOS XU316
USB DAC
768kHz-32bit, DSD512 native, MQA full decoding
USB DAC Driver-Free Mode
Supported
Bluetooth Chip
QCC5181
Bluetooth Version
5.4
Bluetooth Formats Supported
AAC/SBC/aptX/aptX Adaptive/aptX Lossless/aptX HD/LDAC
DAC
ES9069Q*2
Display
1.3-inch 240x240 color IPS
Battery Life
About 8 hours (LDAC)
Charging Time
≤2H
Headphone Outputs
Single-ended 3.5mm + balanced 4.4mm
Output Power 1
L+R > 280mW+280mW (32Ω, THD+N < 1%, single-ended, desktop mode)
Output Power 2
L+R ≥ 31mW+31mW (300Ω, THD+N < 1%, single-ended, desktop mode)
Output Power 3
L+R ≥ 650mW+650mW (32Ω, THD+N < 1%, balanced, desktop mode)
Output Power 4
L+R ≥ 125mW+125mW (300Ω, THD+N < 1%, balanced, desktop mode)
Output Power 5
L+R > 300mW+300mW (32Ω, THD+N < 1%, balanced, non-desktop mode)
Output Power 6
L+R ≥ 140mW+140mW (32Ω, THD+N < 1%, single-ended, non-desktop mode)
Signal-to-Noise Ratio
≥126dB (UAC decoding, desktop mode, A-weighted)
THD+N
<0.00035% (UAC decoding, desktop mode, balanced output)
Dimensions
About 16.3x41.2x86.6mm
Weight
About 73.4g
Color
Black/Blue
Inside the Box
  • 1x BTR17
  • 1x Leatherette case
  • 1x Specially-made short dual Type-C OTG data cable
  • 1x Quick start guide
  • 1x Warranty card
  • 1x PET protective film (pre-installed)
