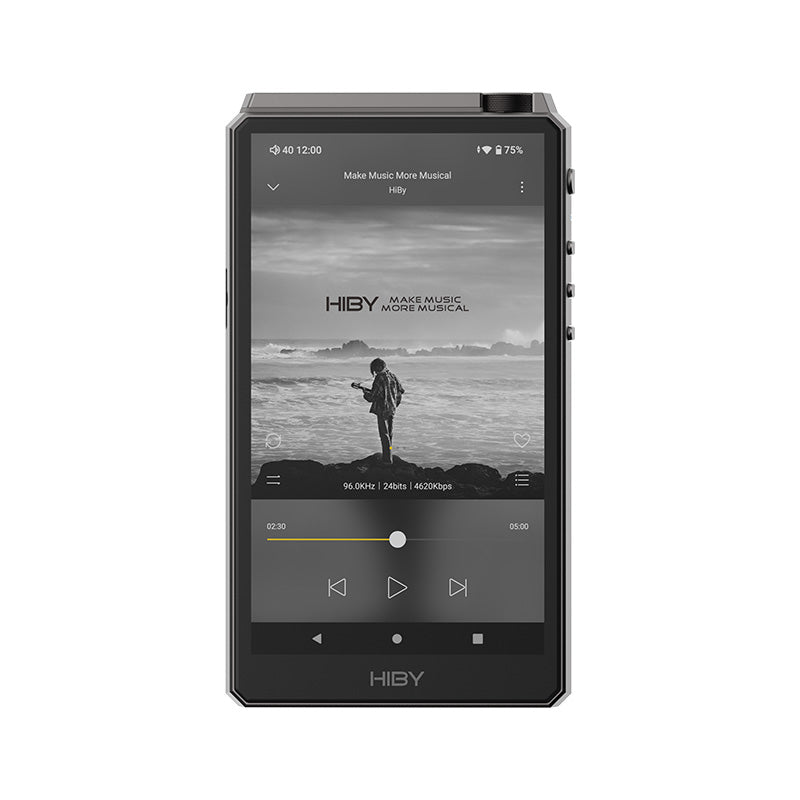

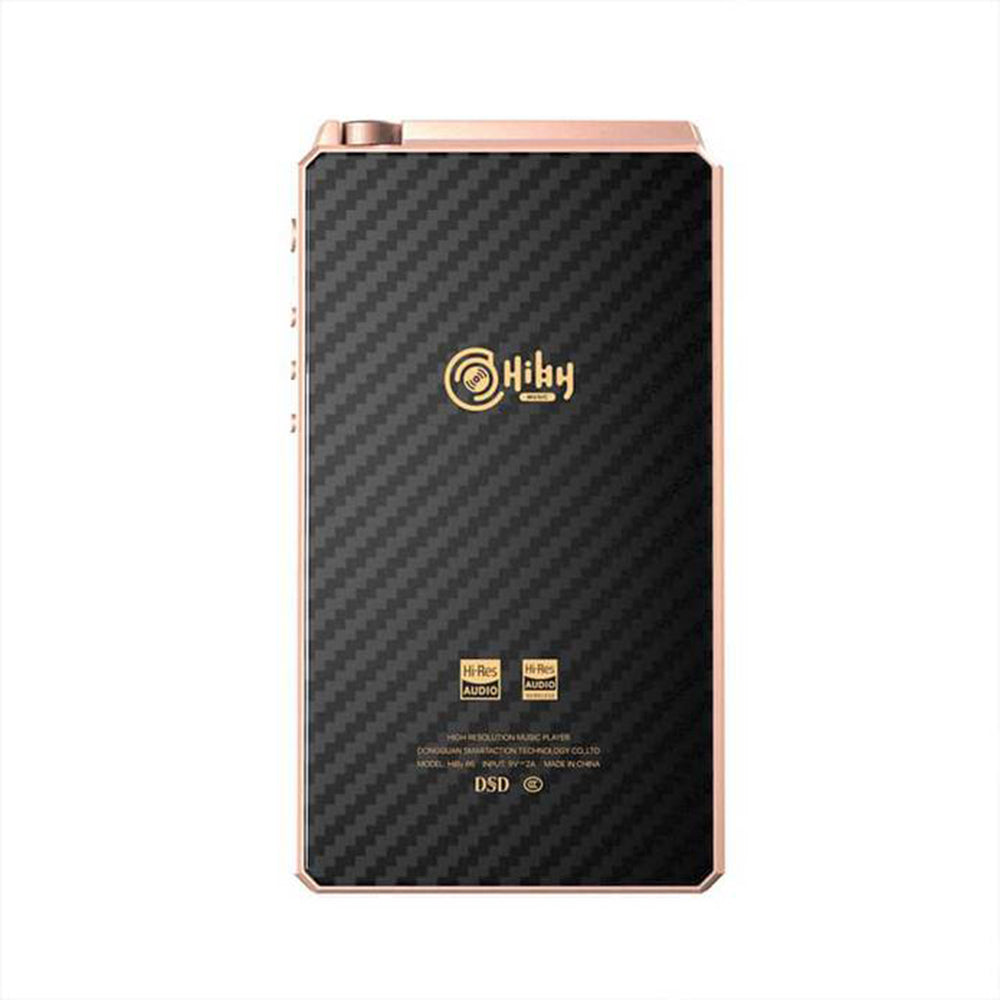

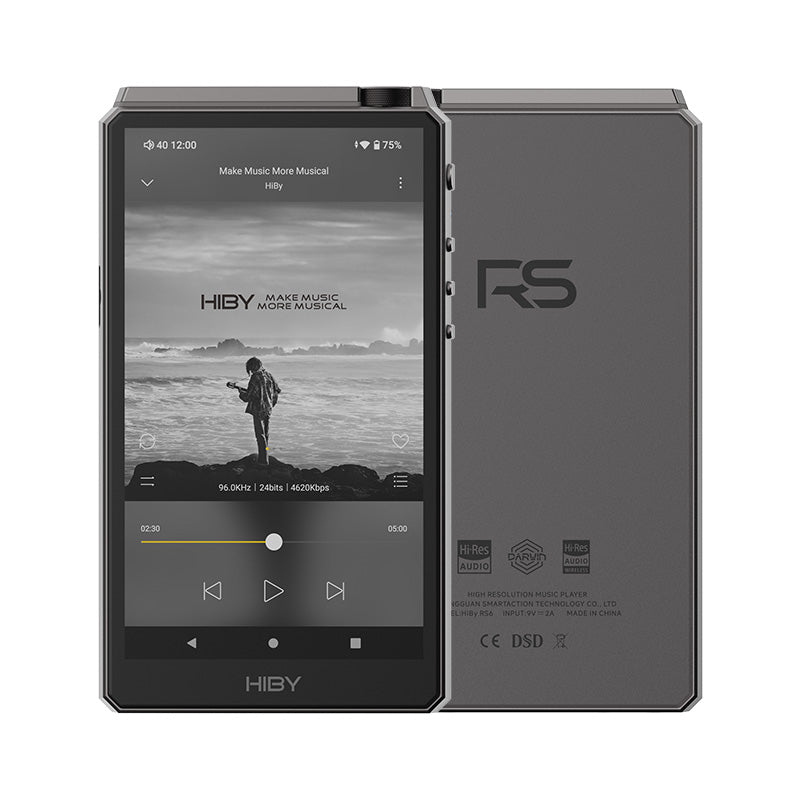

Hiby RS6
Portable Lossless Digital Music Player
- HiBy’s self-developed Darwin Architecture
- R-2R Ladder Array DAC Technology
- 256-Tap adjustable FIR Filter
- Full 16x MQA decoding
- Open Android 9 OS
- Bluetooth V5.0 connectivity
- HiByLink App support
- 2.4 & 5GHz Dual-band WiFi
- Native DSD decoding
Hiby RS6

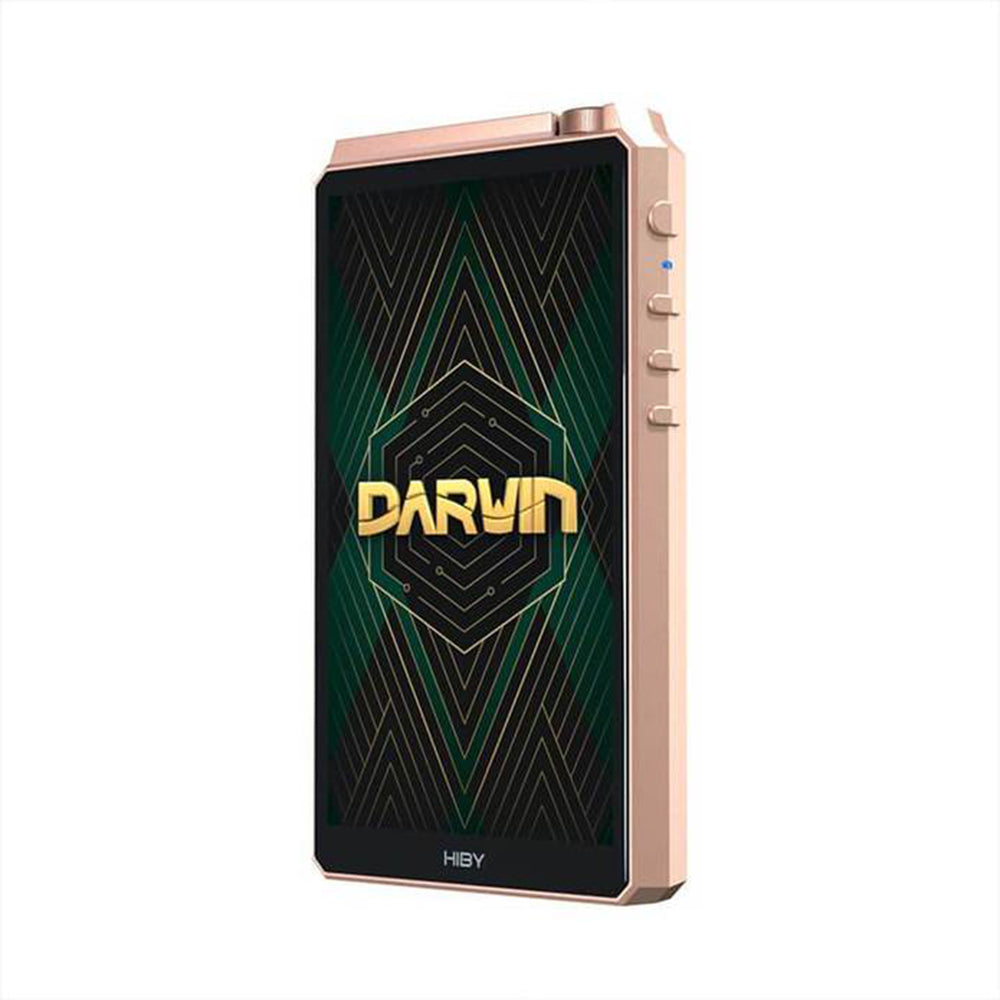

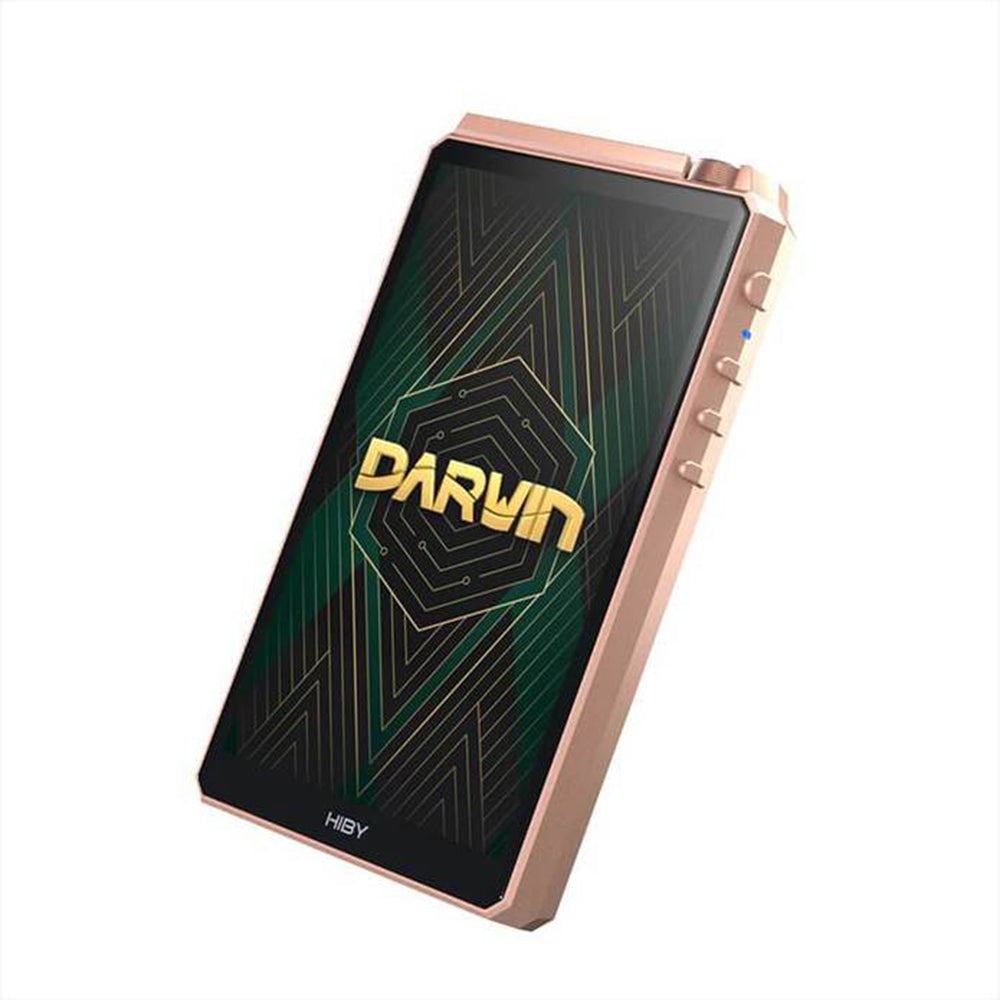

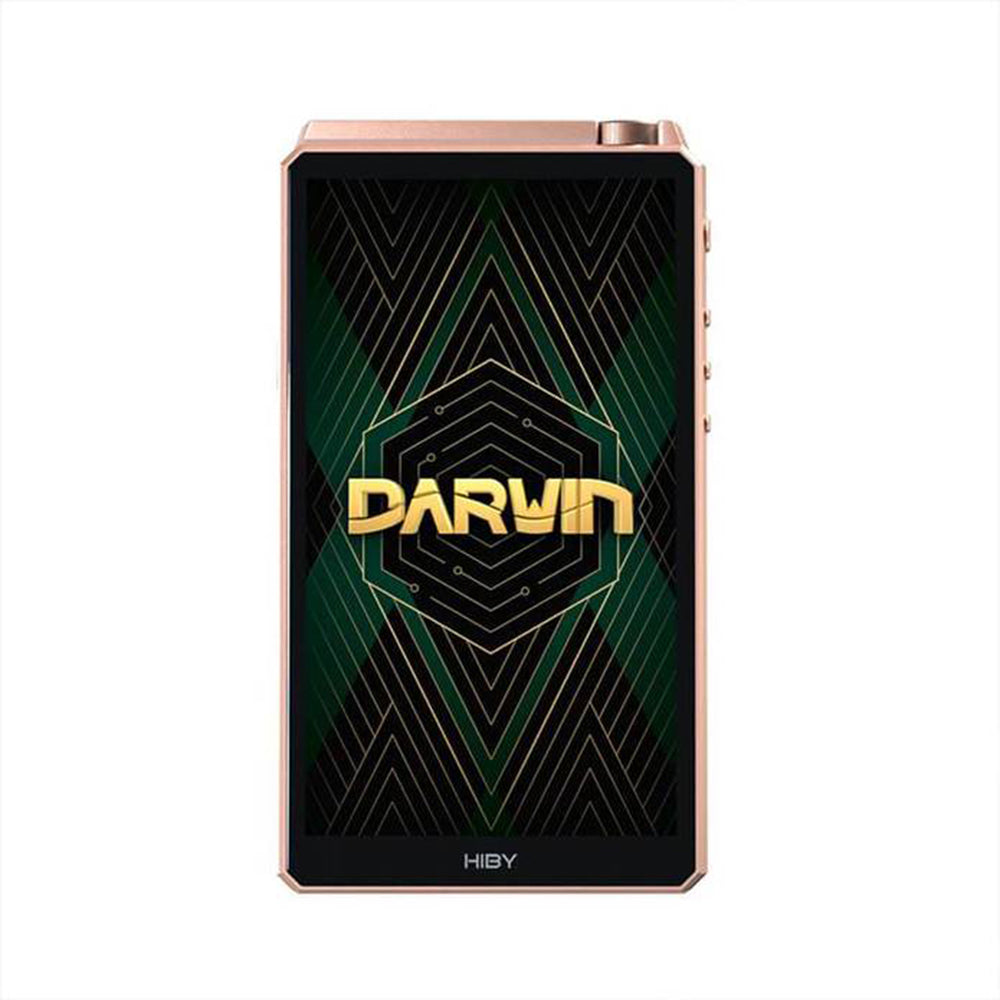

HiBy's Latest In-House Developed Darwin Architecture
HiBy has featured their latest developed Darwin Architecture for the HiBy RS6. It adopts the classic R-2R resistor array technology and combines it with advanced technologies such as Linear FIR Filter, Non-Linear Harmonics Control, Switchable Oversasmpling/NOS filter, and many more. The darwin architecture is fully configuration enabling the user and developers to offer countless possibilities in future upgrades.
Adjustable FIR Filter With Oversampling & NOS Filter
The Darwin Architecture on the HiBY RS6 supports up to 16X oversampling filter and a NOS Filter. This NOS mode bypasses the oversampling and antialiasing providing a raw and direct signal conversion. The oversampling mode removes aliasing artifacts and enables all functions of the Darwin architecture. Oversampling mode also allows personalized adjustments to the sound signature.
Dual Independent Crystal Oscillators
HiBy RS6 features dual independent crystal oscillators clocked at 45.158MHz and 49.152MHz providing proper synchronization between the RS6 components. These ensure the player produces quality output signals with great precision and clarity.
DSD Bypass Function
RS6 features separate LPF filters for both PCM and DSD signals. The DSD-specific LPF filters effectively reduce HF noise caused by the delta-sigma modulation process. It enables full native DSD decoding with the R-2R DAC system.

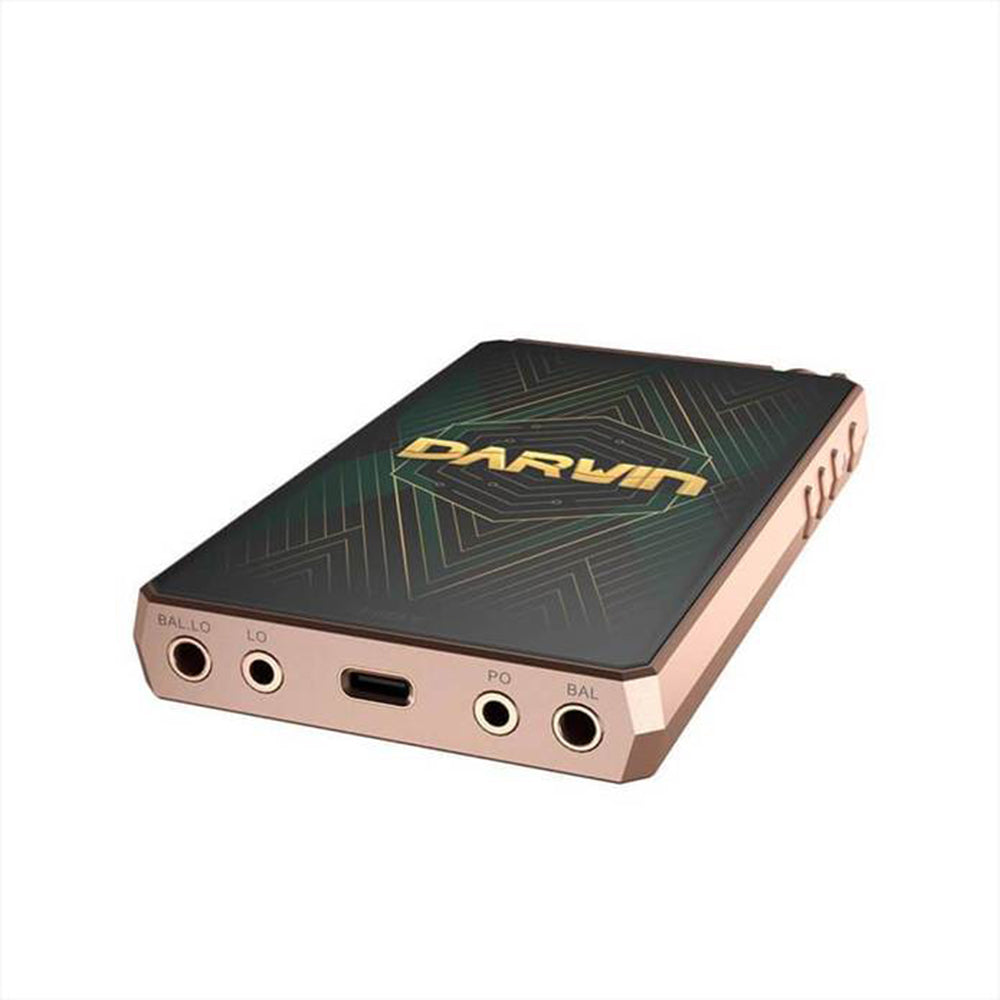

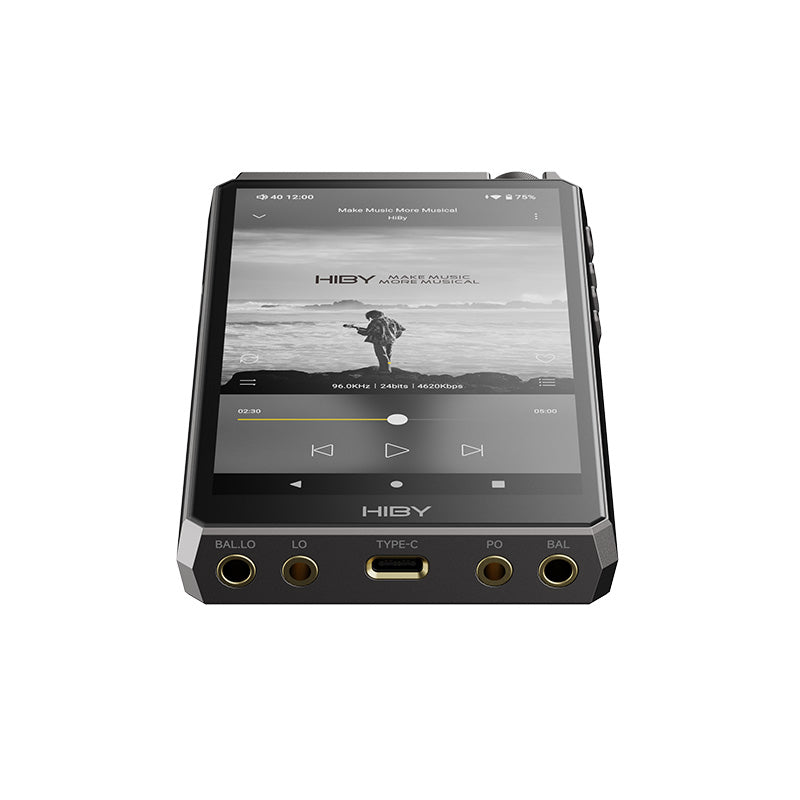

Independent Headphone And Lineout Ports
HiBy RS6 supports both single-ended and balanced output ports. The device actually has separate ports for headphone output and line output. There are both 3.5mm and 4.4mm ports one for line-out and another for headphone output. It has a powerful output rating of up to 690mW@32Ω, easily powering your favorite earphones with ease.
Qualcomm Snapdragon 660 SoC
With the HiBy RS6 you get to experience a super smooth user interface. All thanks to the almighty 8-core Qualcomm Snapdragon 660 SoC. It offers you an outstanding performance with multi-tasking, using multiple applications at once.
Open Android OS
HiBy has loaded HiBY OS on the latest RS6. It is based on open Android 9 offering a wide range of countless applications available for the user.
Technical Details
>Output Voltage: 2.4Vrms.
>Output Power: 180mW@32Ω.
>Crosstalk rejection: 72dB.
>SNR: 114dB.
>DNR: 95dB.
>THD+N: 0.003%.
>Output Impedance: 0.4Ω.
>Output Voltage: 4.7Vrms.
>Output Power: 690mW@32Ω.
>Crosstalk rejection: 98dB.
>SNR: 114dB.
>DNR: 95dB.
>THD+N: 0.003%.
>Output Impedance: 0.8Ω.
- 1 x Hiby RS6
- User Manual
