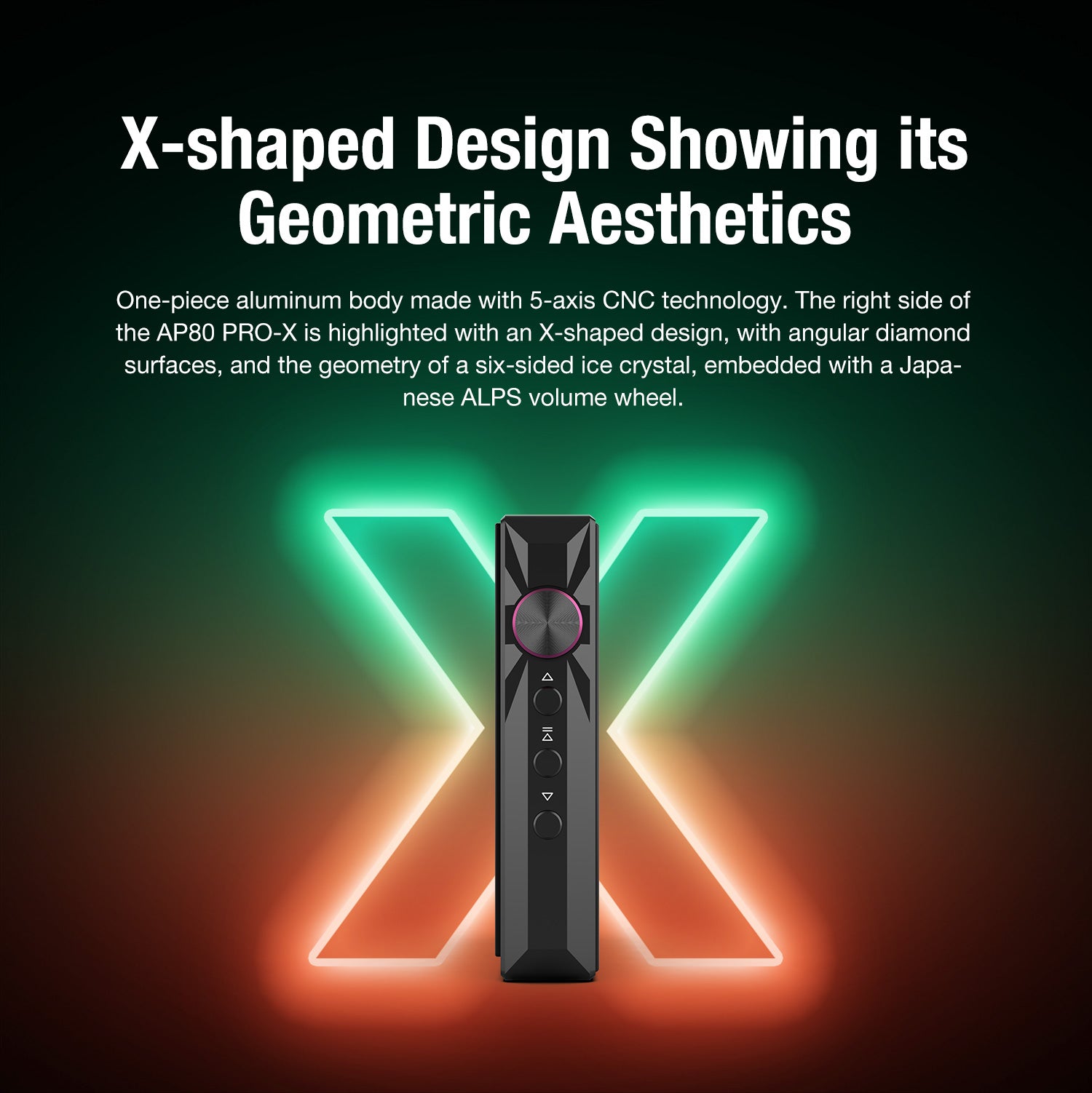

X-shaped Design Showing its Geometric Aesthetics

One-piece aluminum body made with 5-axis CNC technology. The right side of the AP8O PRO-X is highlighted with an X-shaped design, with angular diamond surfaces, and the geometry of a six-sided ice crystal, embedded with a Japanese ALPS volume wheel.

Chip Upgrade

The AP80 Pro-X uses a dual ESS ES9219C DAC, ensuring excellent dynamic range (+121dB) and extremely low distortion (SNR 130dB / THD+N -114dB). These chips also enable support for high resolution streams, up to 32bit 384kHz PCM and DSD256. The AP80 Pro-X also offers an output level of up to 2Vrms with an analog gain control to reduce output noise and achieve a rich and accurate sound reproduction.

MQA 8X Support

The new Hidizs DAP also supports MQA (Master Quality Authenticated) technology, allowing playback of MQA audio files, delivering sound as close as possible to the original recording.

Multi-function Meets Your Usage Scenarios

It includes both single-ended 3.5mm and balanced 2.5mm jacks in its compact body and supports Micro SD cards up to 512GB. Its standby time is up to 40 days (6-8 hrs BAL, 8-11 hrs PC).

Rich Connectivity

It also supports wireless lossless connection such as two-way USB DAC and Bluetooth 4.2, and is compatible with high-quality lossless transmission protocols such as AAC, CSR apt-X, Sony LDAC, HiBy UAT, Apple Music Lossless, FLAC, WAV, ALAC, APE, DSSIFF, SBC, etc., and possesses Hi-Res Audio and Hi-Res Audio Wireless dual-certifications.

Technical Details

Inputs
Bluetooth 4.2
1x Micro SD Slot
USB-C
Outputs
Bluetooth 4.2
USB-C
1x Single-ended Jack 3.5mm
1x Balanced Jack 2.5mm
CPU
Ingenic X1000
DAC Chip
2x ES9219C
Pedometer sensor
KX126
Touchscreen
Samsung 2.45" (480x360) IPS HD
FPGA
HBC3000
Potentiometer
ALPS
OS
HiBy OS 3.0
Supported Bluetooth codecs
aptX, LDAC, UAT
Supported sampling rates
PCM up to 32bit 384kHz
DSD up to DSD256
MQA
Battery
800mAh 3.7V Li-Polymer
Antialiasing filters
8
MSEB feature
10
Supply voltage
5VDC 2A
Dimensions
61 x 54.5 x 13.8mm
Inside the Box
  • 1 x HIDIZS AP80 PRO X
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The HIDIZS AP80 PRO X Comes with a 1 year warranty on the Digital Audio Players only. Warranty doesn't apply to the included accessories.
