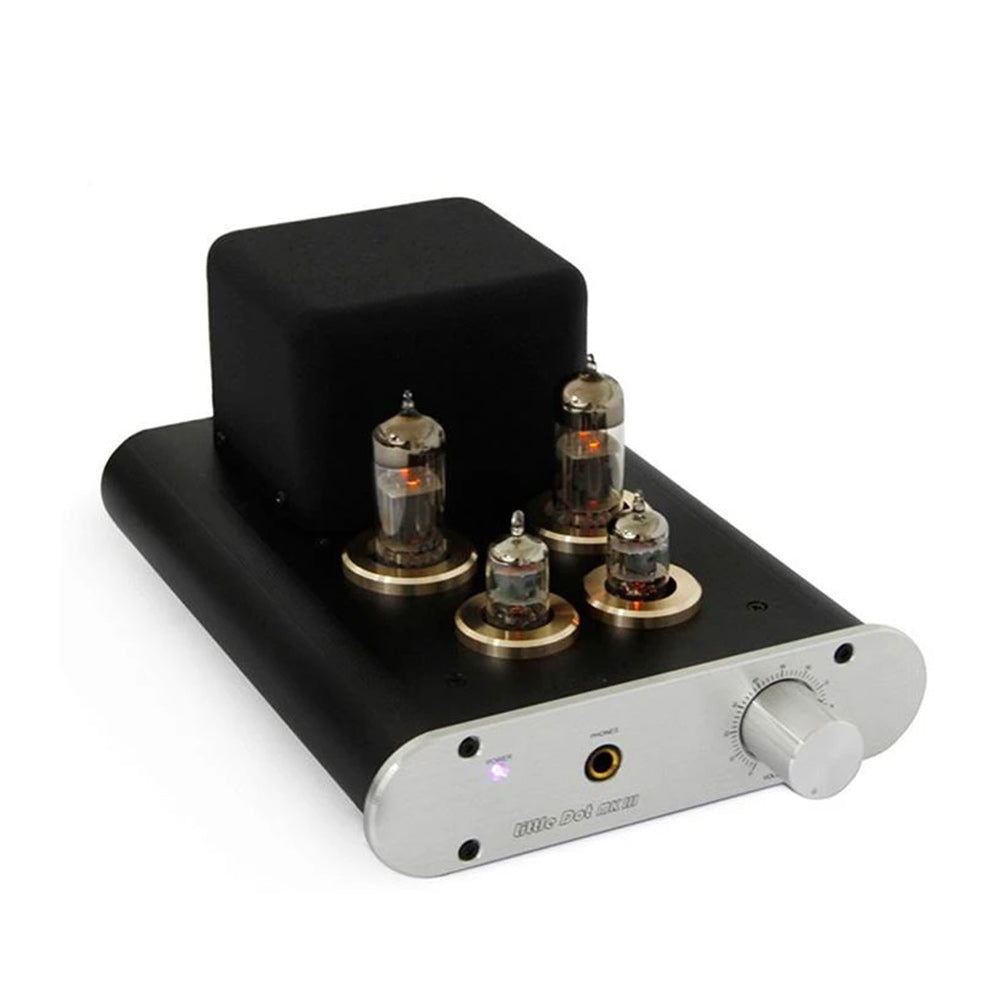

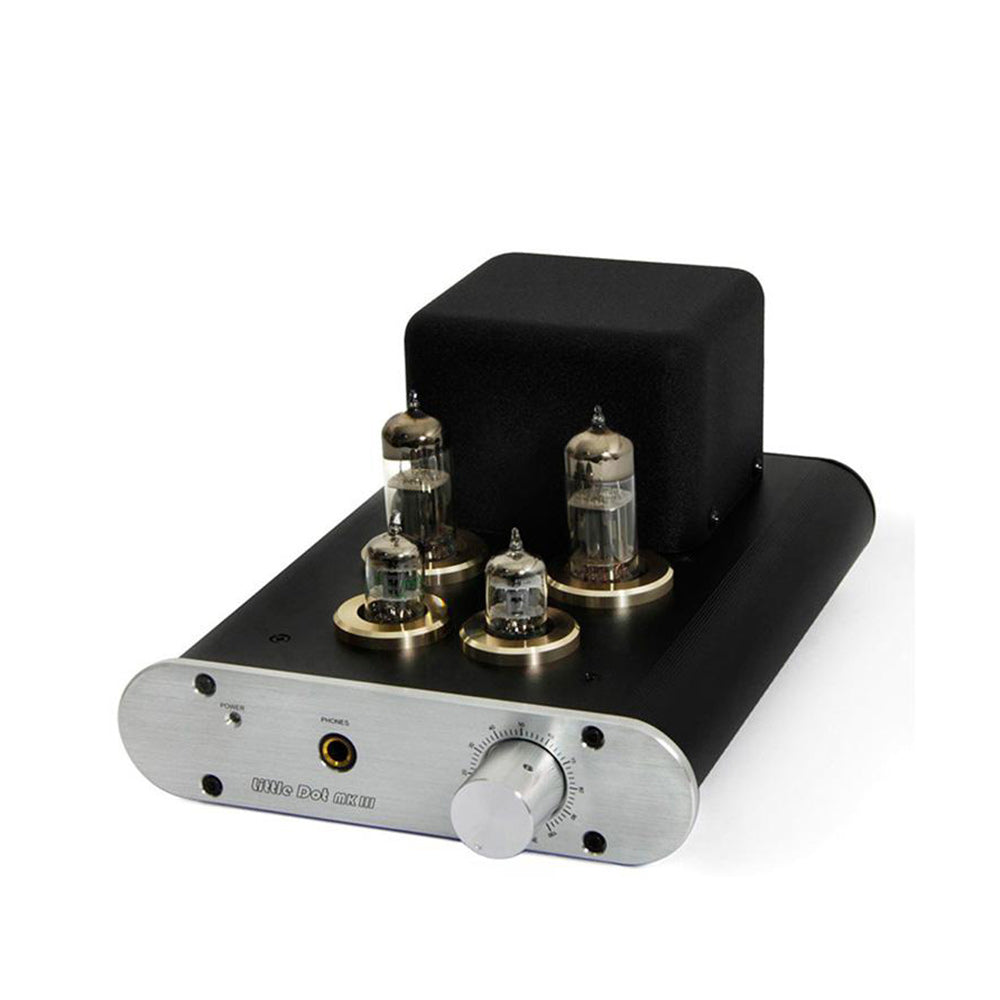

Advanced choice of tube amplifier

Little Dot MKIII is a long-lasting and cost-effective model in the Little Dot series of amps. It is a classical model of SEEP circuit architecture and an advanced choice for feeling the beauty of tube amps.

Carefully Selected Audiophile Components

MKIII selects a series of high-quality well-known components, coupling capacitors from Germany ERO and tuning capacitors from WIMA, ALPS-16 Potentiometer from Japan, plus filter capacitors of RUBYCON and output capacitors of CHIEMI-COM, guaranteeing three-frequency - the balance of the high, medium and bass levels is orderly, bringing you a top-level experience.

High-Profile Front-tube&Back-tube

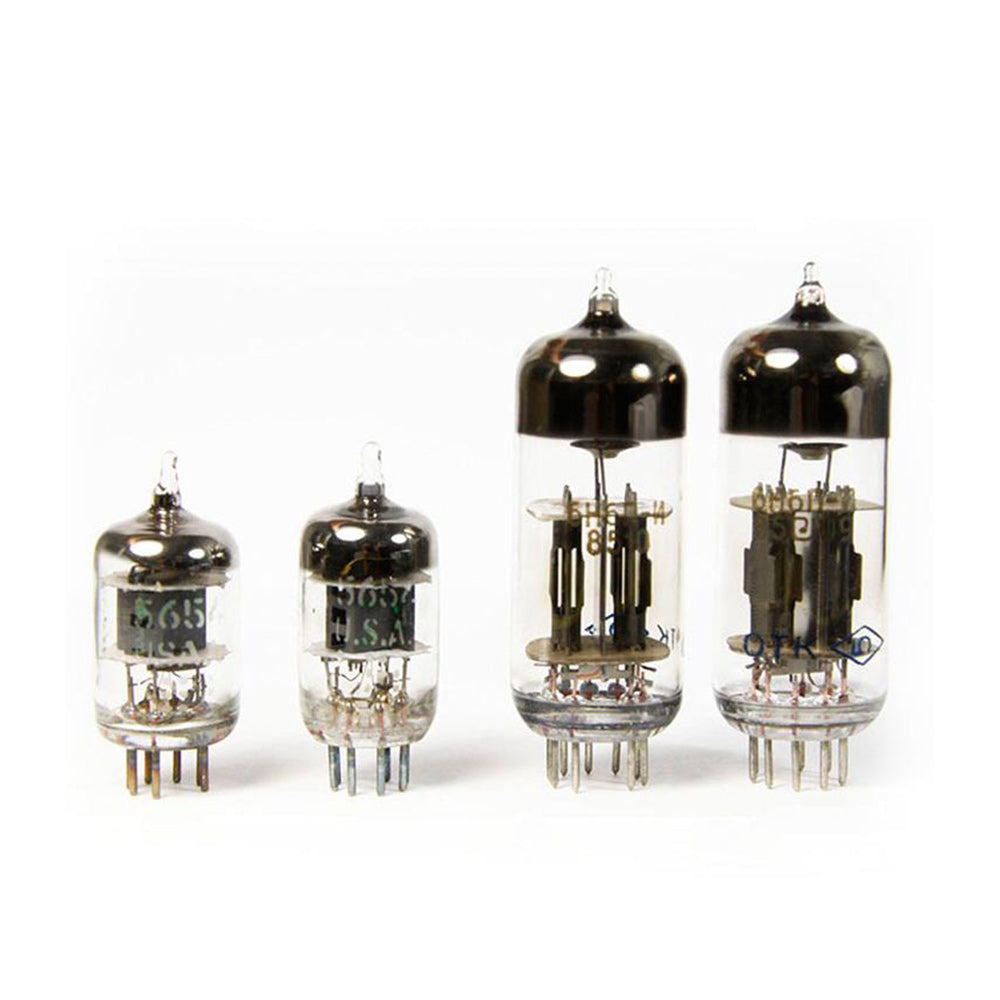

The front tube adopts the American GE5654, its sound is sweet and durable, and it is known as the "American Poisonous Voice" in the circle.The back tube is Russia's 6H6π, which has extremely low internal resistance, can provide large current, and large voltage swing.

Selectable Output Mode

MKIII has two output modes. One the one hand, it can be used as a headphone amplifier when connecting to a 6.35 headphone jack. On the other hand, it can also be connected to an RCA and used as a pre-amplifier, allowing you to make better use of your equipment.

Technical Details

Parameters
SEPP (Singled-ended Push Pull) OTL in Class-A

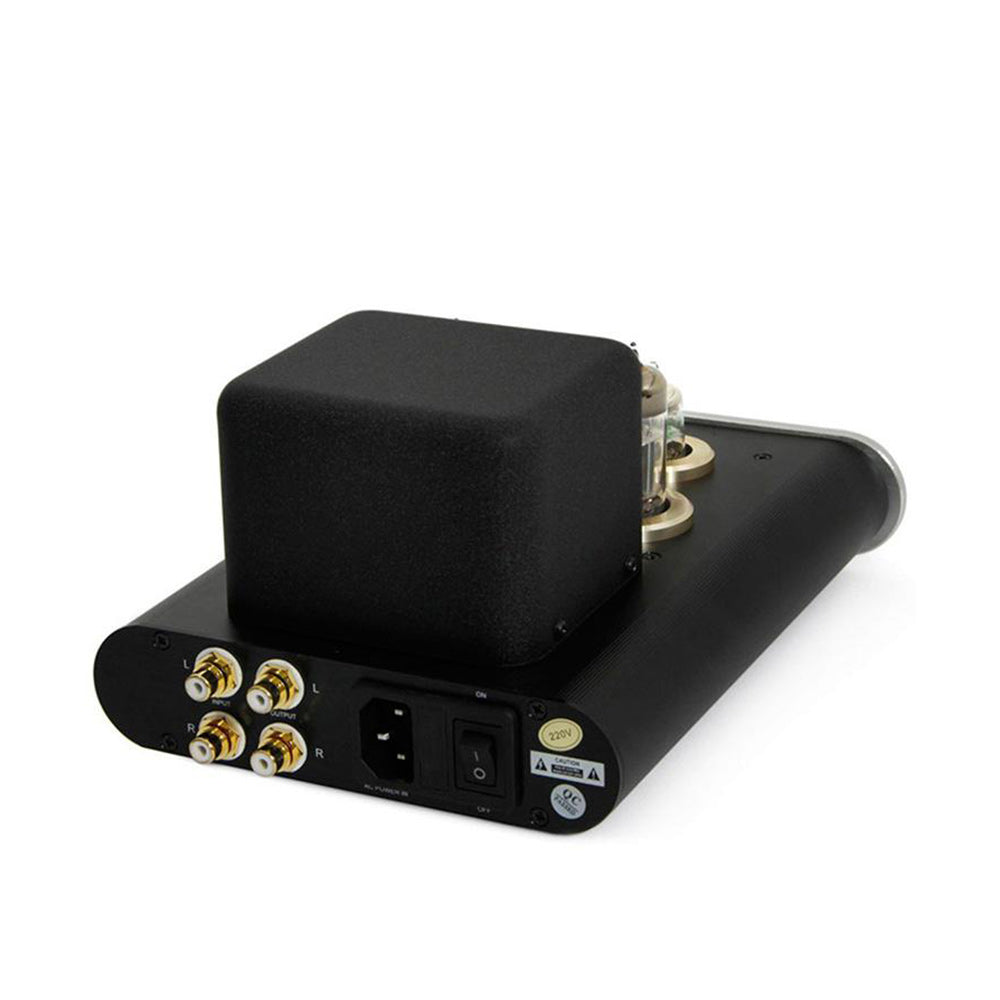

Input terminal
RCA
Input
RCA
Output terminal
A.6.35 Headphone socket (for headphone amplifier)
B. RCA (used for pre-amplification) 20HZ-50KHZ (300Ω-1db)
Frequency response
12HZ - 100KHz (-1dB)
THD+N
0.15% (80mW into 300 ohms)
Output Power
A.350 mw(600/300Ω)
B.300mw(120Ω)
C.100 mw (32Ω)
Output impedance
32Ω-600Ω (headphone amplification part)
size
270*175*123mm
Weight
3 Kg
Power Consumption
30W(228V*0.130A)

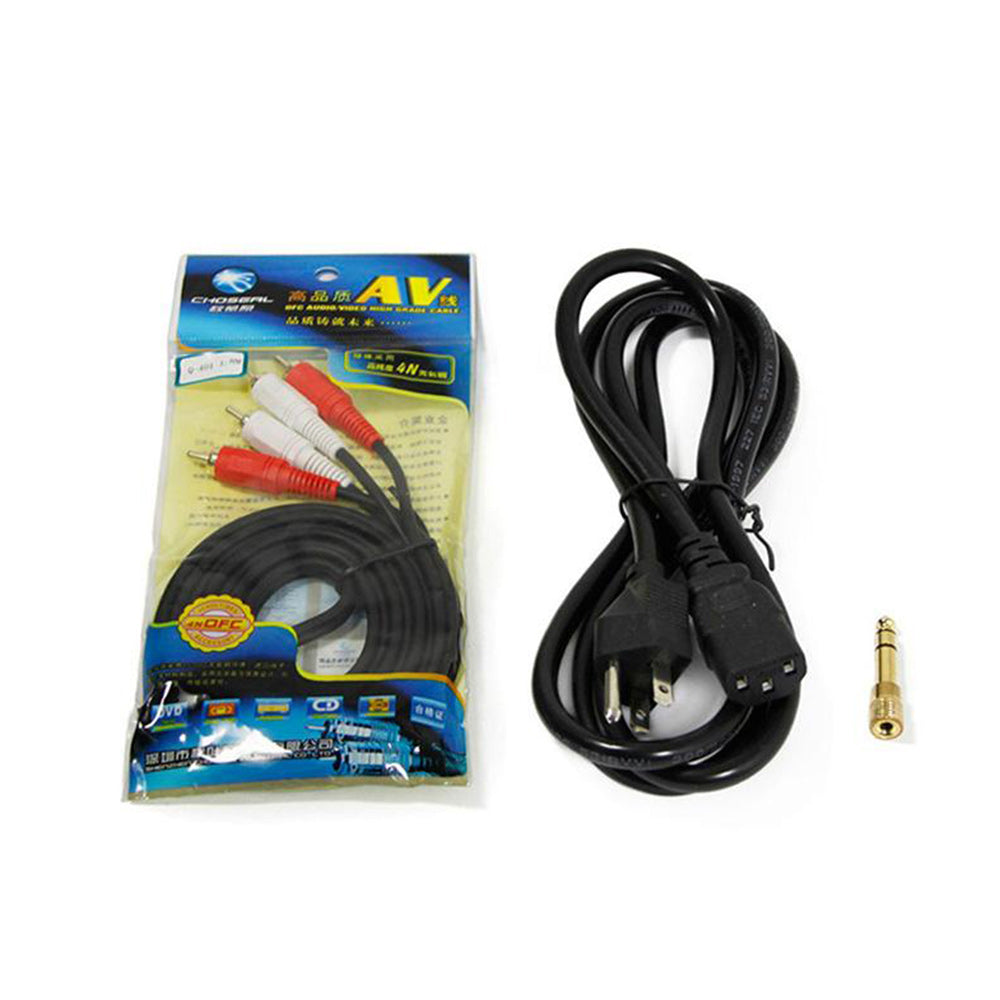

Inside the Box
  • 1 x Little Dot MKIII
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The Little Dot MKIII Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 1 week. No cancellation of orders once ordered.

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
