High-Performance Dual CS43131 DAC Chips

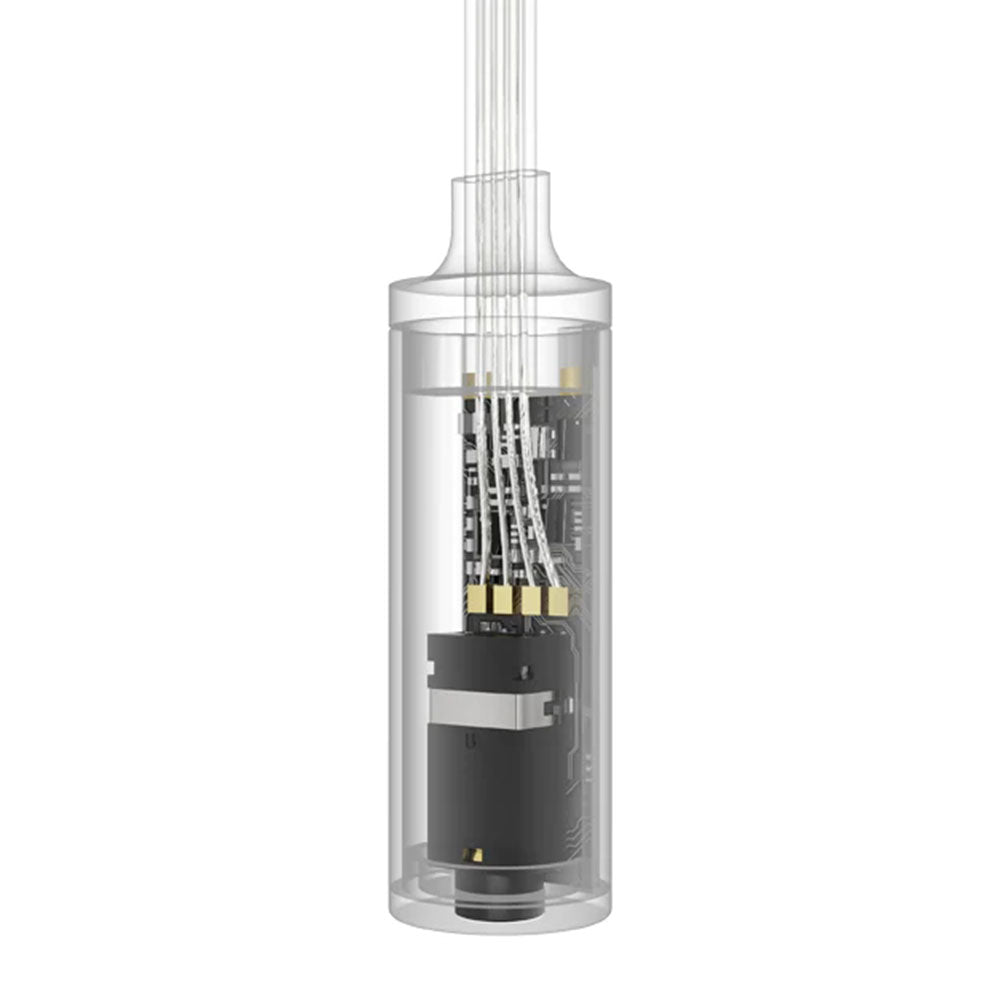

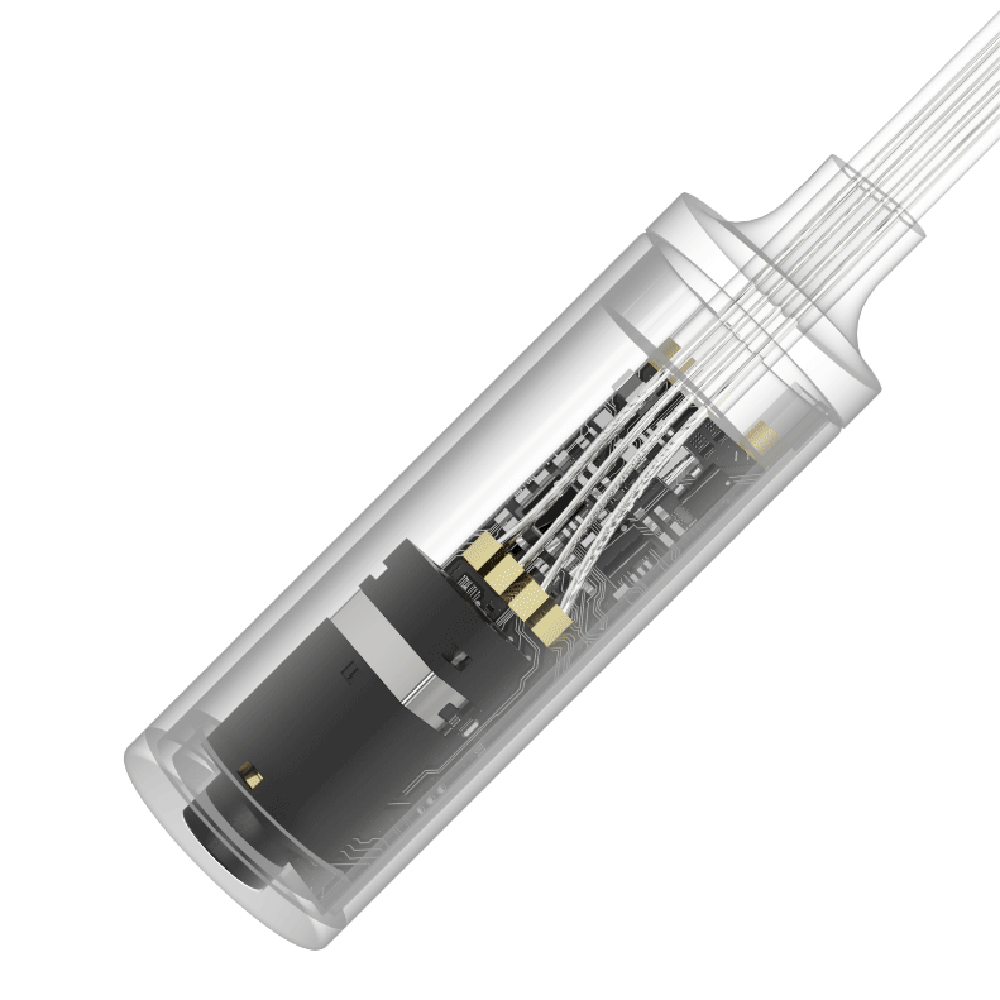

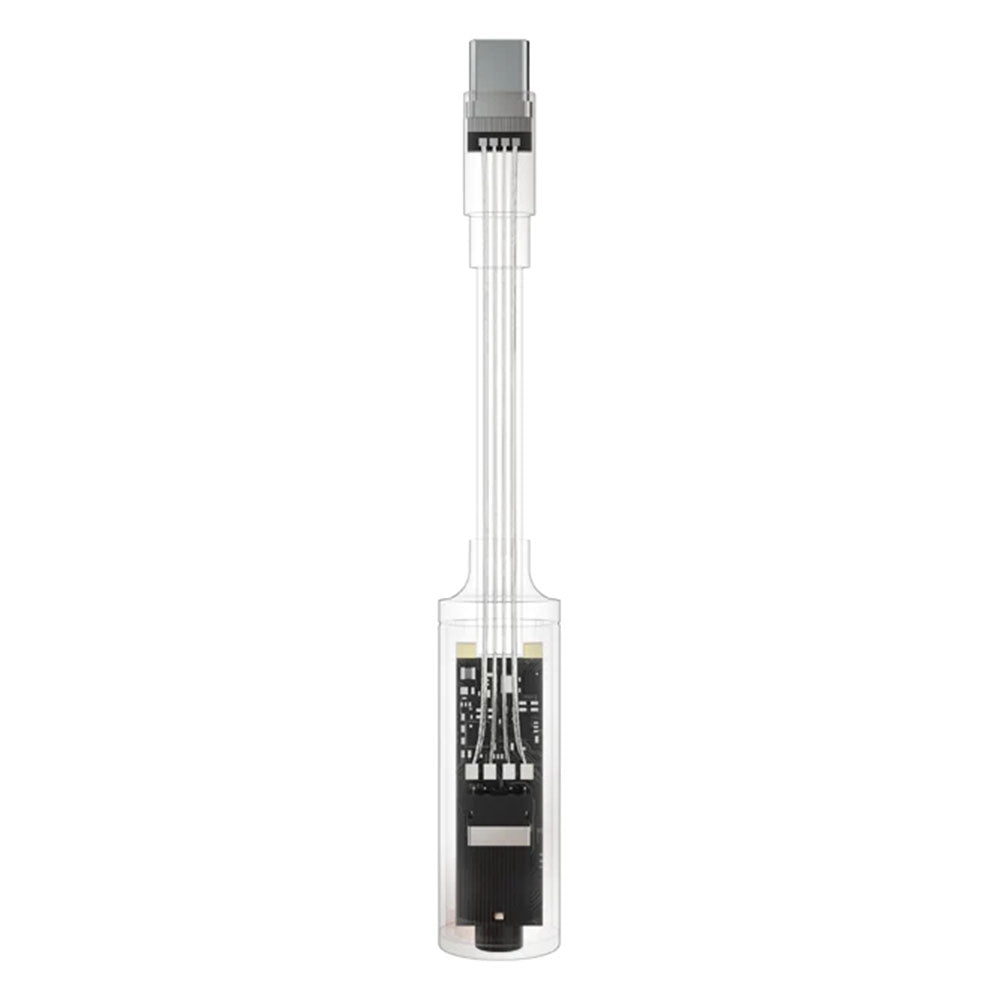

Moondrop DAWN adopts a fully balanced audio circuitry with a Dual DAC chipset. It houses two CS43131 high-performance DAC chips that perform four-channel balanced signal decoding. Moondrop DAWN brings superb performance achieving a high Signal To Noise Ratio, and ultra-low distortion ratings.

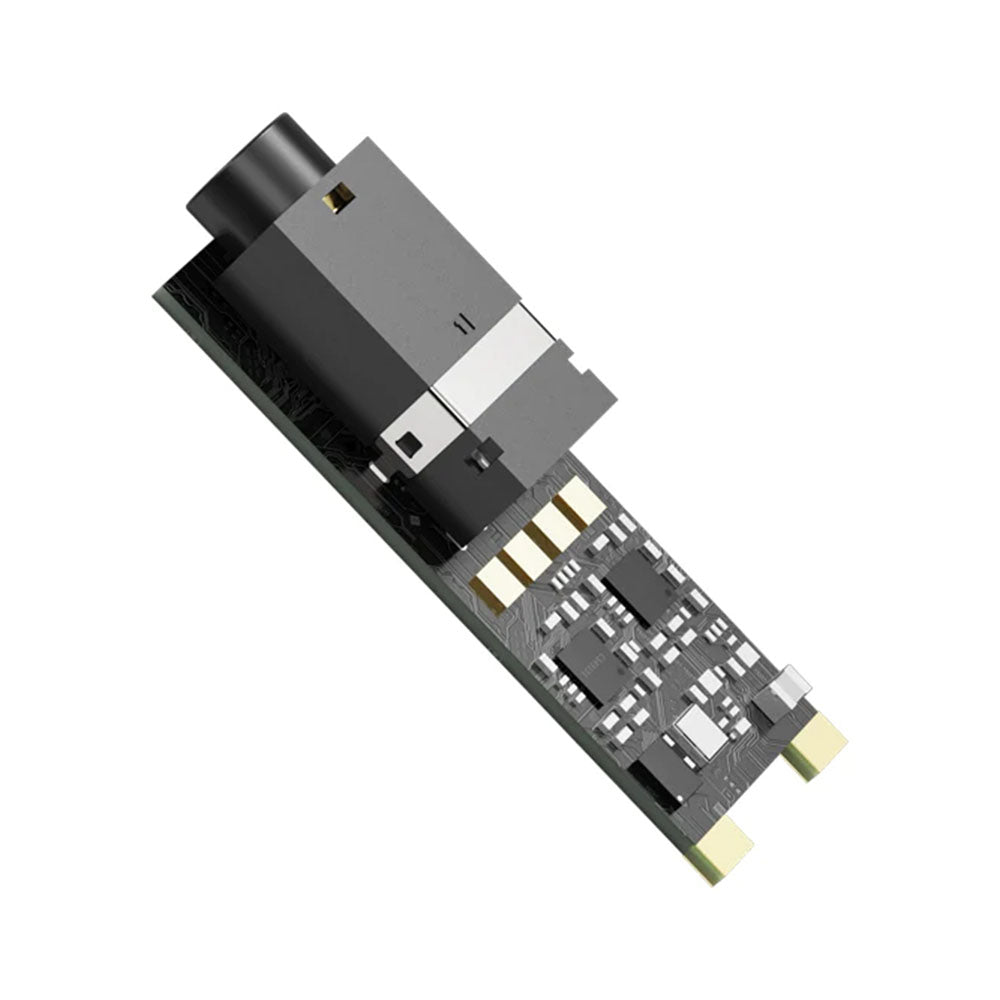

4.4mm True-Balanced Headphone Output

Designed with a 4.4mm fully-balanced headphone output port, the Moondrop DAWN packs a powerful performance within itself. It outputs a maximum line-out power of up to 4Vrms and about 230mW undistorted power @ 32Ω of load. With such a powerful output, it is ideal for most IEMs and some low-power requiring headphones out there.

Wide Compatibility

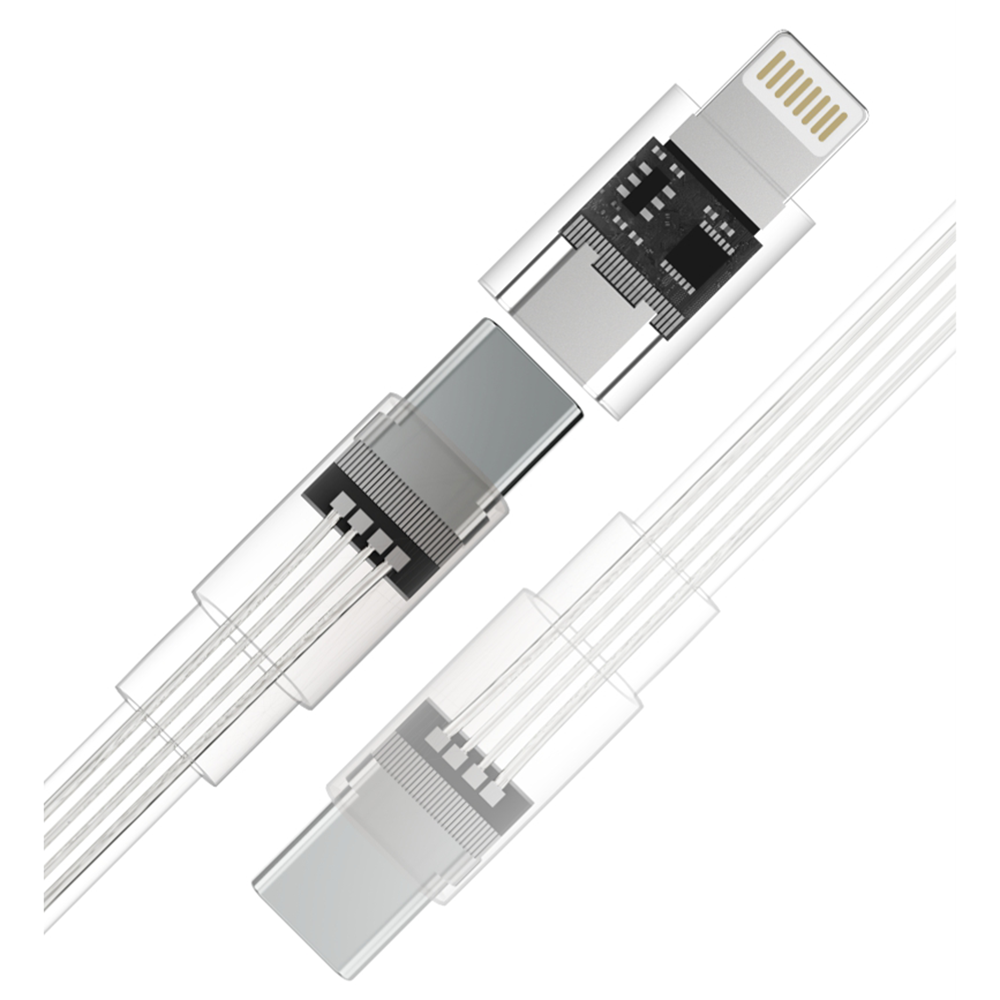

Moondrop DAWN adopts a USB Type-C interface. It is fully compatible with most smartphones, Windows/Mac PCs, and also with apple devices with appropriate adapters.

Dual Independent Crystal Oscillators

Moondrop DAWN comes equipped with dual independent crystal oscillators that ensure high-quality digital signal transmission with ultra-low signal jitter. Don’t go on the compact size of the Moondrop DAWN, it packs a truly high-resolution sound experience in its compact form factor.

Clean Sound Performance With Ultra-Low Distortion and Super Clean Background

Moondrop with its expertise in designing HiFi audio products has designed the latest DAWN Portable USB DAC/AMP with a fully balanced circuit and high-level hardware configuration. This greatly improves the sound performance of the device with a superb dynamic range of 132dB. The output signal has an impressively low background noise floor of just 1.3uVrms, presenting the users a super clean performance.

Technical Details

Weight
13.7g
Size
120mm X 16.4mm
Earphone Jack
4.4mm balanced port
Frequency response range
7hz-90Khz(-3dB)
Port
USB Type-C
Background noise
1.3uV(AES17 20Khz)
THD+N
0.00017% (AES17 20kHz, without load)
SNR
132dB(AES17 20Khz, A-weight)
Firmware upgrade
Support (Connect PC)
Gain
High/Low (Software switching)
Line out
4Vrms(High), 2Vrms(Low)
Maximum output power
230mW@32Ω, 54mW@300Ω
Inside the Box
  • 1 x Moondrop Dawn 4.4mm
  • User Manual
