MUSICIAN Aquarius R2R DAC
High-end high-performance DAC
- Proprietary R2R and DSD Architecture
- Adopt 0.005% precision resistance
- Constant temperature twin crystal oscillator design
- Low distortion, Low Noise Power Supply
MUSICIAN Aquarius R2R DAC

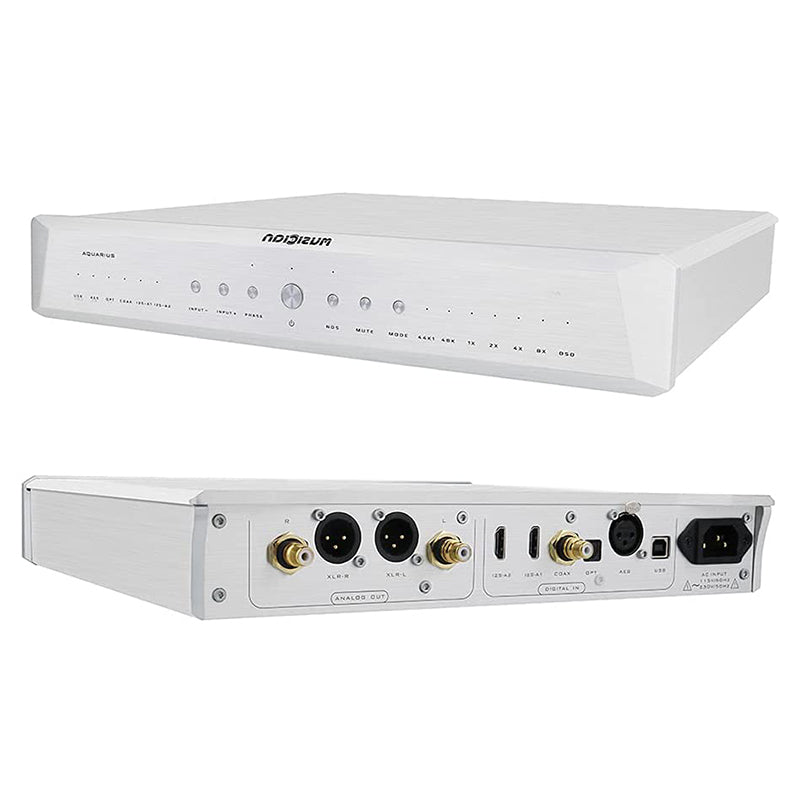

Classic two-tone design
The body material is made of metal aluminum by CNC high-precision processing, with a comfortable grip and injecting modern beauty into the industrial design.
R2R Array DAC True Balance
Each channel is equipped with an independent high-speed FPGA to control the decoding with 4 sets of 0.005% R-2R network. The Linear error is small, the decoding speed is high, and the digital noise is Low. It not only ensures low distortion of the audio signal but also ensures very low background noise music.
Self-Developed Technology
Make the sound more outstanding Using self-developed and designed digital filters, working in 16 X Over Sampling mode, each Level of filter has a 32-bit input resolution, which can greatly increase dynamic contrast, analysis, and more natural and delicate timbre, etc.
Tailored for the sound
Using the main control ALTERA high-efficiency chip, the audio signal transmission is not distorted and the sound quality can reach the HIFI standard hardware. The simple design makes the signal circuit reach a more ideal state, and the sense of hearing is clearer and more balanced than the traditional design.
Warm Tips
The burn-in time of Aquarius DACs is one week: Standby or Powered on 24/7 (300 hours), you will get the best performance after the enough aging hours.
Connecting RCA or XLR output simultaneously is not recommended, it will degrade the sound quality because they are shared. Even if the downstream equipment is on/off, the output signal will still be transmitted to the input stage of the downstream device.
If possible, please use the XLR output. As a true balanced DAC, the XLR output of Draco will be more superior.
Technical Details
DSD1024 On USB & I2S Input
1536kHz On USB & I2S Input
- 1 x MUSICIAN Aquarius R2R DAC
- User Manual
