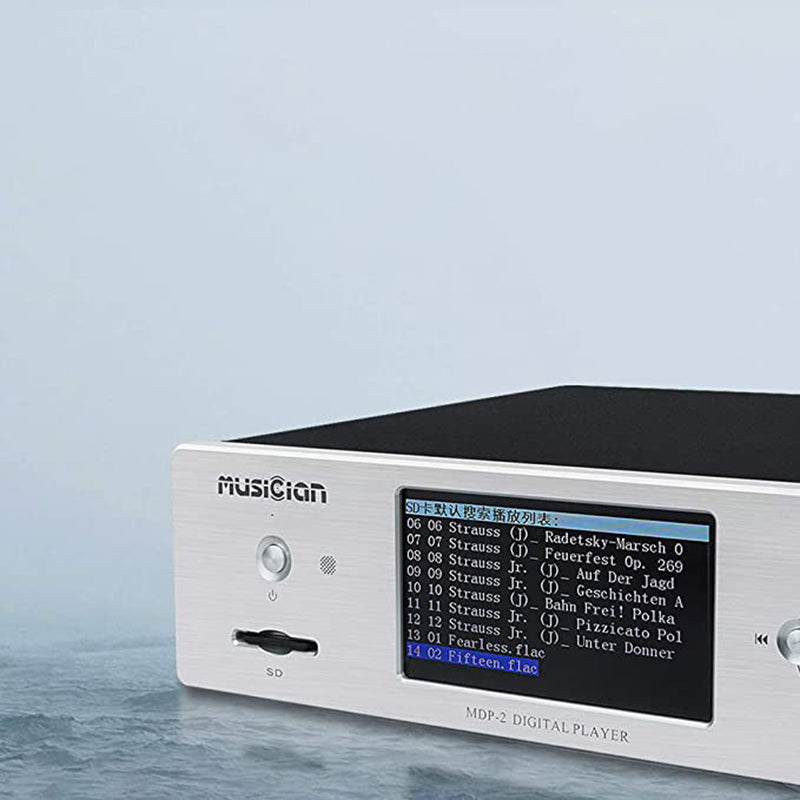

4.3 Inch LCD Display
MDP-2 has a 4.3-inch large held of view, LCD liquid crystal screen, the details are significantly improved and there is a better experience.

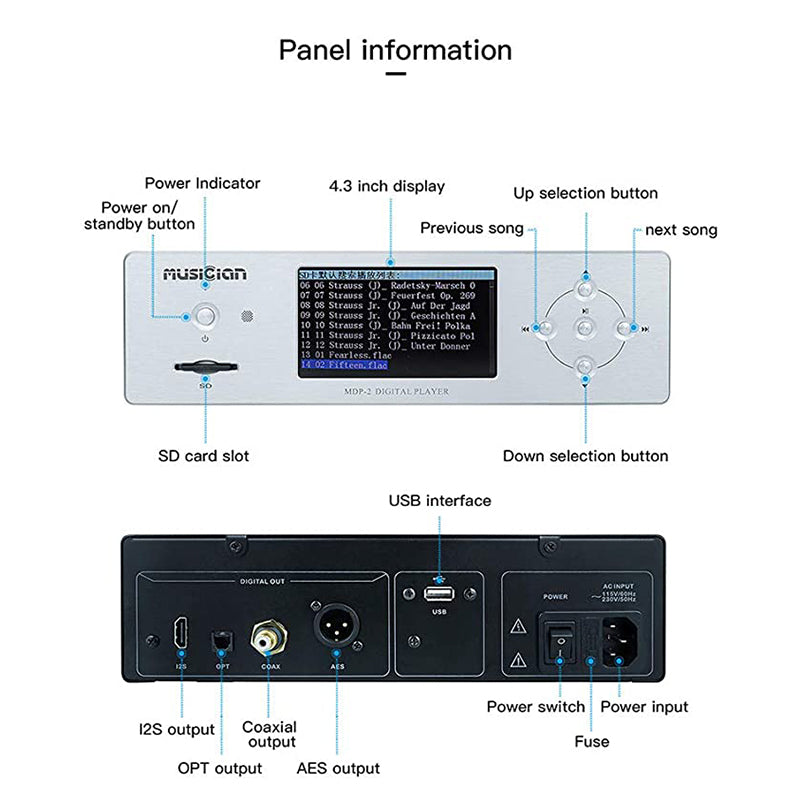

Function button
Power on/Standby button, previous song, next song pause/ play, up/down selection button. Support infrared remote control function.

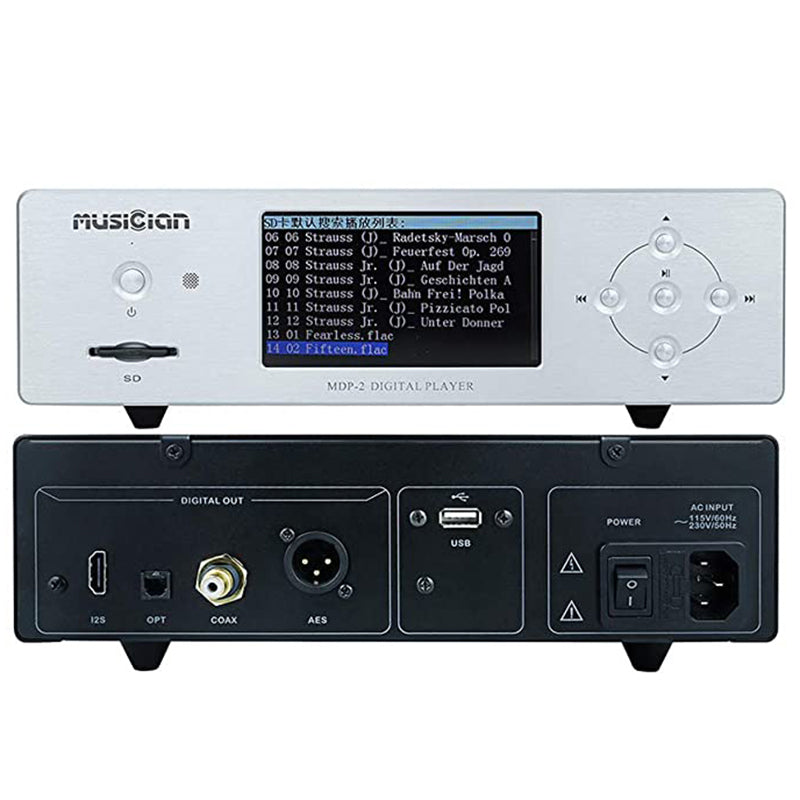

Digital signal output
DP-2 Has HDMI balanced 12S output*1, optical output * 1, coaxial output*1, AES digital audio*1. Support play SD card and U disk.
Power consumption
MDP-2 Power input adopts a three-in-one power tailstock, AC115V / AC230V switching. Machine power consumption 10W (MAX).

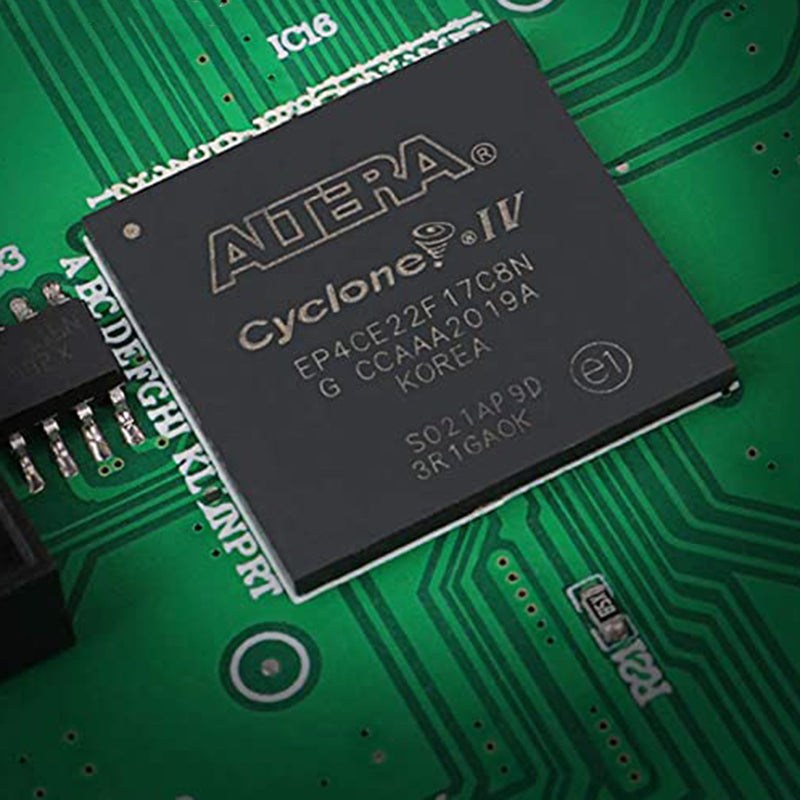

ALTERA FPGA
FPGA ( Field Programmable Gate Array ) uses ALTERA Cyclone IV chip, which has the characteristics of low power consumption, high performance, and high bandwidth memory.

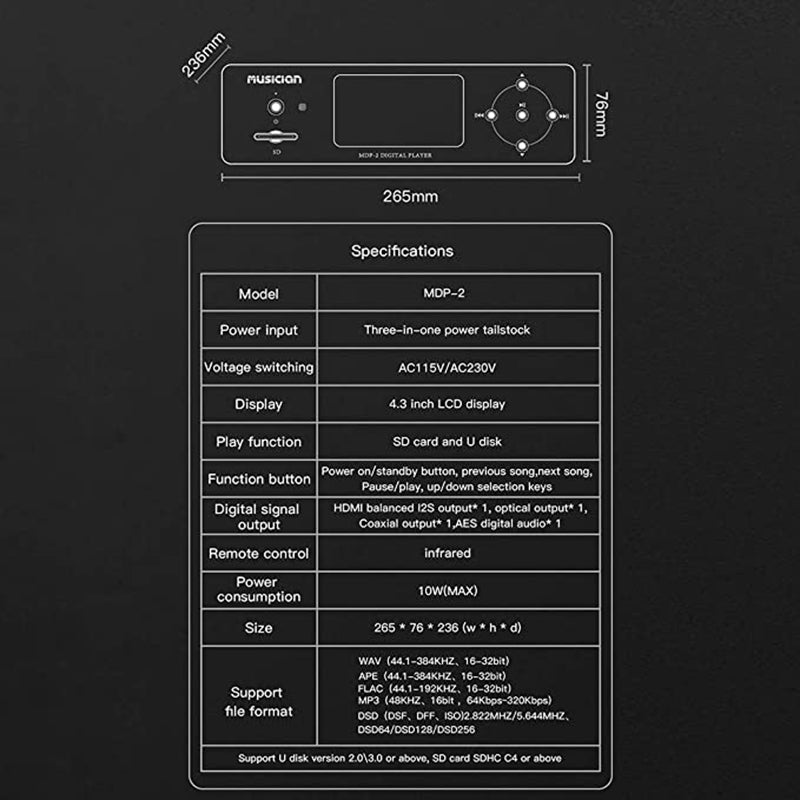

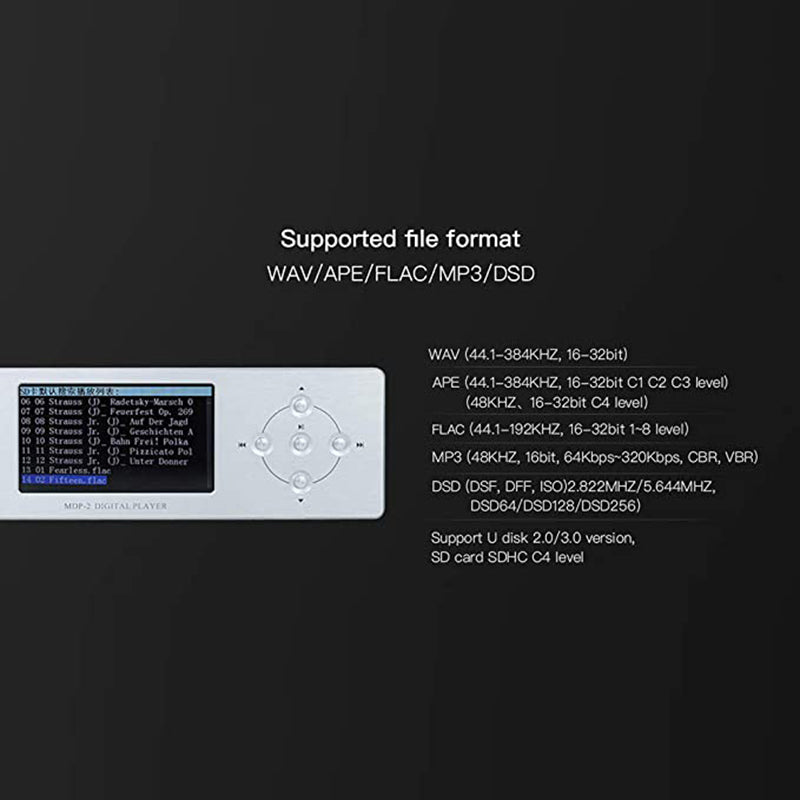

Technical Details
APE(44.1-384KHZ, 16-32bit)
FLAC*44.1-192KHZ, 16-32bit)
MP3(48khz, 16bit, 64Kbps-320Kbps)
DSD(DSF, DFF, ISO) 2.822MHZ / 5.644MHZ, DSD64/DSD128/DSD256
- 1 x MUSICIAN MDP-2
- User Manual
