Flagship ESS ES9038Pro DAC

Analog section of EM7 is designed around the flagship ESS DAC ES9038Pro, with its eight channels feeding a fully balanced amplifier, build on our proven OP+BUF architecture. This amplifier circuit was newly designed especially for EM7, matching the highly accurate and clean sound of the DAC, while providing strong power output for the most demanding headphones. Resulting in our best measuring and most powerful desktop DAC/AMP, offering up to 7W @ 32 Ohm // 1W @ 300 Ohm.

New Closed Android System

On the Streamer side, EM7 is running our closed and customized system, now build upon Android 10. Giving you access to a range of streaming services, local playback from MicroSD card or USB drives, DLNA, Airplay, NAS and even simple Bluetooth streaming. All run through our Android Global Lossless Output (AGLO) system, assuring the ideal audio performance from Android system. EM7 also switches to a faster Qualcomm Snapdragon 665 CPU, making for a significantly swifter system.

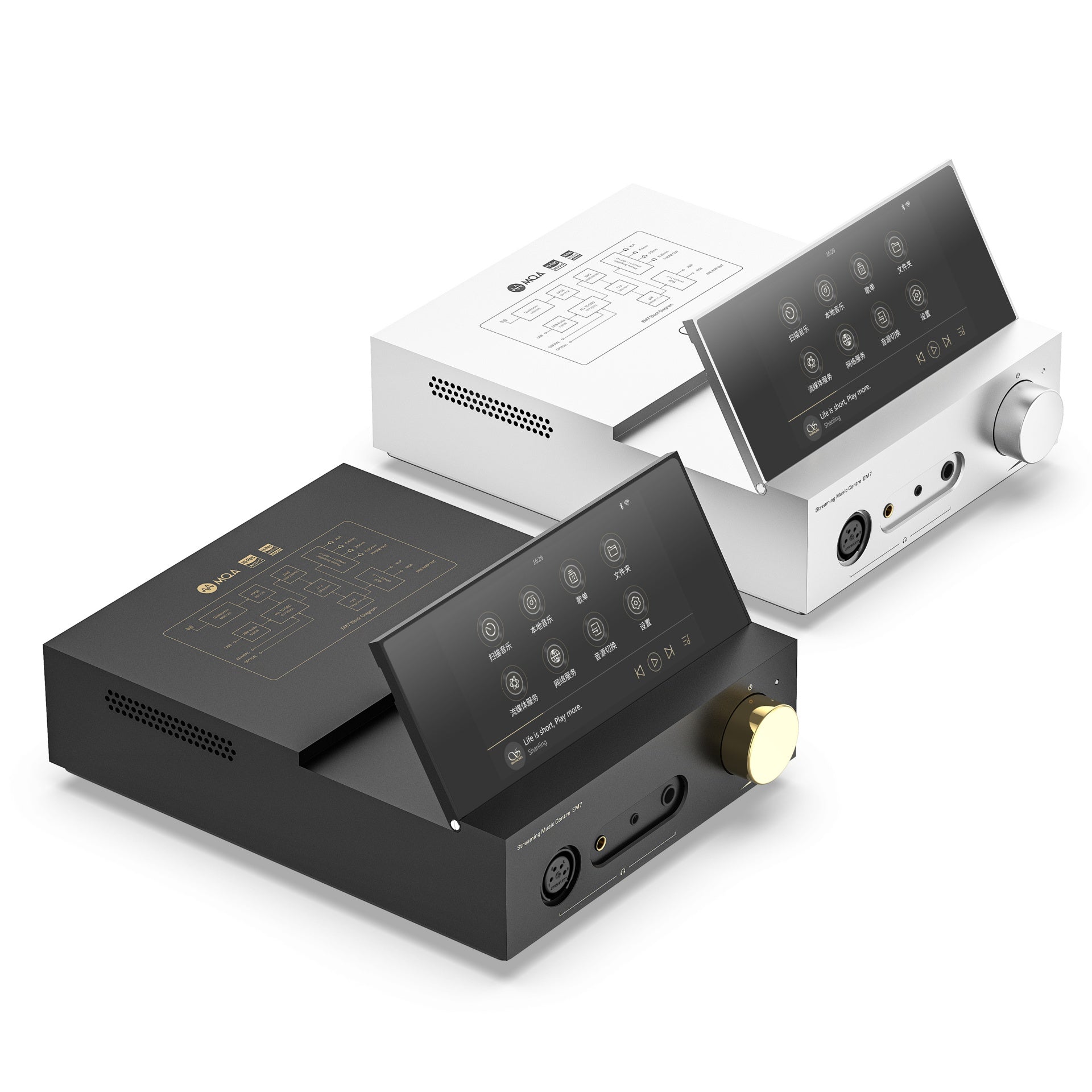

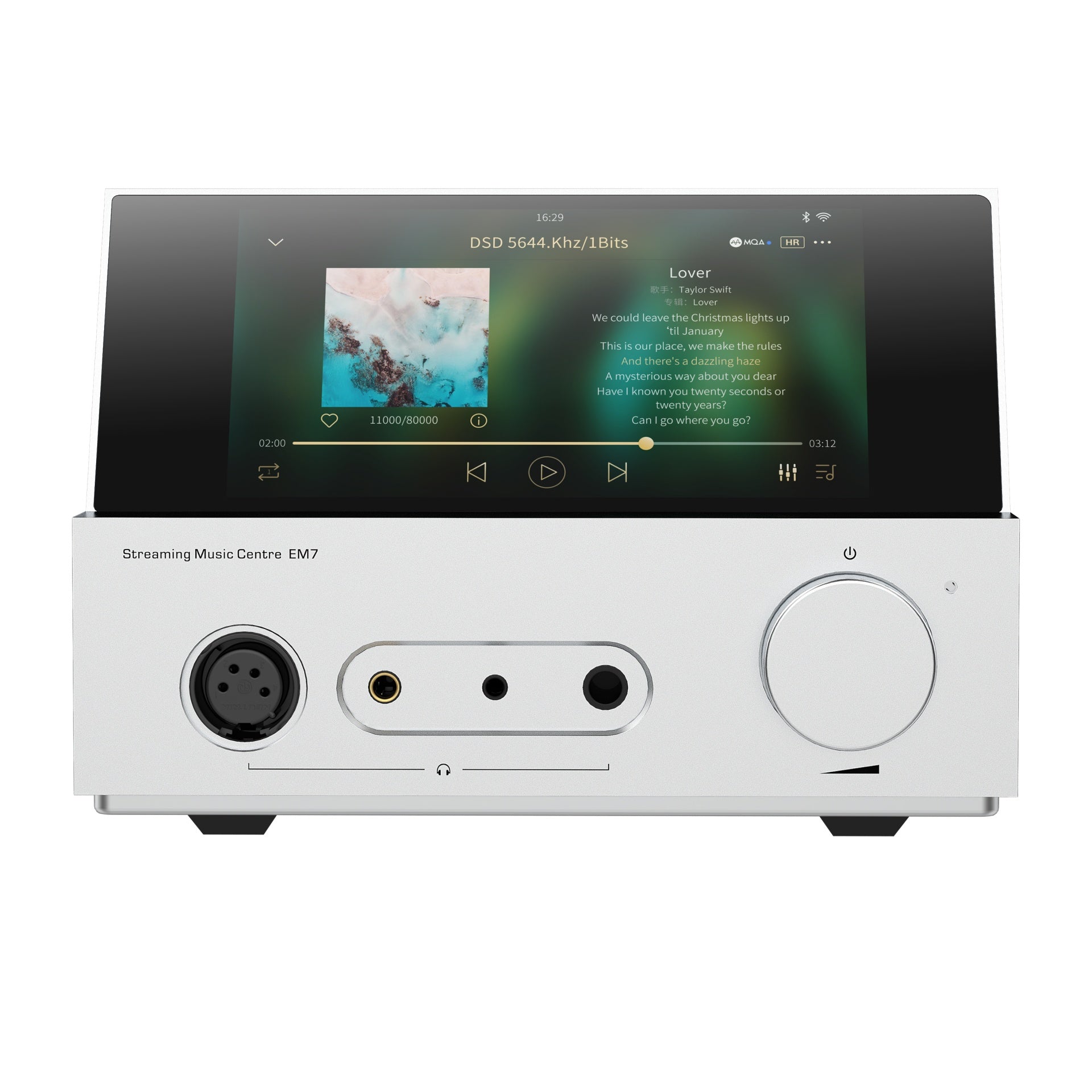

5.8-Inch Touch Tiltable Display

The most obvious part of the EM7 is its new tiltable display. Bigger 5.8-inch touch screen with 1080p resolution can be angled up to 60 degrees, allowing for an easy control no matter if it’s placed on a desk or on top of a Hi-Fi rack. And of course, there is always our Eddict player app, serving as a remote control for the local playback or as a complete screen mirroring, giving you access to all sections of EM7 directly from your phone.

Desktop Streamer On a Whole New Level Of Quality

Mixing both a streamer and a Hi-Fi DAC/AMP into one device can be tricky, but we took steps to limit any unwanted interferences. DAC and amplifier are isolated from the Android section and we are utilizing an independent power supply for each, with a low-noise Noratel toroidal transformer for the Analog section and a high-quality switching power supply for the Android section.

Versatile Device

EM7 is a truly versatile device, smoothly switching between its role as a high-end source for headphones, to a pure DAC with an optional pre-amplifier, to a digital source for your DACs with Coaxial, Optical or USB inputs. If you wish, you can even use it as a source for your Bluetooth headphones or speakers.

Technical Details

Dimensions
252 x 188 x 67.5 mm
Weight
3.2kg
Display
5.8-inch 1920*1080 IPS Touch screen
System
Based on Android 10, Closed and Customized
Hi-Res Support
Up to PCM 32bit / 768 kHz & DSD512
Bluetooth
Version 5.0, serving as both Receiver and transmitter
BT codec support
Receiver LDAC & SBC // Transmitter LDAC, aptX-HD, aptX, SBC
Wi-Fi
Dual band 2.4G & 5G
DAC
ESS ES9038Pro
Analog Section
OPA1611 based I/V conversion, OPA2211 based LPF, OPA2211+BD139+BD140 based Amplifier

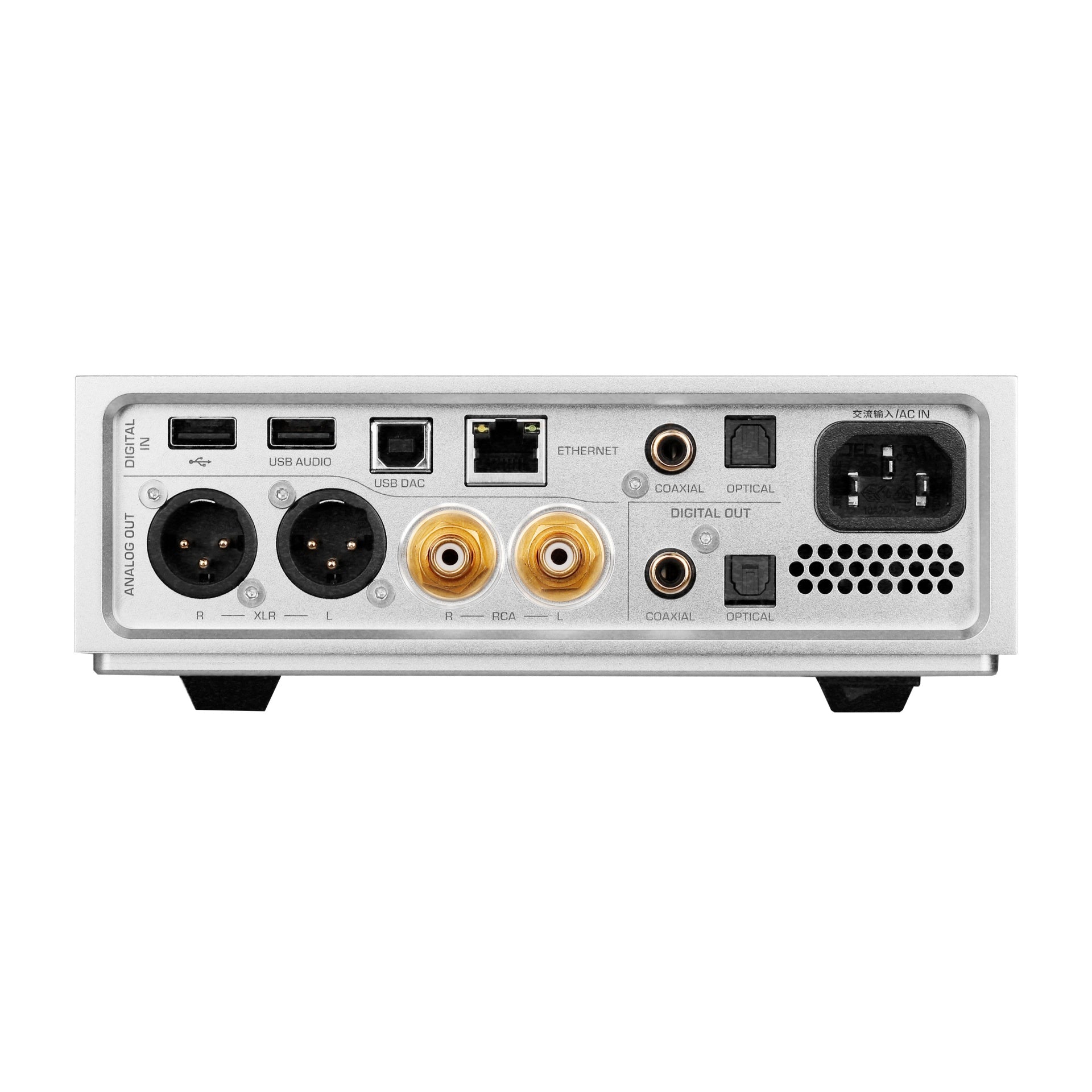

Analog outputs
4.4mm & XLR balanced, 3.5mm & 6.35mm Single-ended, with pair of RCA and XLR
Digital outputs
SPDIF Coaxial & Optical, USB Audio Output
Digital inputs
USB-B, Coaxial SPDIF & Optical, 2x USB port for USB drives, MicroSD card slot
Output power Single Ended
Up to 8.5V / 2.3W @ 32 Ohm // 9V / 270mW @ 300 Ohm
Output power Balanced
Up to 15V / 7W @ 32 Ohm // 18V / 1W @ 300 Ohm
Output Impedance
1.2 Ohm SE // 2.4 Ohm BAL
Inside the Box
  • 1 x Shanling EM7
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The Shanling EM7 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 2 weeks.No cancellation of orders once ordered.

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
