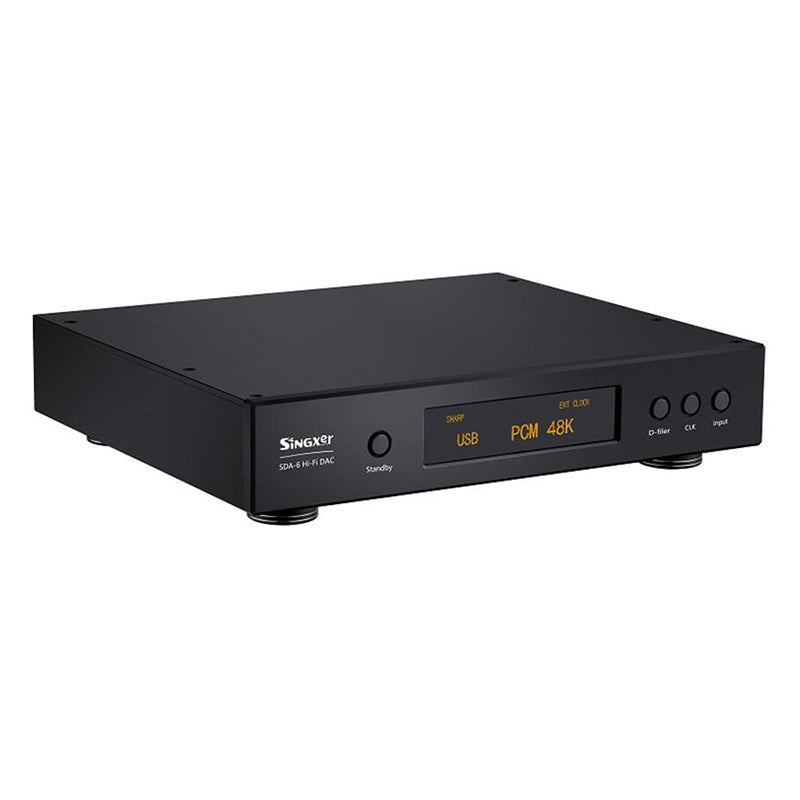

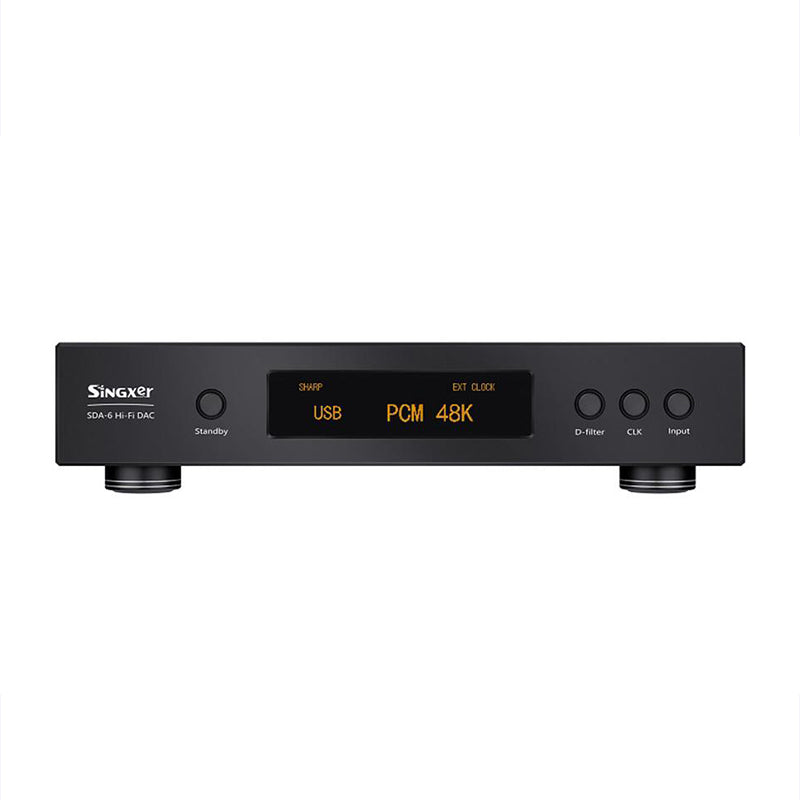

Singxer SDA-6
DSD512 AK4499 XMOS XU208 DAC Decoder
- Self-developed adaptive clock system technology
- 4 channels of fully balanced and full DC discrete circuit output
- Adopts the latest AK4499 DAC chip
Singxer SDA-6
Self-developed adaptive clock system technology
Self-developed adaptive clock system technology, built-in 4 independent ultra-low jitter audio crystal oscillators, equipped with a femtosecond-level local clock system for the USB part, the standard version of the crystal oscillator is AS-318B, and the high version is CCHD- 957. SDA-6 supports external clock input, among which USB supports 10M clock input, and other interfaces support WCK input. In USB mode, it also supports 50 and 75-ohm switchable input impedance.
High-performance DAC Decoder
High-performance digital-analog hybrid phase-locked loop, excellent clock synchronization recovery technology, can greatly filter the secondary PLL of external digital input jitter.
Rich input and output interfaces

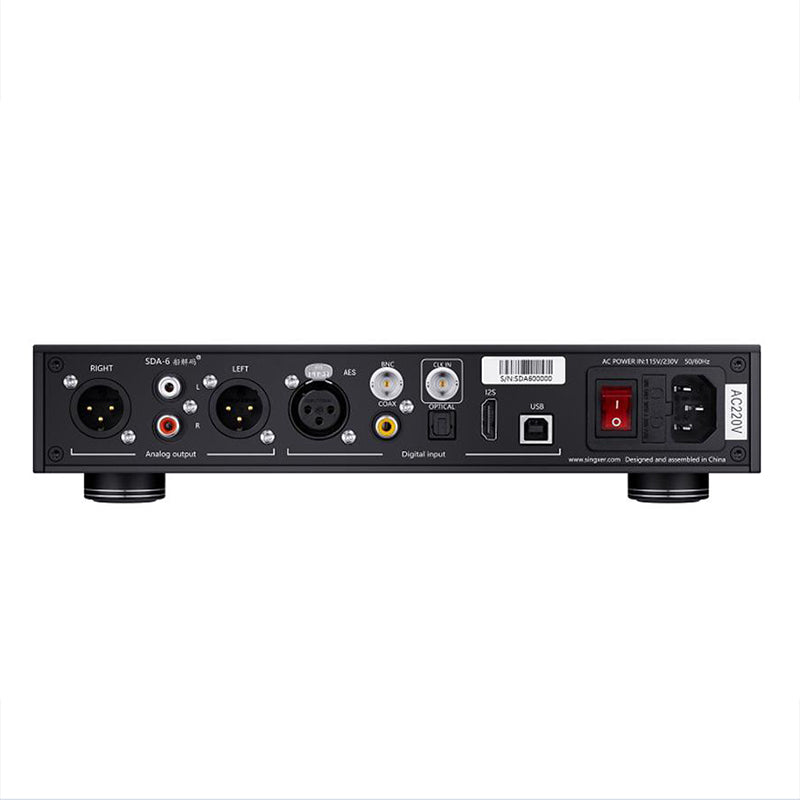

It adopts 4 channels of fully balanced and full DC discrete circuit output; among them, the high-end version adopts non-loop negative feedback output. It has a wealth of input and output interfaces, including standard USB2.0 input interface, SPDIF and BNC coaxial and AES balanced input, HDMI-I2S input interface, analog output including XLR balanced output and RCA single-ended output; all interfaces support DSD input.
Multi-input channel isolation technology
Large-scale FPGA for digital audio signal processing, self-developed second-generation algorithm, original multi-input channel isolation technology, to ensure the purity of each input signal.
Adopts the latest AK4499 DAC chip
Built-in 40 watt custom O-type transformer, output 4 independent power supply windings, up to 20 groups of distributed voltage stabilized circuits; The DAC chip adopts the latest AK4499 released by AKM in 2019; DSD adopts the native direct solution mode. The DSD digital stream does not pass through the internal digital filter and works in the NOS mode, which is fully in line with the design concept of HQPlayer.
Technical index
Sampling rate supported by each input interface:
PCM: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHz, 384KHz
(USB and I2S support all sampling rates and S/PDIF supports up to 192KHz）
DSD: 2.8 MHz (DSD64)-DoP,native
5.6 MHz (DSD128)-DoP,native
11.2 MHz (DSD256)-DoP,native
22.5792 MHz (DSD512)-native
（USB and I2S support all DSD formats, S/PDIF, and AES/EBU support DSD64 DOP mode）
Bit width: Up to 32 bit over USB and I2S
Up to 24 bit over S/PDIF
Electrical standards for each interface
1. The USB input socket is a standard USB-B type female socket, and the USB power supply range is 4.5V-5.1V.
2. The SPDIF interface inputs standard S/PDIF signals, the input impedance is 75 ohms, and the AES input impedance is 110 ohms.
3. The power input is 115V/230V AC, and a 40-watt customized transformer is used for power supply.
4. I2S input is the LVDS level in the form of the HDMI interface, compatible with most front-end equipment.
Analog output performance
Output level (0dBFS):
PCM: RCA single-ended output is 2.25V RMS, XLR balanced output is 4.5V RMS
DSD: RCA single-ended output is 1.8V RMS, XLR balanced output is 3.6V RMS
Output impedance: 22 ohms (RCA single-ended) / 45 ohms (XLR balanced)
Frequency response: 20-20kHz +/-0.1dB
S/N ratio: 131dB (20-22kHz A weighting)
Distortion characteristics:
THD+N (1kHz, 0dBFS) 0.00012% (-118db) at fs=44.1Khz (PCM, 20Hz-22kHz A weighting))
Dynamic response (1kHz, -60dBFS) 131dB (20Hz-22kHz A weighting)
Left and right channel separation >130dB @1kHz
Technical Details
2. Manual *1
3. Product certificate
4. Power cord
5. USB cable
6. MH-DA004Mini unit
- 1 x Singxer SDA-6
- User Manual
