Germany Infineon – New Gallium Nitride Power Tube

Experience cutting-edge performance with Infineon’s Gallium Nitride power tube developed in Germany. With up to a 1MHz switching frequency, it enhances sound clarity across the entire frequency range.

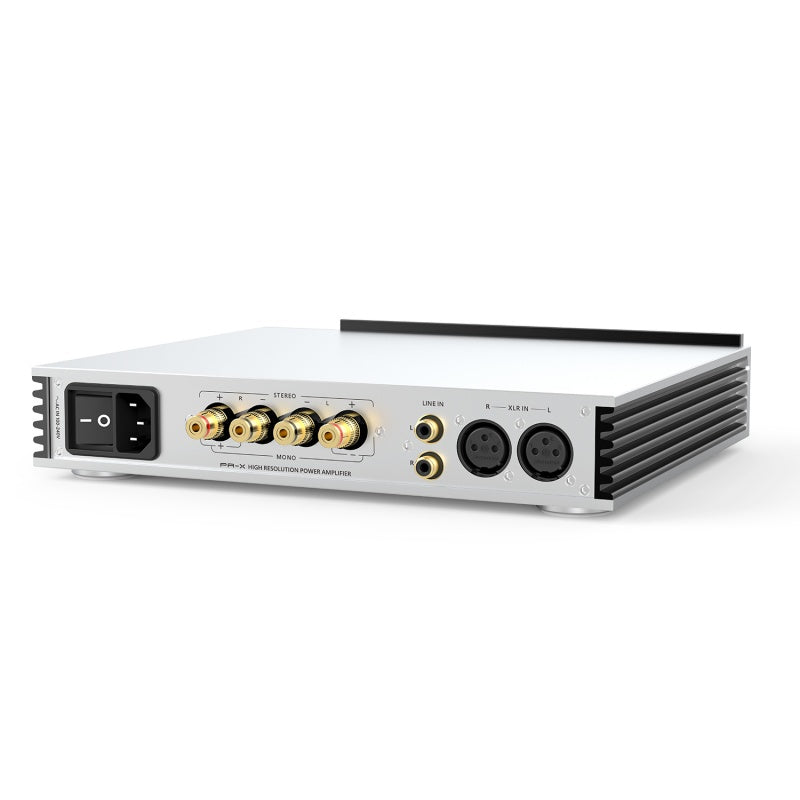

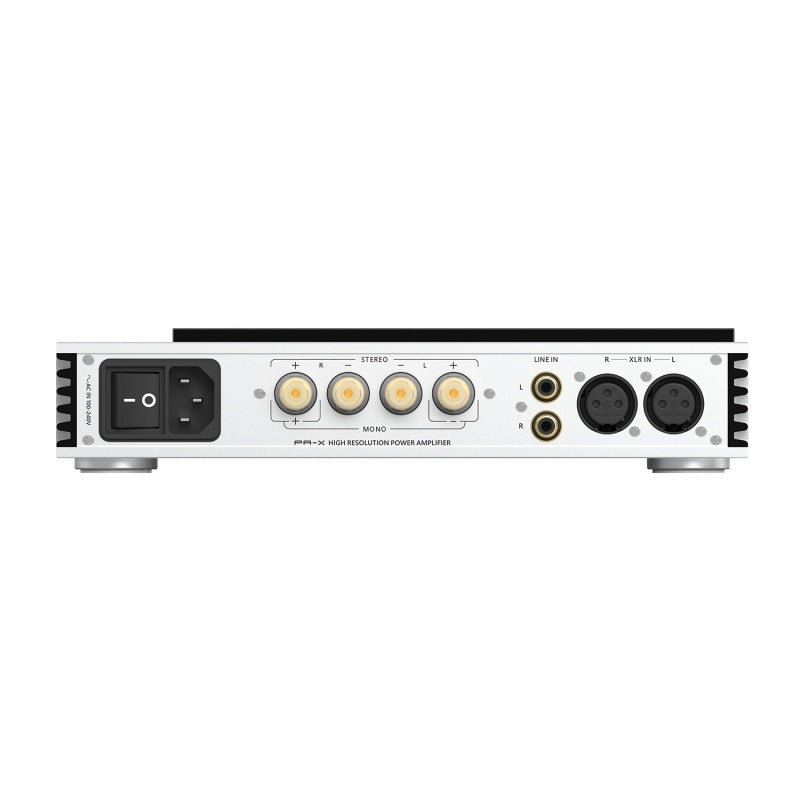

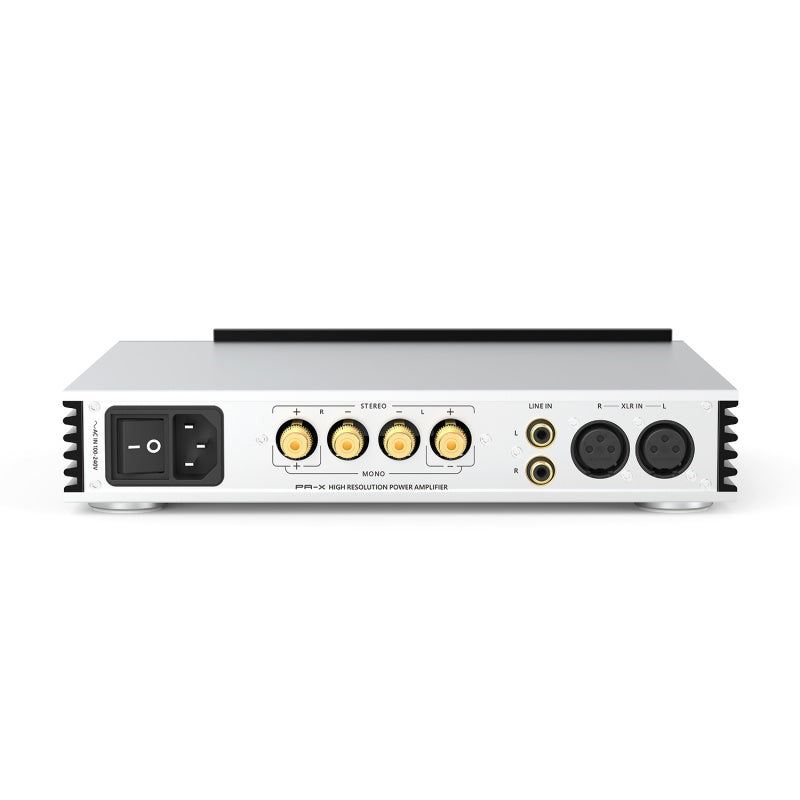

Pure Amp Mono Mode with XLR Input

The Pure Amp Mono mode features an XLR input, allowing the addition of an 8-ohm or 4-ohm speaker impedance for better compatibility.

High-End Internal Materials & Audio Components

Incorporates numerous high-end audio components to elevate the overall listening experience with premium internal materials.

Robust Circuit Protection

Equipped with comprehensive protection circuits to guard against overheating, overcurrent, and other potential hazards.

Advanced Switching Power Supply

A newly developed switching power supply designed specifically for audio, delivering higher power for enhanced performance.

Gold-Plated Interfaces

Features high-quality gold-plated input and output interfaces for optimal connectivity and durability.

Excellent Measurements

Delivers outstanding performance with ultra-low distortion (THD+N) of just 0.003%, high-power output at 8Ω, a dynamic range of up to 115dB, and an SNR that reaches 115dB—all contributing to an ultra-wide frequency response for optimal audio quality.

Technical Details

Input Options
Balanced (XLR) / Line in (RCA) / Mono (XLR)
THD+N
0.00003
SNR
115dB
Dynamic Range
115dB
Channel Separation
75dB
Input Sensitivity / Impedance
Stereo: 0.96Vrms / 22kΩ; Mono: 2.1Vrms / 22kΩ
Output Power (Stereo)
2.7 Vrms/22kΩ @ 4Ω; 250Wrms x 2 @8Ω
Output Power (Mono)
200Wrms x 2 @ 4Ω; 500Wrms x1 @8Ω
Power Consumption
40W (Normal Volume)
Standby Power
< 0.5W
Dimensions (W x H x D)
354 x 275.4 x 88mm
Weight
3.45kg
Inside the Box
  • 1 x SMSL PA-X
  • User Manual
