Ultra-Low Distortion Precision Feedback Circuit

SMSL SH6 adopts an ultra-low distortion precision feedback circuit, whose distortion is as low as 0.00006%. This circuit can help improve the signal-to-noise ratio of the amplifier. Besides, SH6 comes with high quality relays and pop-free noise design.

Ultra-Low Noise Power Supply Design

SH6 features a built-in ultra-low noise power supply design so that the output noise is as low as 1.3uV, which is APX555B measured value. There is no need to connect an external adapter, which greatly improves the convenience of use.

Comprehensive Protection

Employing high precision low-temperature drift resistance, which is not affected by temperature, SMSL SH6 also follows comprehensive protection such as overvoltage and thermal protection. It is worth mentioning that SMSL is safe to use.

Incredible Output Power

Featuring incredible output power supporting 2.6 Watts at 160hm load and 1.3 Watts at 320hm load, the SH6 characterizes a high-efficiency and ultra-low noise power system. This device features frequency response from 20 Hz to 500 kHz. It can offer superb audio performance and output efficiency to users.

Mini Size Design

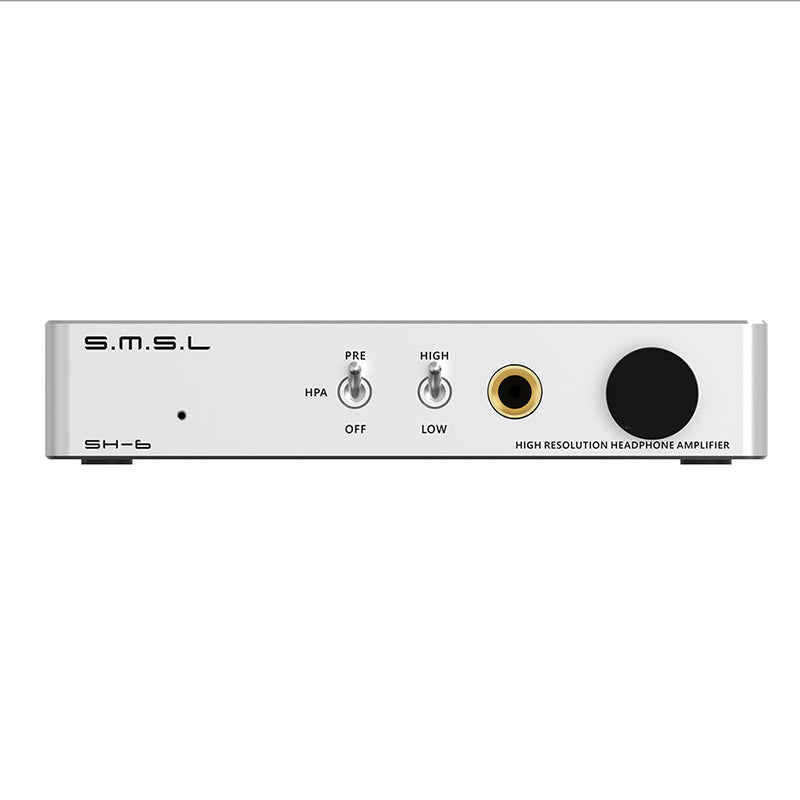

Equipped with two classic toggle switches for operation, SMSL SH6 features ultra-compact design, which is very suitable for desktop headphone system. It also adopts simple and stylish CNC integrated milling process.

Technical Details

Input:
unbalanced x1
Headphone output:
6.35mm unbalanced x 1
Pre-output:
unbalanced x 1
Output Power:
2.6Wx2(16Ω)
1.3Wx2(32Ω)
SNR:
134dB
Output Noise:
1.3uV
THD+N:
123dB, 0.00006% (1kHz,32Ω)
THD+N:
-118dB,0.00012% (20-20kHz, 32Ω, 0dB)
THD:
-125dB,0.00006%
Input Impedance:
47kΩ
Amp output Impedance:
Near 0Ω
Pre-out Impedance:
22kΩ
Frequency Response:
20Hz- 500kHz(-3dB)
Gain:
Low (0dB)
High(15.5dB)
Power consumption (EN60065):
<30w
Power consumption in standby mode:
<0.1W
Size:
140X28X115mm (WxHxD)
Weight:
0.38kg /0.84lbs
Inside the Box
  • 1 x SMSL SH-6
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The SMSL SH-6 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.
