New Products: Sonata HD PRO

Sonata HD PRO(Android Type-C port Version), Support Android phone(Type-C port) and Windows,not support iPhone.

Professional Amplifier

It is only for listening to music.It supports dsd music. Please make sure does your phone support OTG and usb debugging or not? if yes, your Android phone(type-c port)can use with Sonata HD PRO

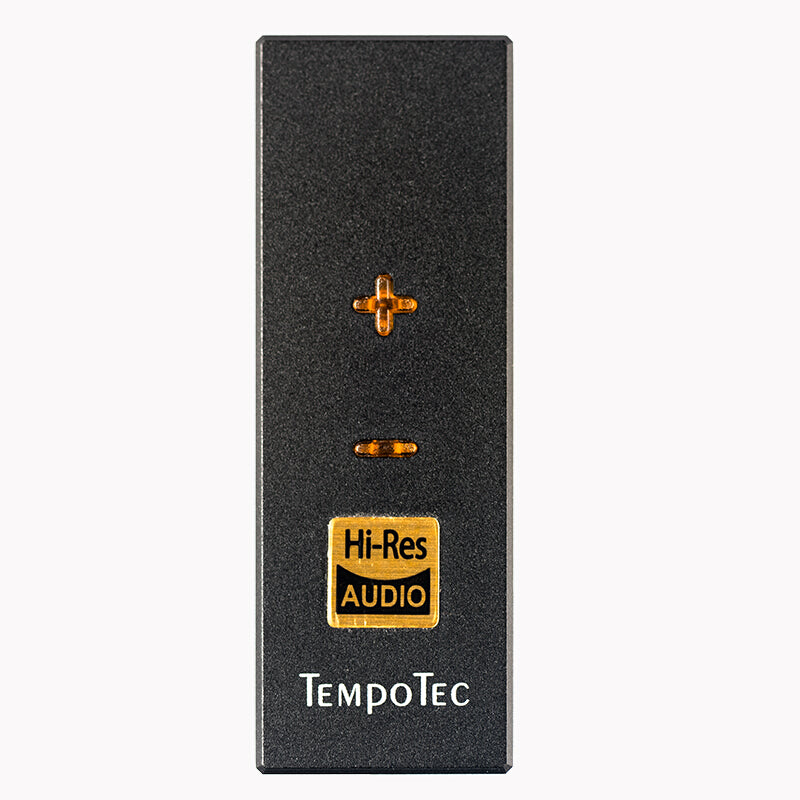

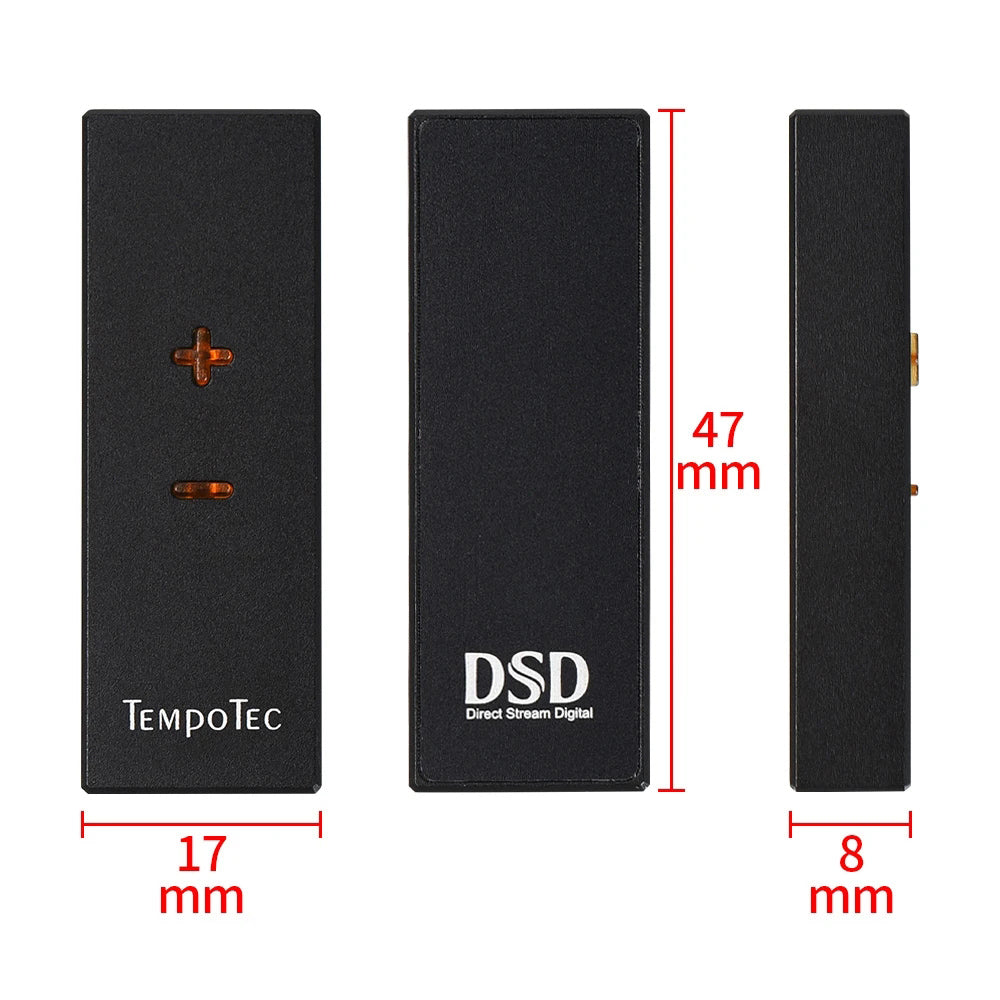

Volume control & DSD Support

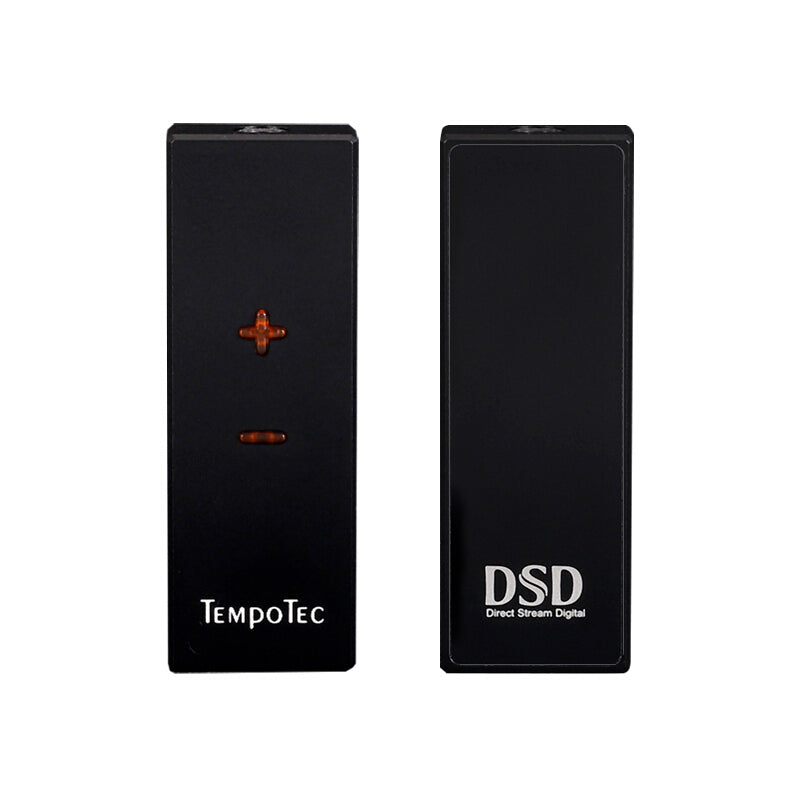

Pressing the + or - buttons. Direct Stream Digital,DOP128 NATIVE 256,Sonata HD PRO decodes DSD Music by itself not by APP on cellphone.Real DSD and real buttons control volume

Tips to be used

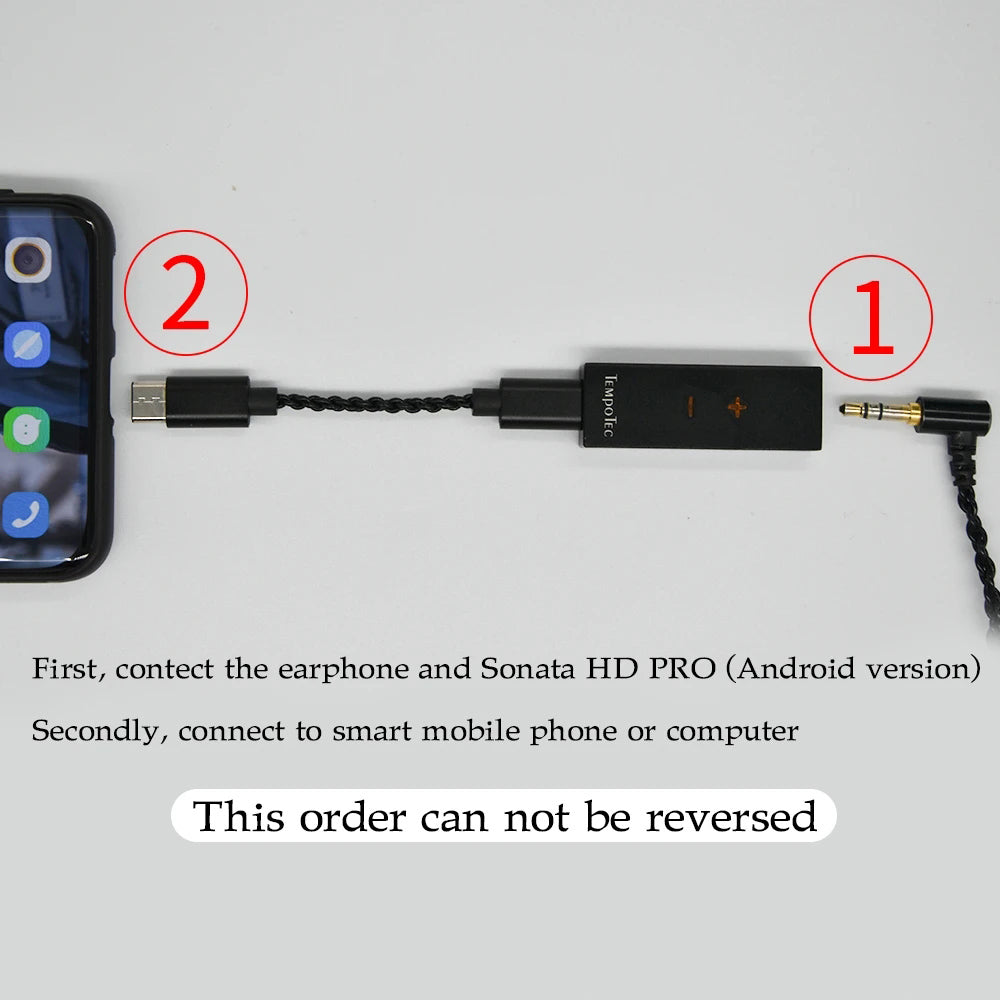

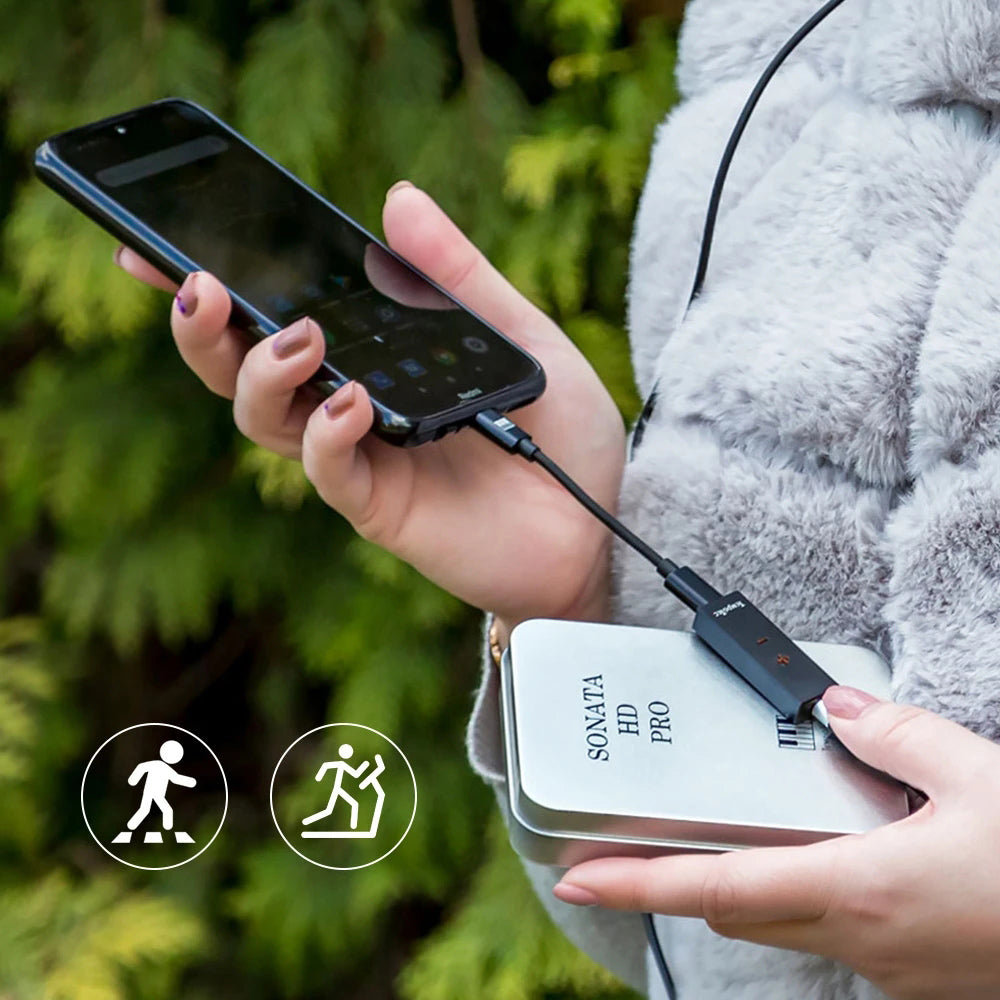

Connection Steps.First, contect the earphone and Sonata HD PRO.Secondly, connect to smart mobile phone or computer.

Instructions

1. Sonata HD PRO (Android version) can be compatible with most of the Android phones which has TYPE C interface on the market. Please make sure that you have turned the โ€œ OTG function" and โ€œ USB debugging modeโ€ on of your android phone.Please find these two switches under โ€œdeveloper optionsโ€ on your phone first. If you have done the first 2 tips and it still doesn't work, please try to download professional music app, such as poweramp, hiby music and so on.

2. Sonata HD PRO (Android version) is a plug-and-play device on the Apple computer system, please select it as the default audio output device in the "MIDI device" after connecting the product. (In this case, does not support DSD music, supports PCM music)

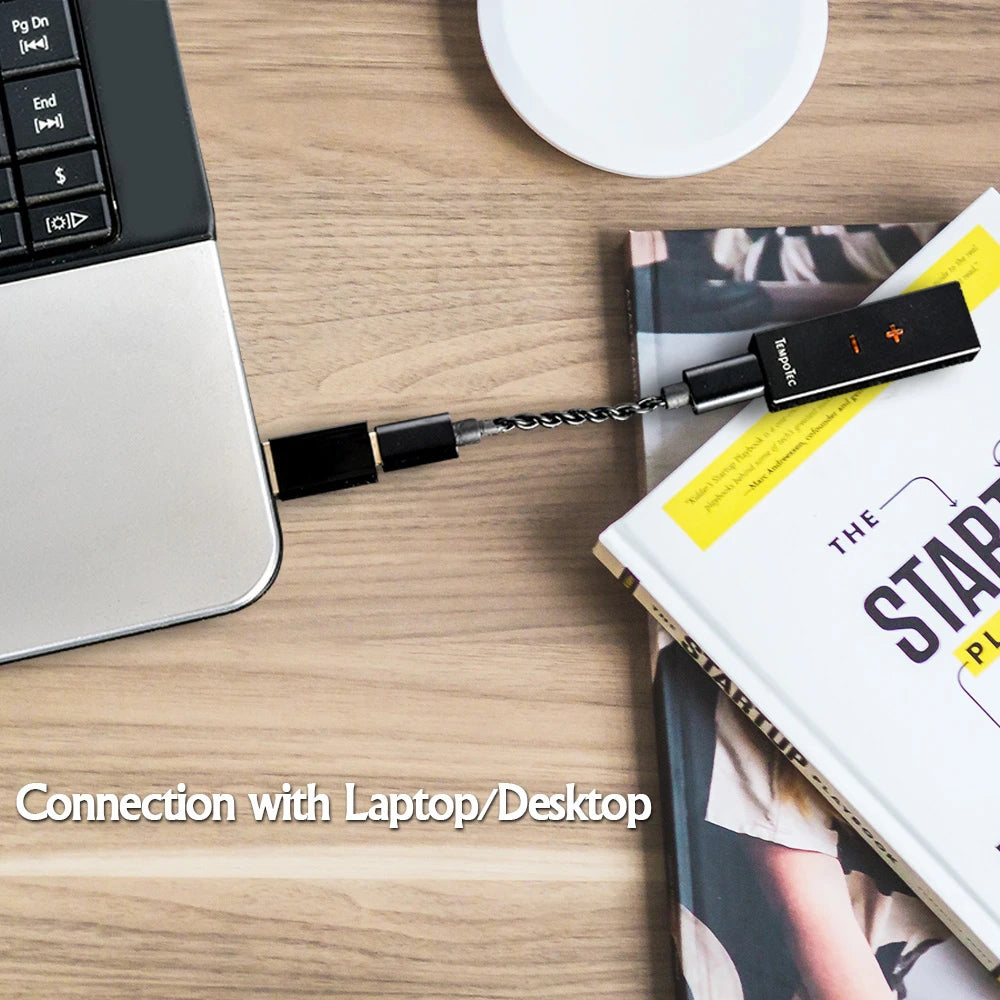

3. Sonata HD PRO (Android version) can work directly on windows system which is latter than WINDOWS 10 (version 1703) without installing any USB audio driver. But if your opertating system us Windows 7 or Windows 8, you have to install our professional USB audio driver to enjoy music, especial DSD music. (It is strongly recommended that you install our ASIO driver to feel every detail of the music )

Professional USB audio driver (V3.3.136.1) download link: http://www.tempotec.com.cn//en/3-Support/index.htm

Technical Details

DAC CHIP
CS43131
MICROPHONE
NO
SNR, DNR
128dB
USB DRIVER
YES
ASIO
YES
iPhone/iPad
NO
Output Type
LINE OUT (AUDIO OUT)
Input Type
Micro-USB
PCM
YES
Output Power
60MW/32

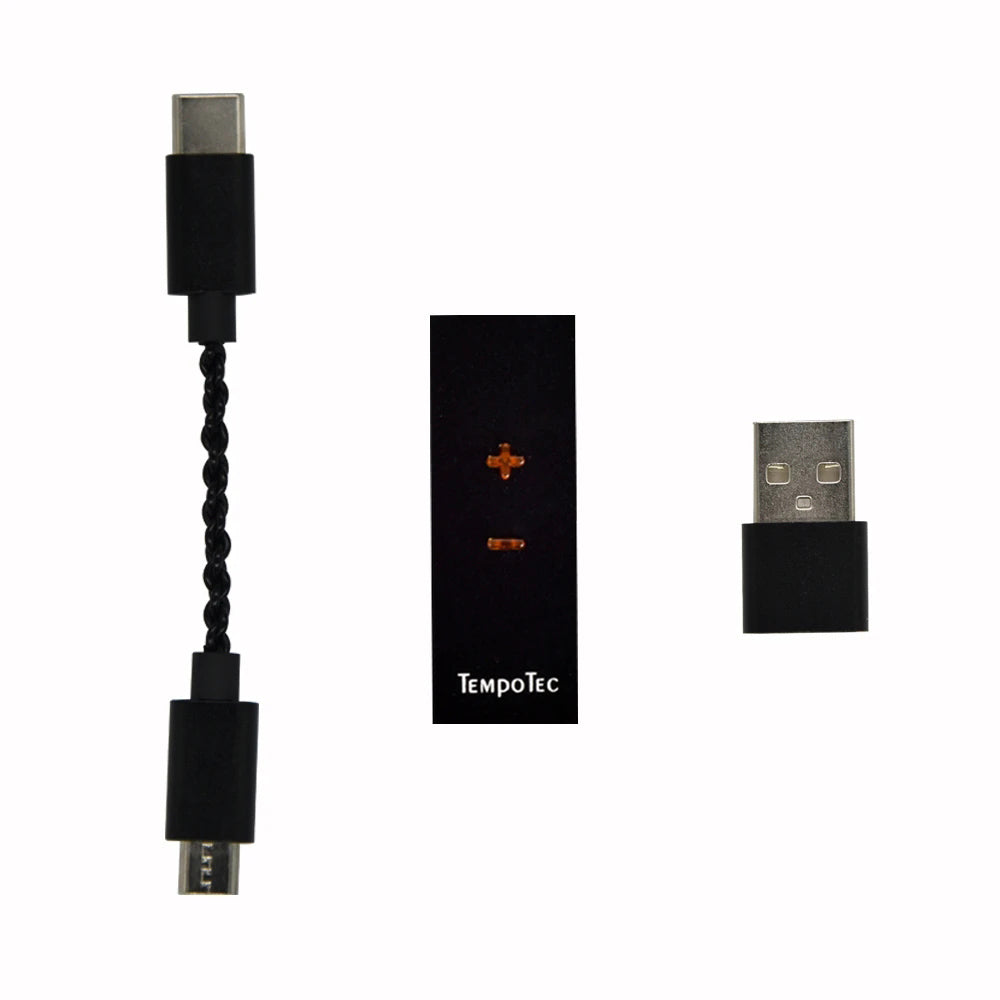

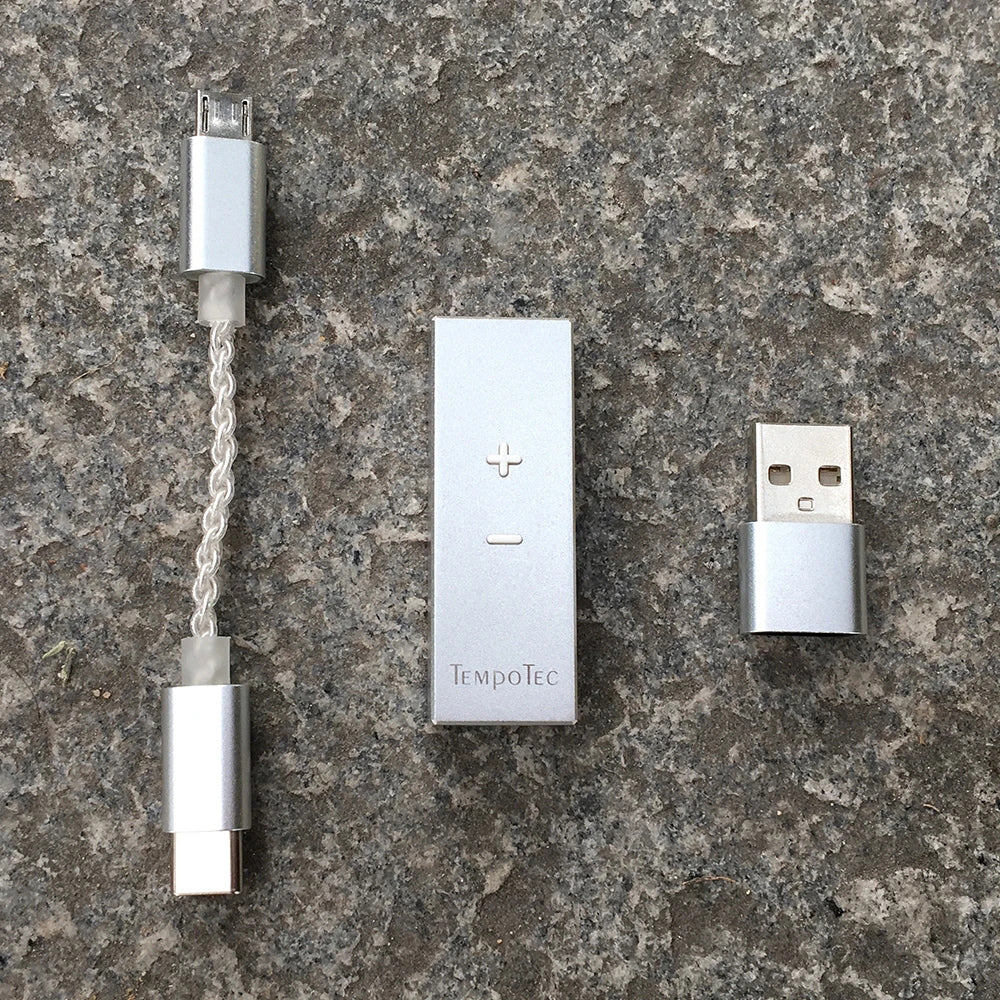

Packing Included
1* Sonata HD PRO (Android Type-C Port Version)
1* Adapter(female type-c to male USB-A)
1* OTG cable(micro-usb to type-c )
Inside the Box
  • 1 x TempoTec Sonata HD Pro
  • User Manual
