Tempotec Variations 6
Tempotec Variations 6 is a brand new Android digital audio player designed with newly-developed AK4493SE AKM DAC chips. It promises quality performance with its professionally designed audio architecture. Variations 6 comes loaded with open Android 8.1 OS with SRC Bypass architecture delivering quality sound on all the different applications. Tempotec has featured separate output ports for headphone-out and line-out functions. With its balanced audio circuitry, the V6 has both 3.5mm and 4.4mm output options.
Premium Latest-Generation AKM Dual DAC Chipset
Tempotec Variations 6 adopts a premium Dual DAC chipset on its audio circuitry. It houses the newly-developed AKM AK4493SE DAC Chips that deliver an impressive performance in decoding high-resolution audio signals. The V6 produces clean output with ultra-low distortion and high SNR, and DNR ratings promising a quality performance.
Supports High-Resolution Audio Signals, PCM, Digital, & MQA
Tempotec V6 supports high-resolution audio signal decoding, This includes 32-Bit/768kHz PCM, native DSD512, and up to 16x MQA signal decoding. You get to explore your music with top-notch high-resolution decoding supported on Variations 6!!
Pyramid Analog Amplifier Circuit For Each Channel
Tempotec V6 features an independently designed pyramid analog amplifier circuit for each channel. This consists of dual OPA1612 chips on the LPF circuit and four OPA1688 on the main amplification circuit. It produces a clean and powerful output that drives most IEMs and Headphones with ease!!
Powerful Amplification For Your IEMs and Headphones
V6 features a true high-fidelity audio circuit that consists of powerful amplification circuitry. It produces up to 610mW of clean output power through the 4.4mm Balanced headphone output easily driving most headphones!!
Professional FPGA Technology
In order to maintain ultra-low jitter in the signal circuit, Tempotec has featured a specially designed FPGA digital clock circuit on the V6. It houses a custom-made dual-crystal oscillator system with high-precision and low-phase noise.
Open Android 8.1 OS with SRC Architecture Bypass
V6 comes loaded with an open Android 8.1 OS. It has been customized with an SRC architecture bypass allowing every media application to get full access to the DAC and other audio components. With Android you get countless media applications, with SRC Bypass, you get to enjoy Hi-Res audio across different applications.
Supports Both Single-Ended and Balanced Connections

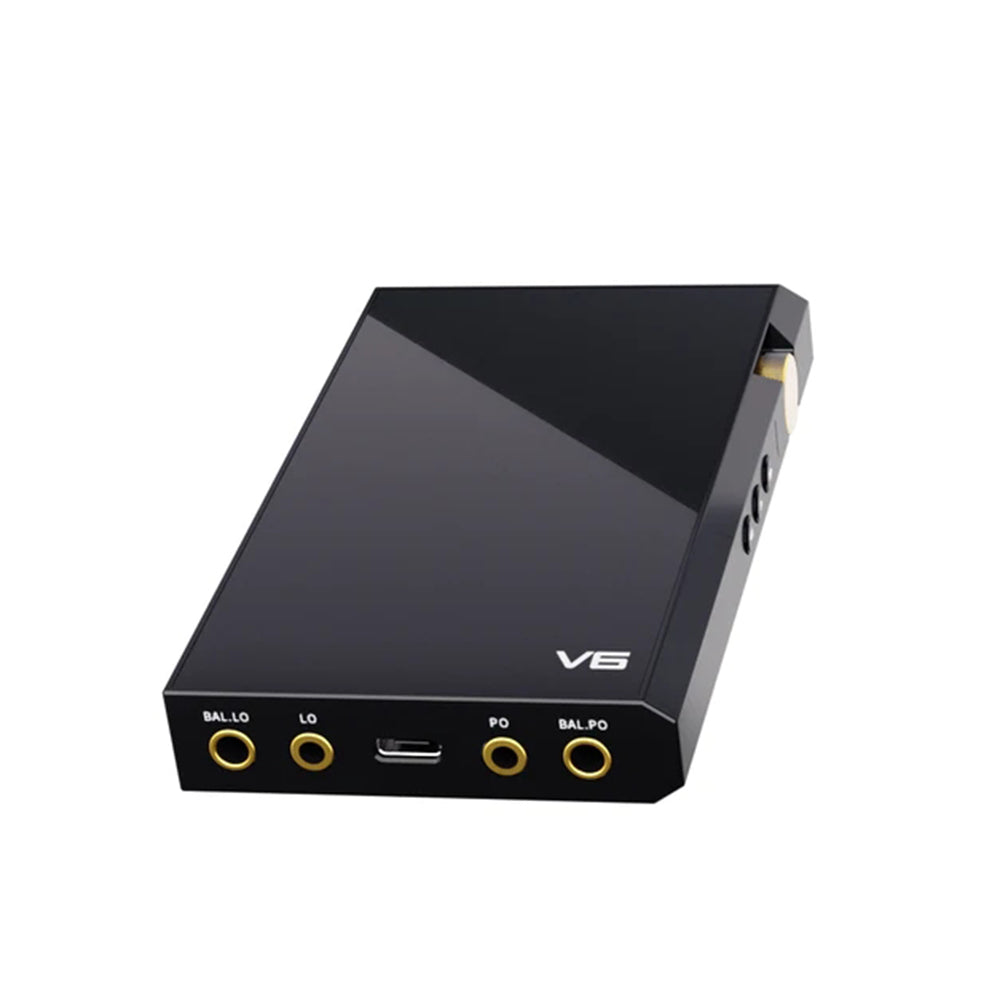

Tempotec V6 supports both Single-Ended as well as Balanced headphone connections. V6 features 4.4mm balanced and 3.5mm single-ended connections. It houses separate ports for both line-out and headphone-out functions.
Large 4500mAh Battery With QC3.0 Fast Charging Support
Tempotec has featured a large 4500mAh battery on the Variations 6. It provides an extended battery life and also supports QC3.0 quick charging. QC3.0 charges the V6 up to 70% in just an hour.
Technical Details
SoC: Snapdragon 425@2GB RAM+I6GB ROM
DAC: 2*AK4493SE
WIFI: 2.4GHz &5GHz
Bluetooth: Bluetooth 5.0
Screen size: 4.2”
Micro SD: <2TB
Battery capacity: 4500mAh
Charging time: Around 2 hours to 100%
Firmware update: OTA
Size: 11.6cm x 6.8cm x1.7cm
Output Power: 610MW/32Q/4.4mm|330MW/32Ω/3.5mm
Output Level: 2VRMS/3.5mm |4VRMS/4.4mm
SNR: 124dB
DNR: 124dB
Crosstalk: 116dB/32Ω/4.4mm|88dB/32Ω/3.5mm
DSD: Native DSD5I2
MQA: MQA I6X
Pcm: 32Bit/768kHz
- 1 x TempoTec Variations V6
- User Manual
