Bluetooth V5.1

xDuoo MU-605 houses the latest-gen Bluetooth chipset. It supports Wireless Bluetooth V5.1 connectivity for digital signal input. The MU-605 is designed to cater the requirements of Hi-Fi users that want the best quality transmission as it can be connected to various Bluetooth playback devices, Support SBC, AAC, aptX, aptX_LL, aptX_HD, LDAC format transmission.

High-Definition Digital Signal Output

You can connect the MU-605 to your regular DAC and provide the signal to it via the digital output of the MU-605. xDuoo has featured three mainstream digital output ports on the MU-605 including AES, Optical, and Coaxial. Easily connect MU-605 to any desktop chain and make the chain wireless.

High-Performance Dual ES9018K2M DAC Chipset

Users can also use the in-built DAC of the MU-605. It houses a premium Dual DAC Chipset housing two ES9018K2M DAC chips. Simply take the analog out from the MU-605 and enjoy a crisp performance with its premium Dual DAC arrangement.

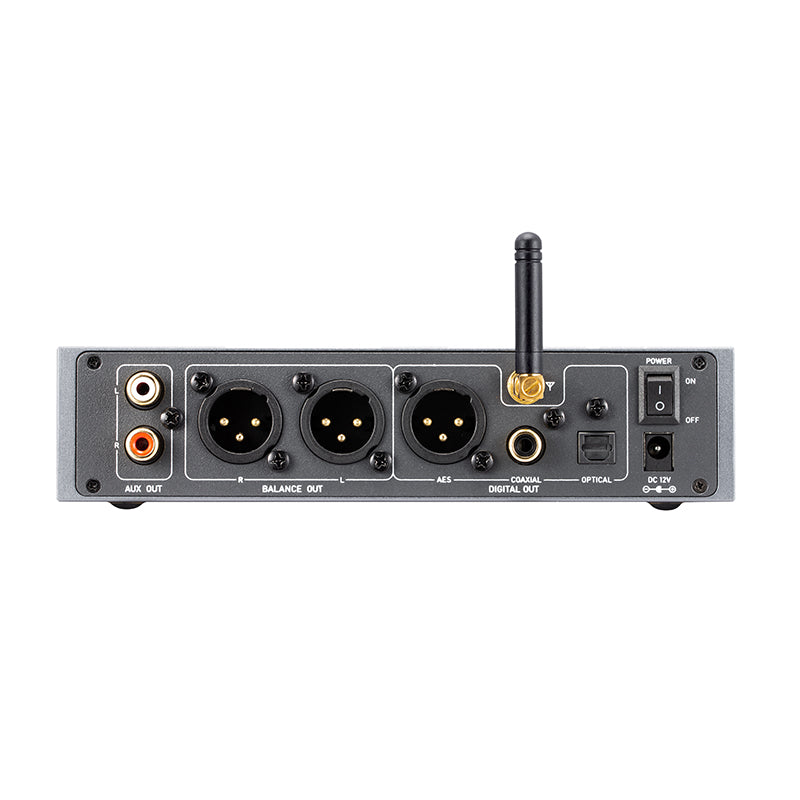

RCA Single-Ended & XLR Balanced Outputs

xDuoo MU-605 features both single-ended as well as balanced analog outputs. It houses RCA single-ended output and XLR balanced output ports. Users can connect the MU-605 directly to an headphone amp or any other amplifiers in the chain with its analog output. With AUX and XLR balanced output, high-quality balanced analog signal output, S/N, Crosstalk, THD+N and sound quality are fully improved.

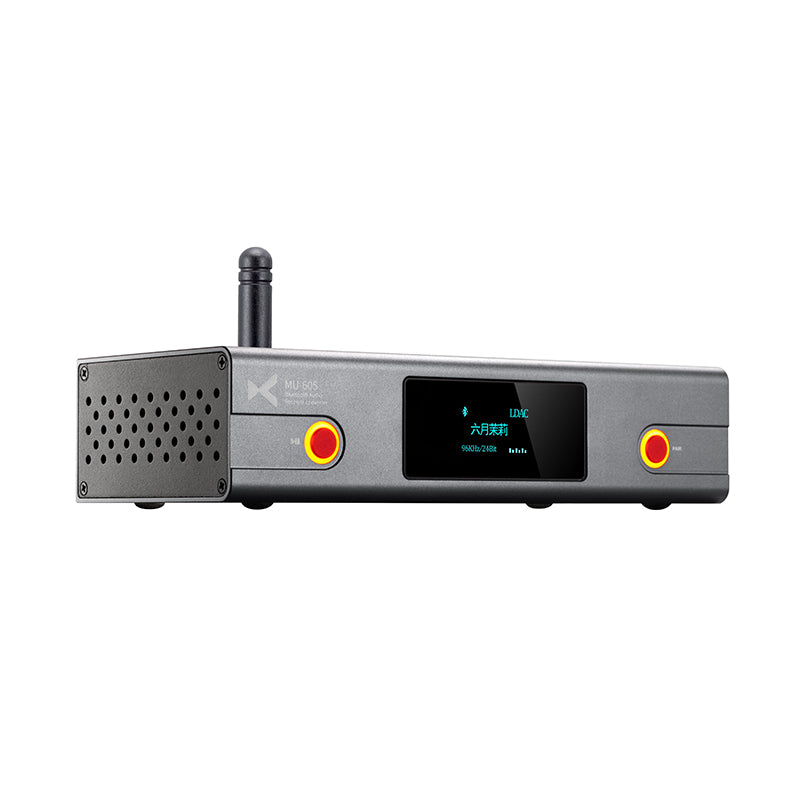

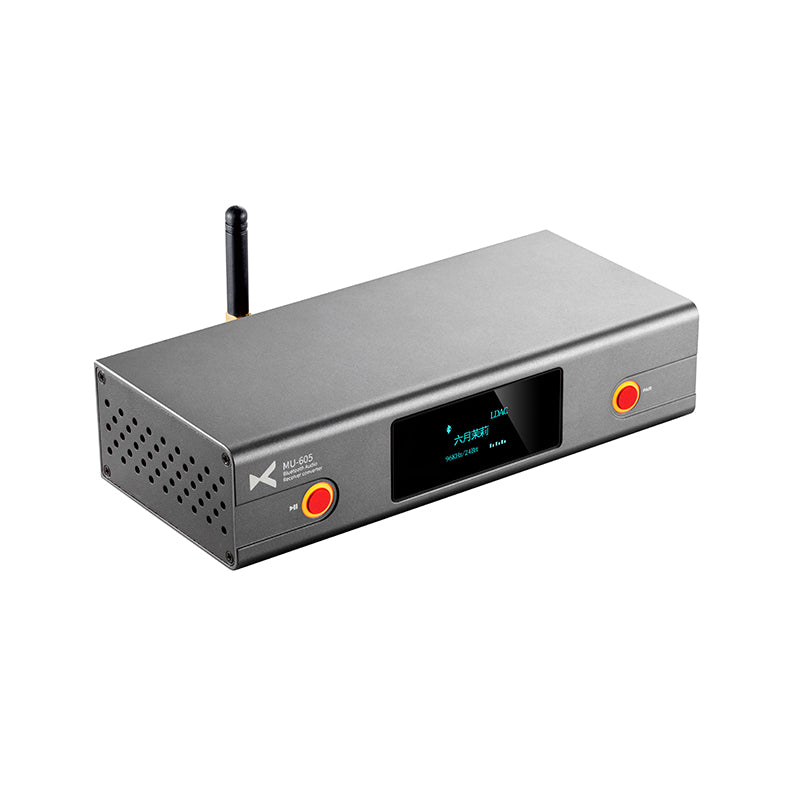

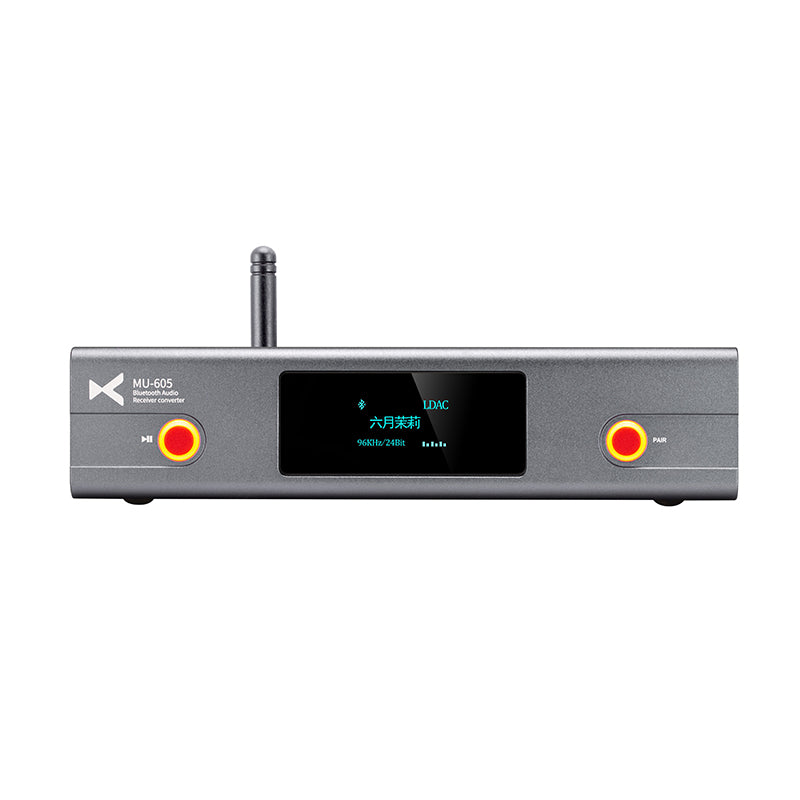

OLED Display & Simple Appearance

Using high-definition OLED display,Know whether the MU-604 is in the best decoding state at any time. Sand blast textured panel and hard aluminum alloy shell are slap-up and can resist external interference effectively.

Technical Details

Output Level
0.5Vpp(optical), 0.5Vpp(Coaxial), 1Vpp(AES)
THD+N
0.0003%(optical), 0.005%(Coaxial), 0.003%(AES)
Output Level
2V(Aux), 4V(XLR)
THD+N
0.005%(Aux), 0.003%(XLR)
SNR
110dB(Aux), 120dB(XLR)
Crosstalk
108dB(Aux), 110dB(XLR)
Size
12x7.8x4cm
Weight
0.35Kg
Inside the Box
  • 1 x xDuoo MU-605
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The xDuoo MU-605 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.
