A Dazzling Audio Dongle

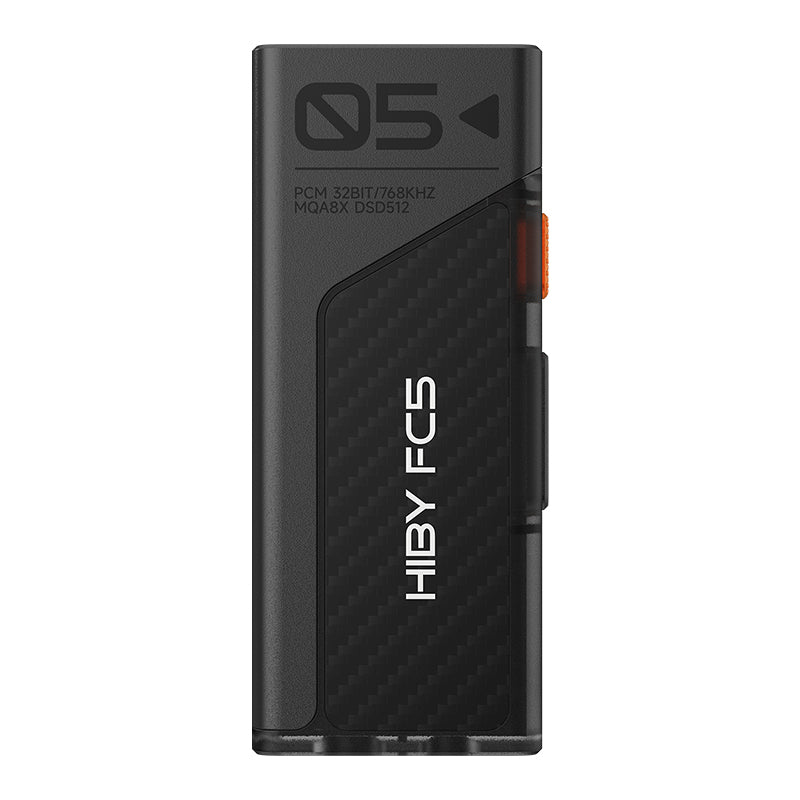

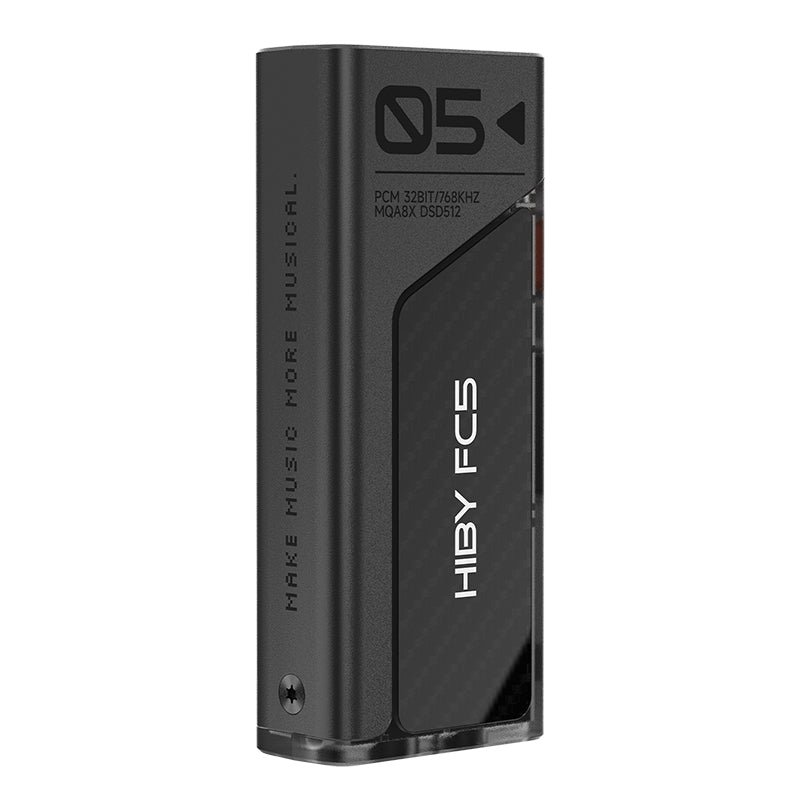

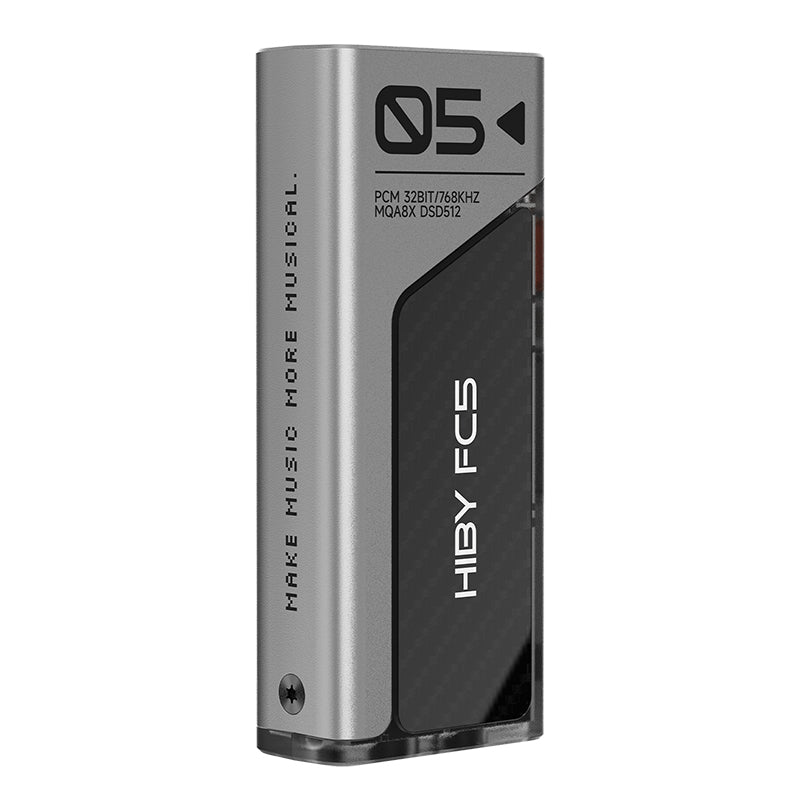

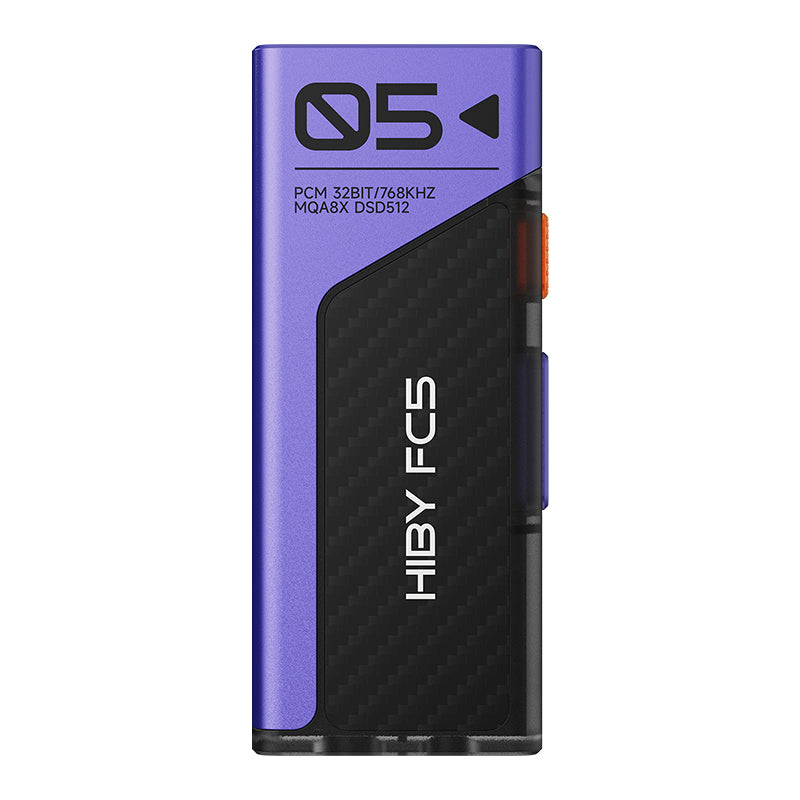

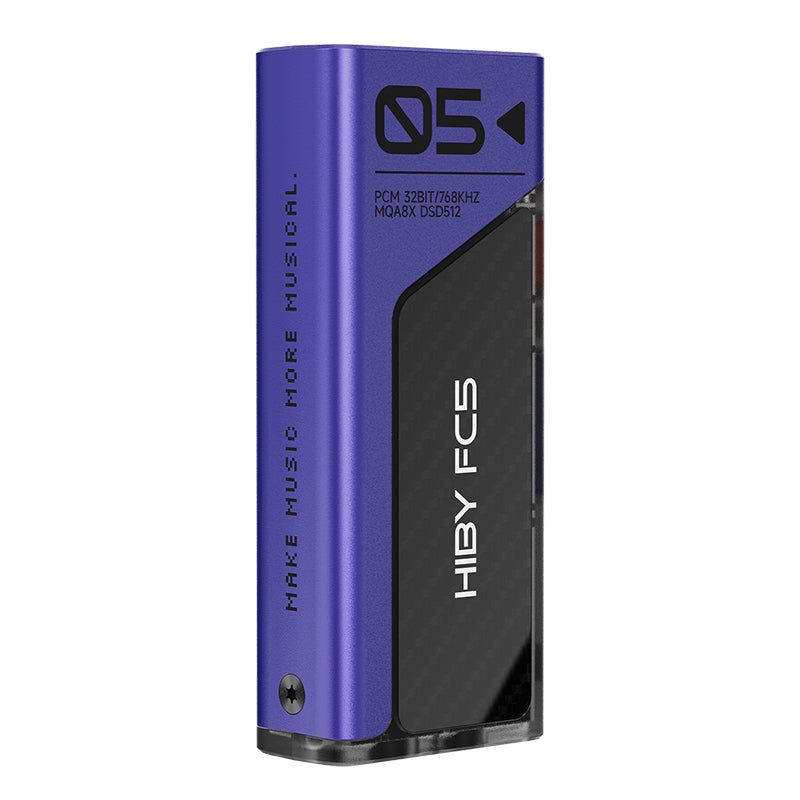

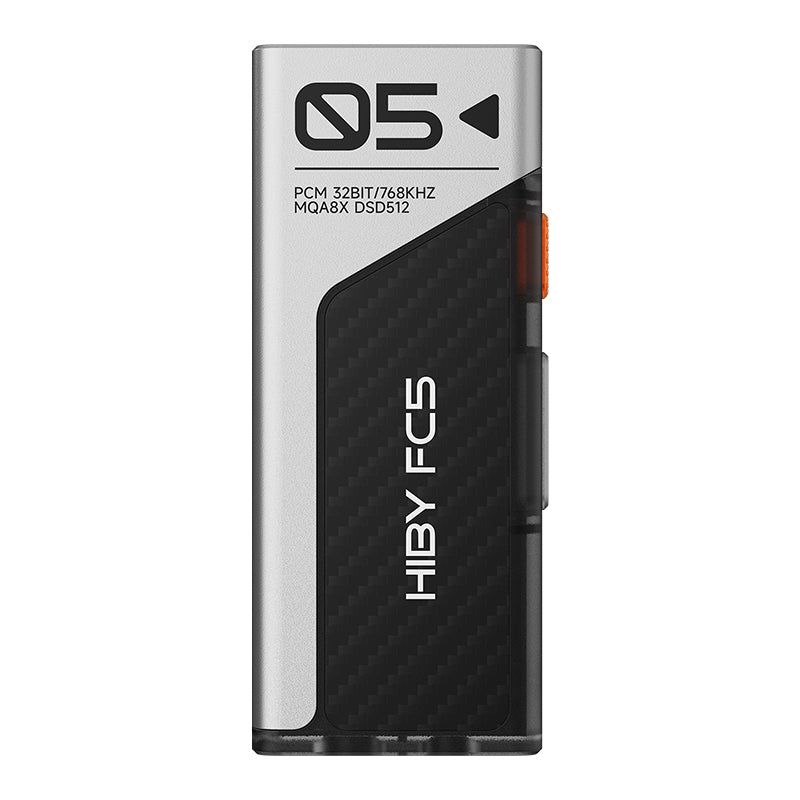

Inspired by the cyborg-like design of the HiBy R4, the FC5 features a sleek aluminum chassis combined with a translucent polycarbonate shell, forming a unique geometric aesthetic. Weighing only 21g, it is ultra-portable while standing out from the conventional aluminum dongles saturating the market.

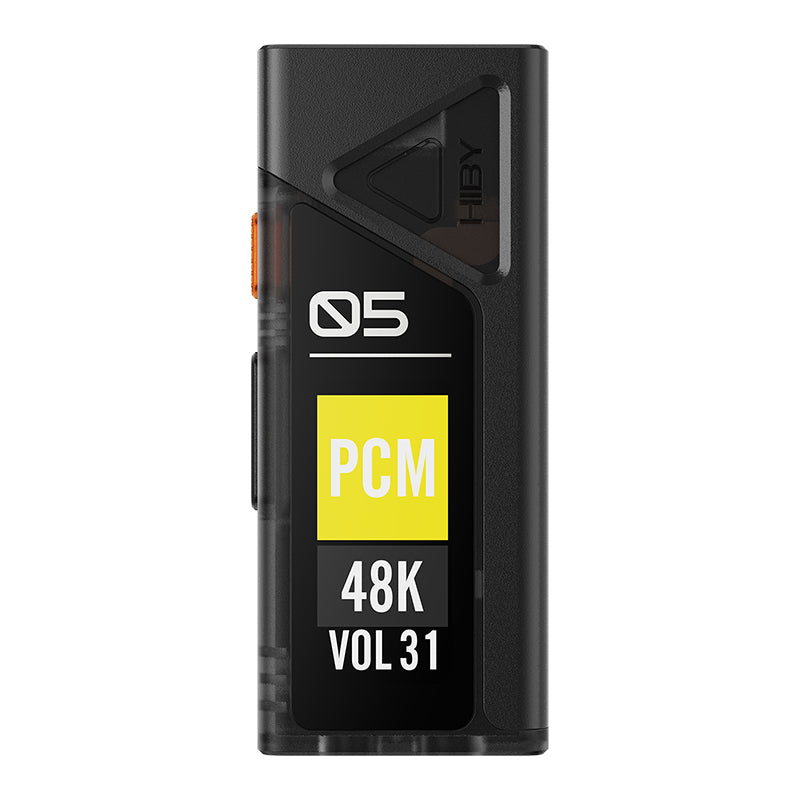

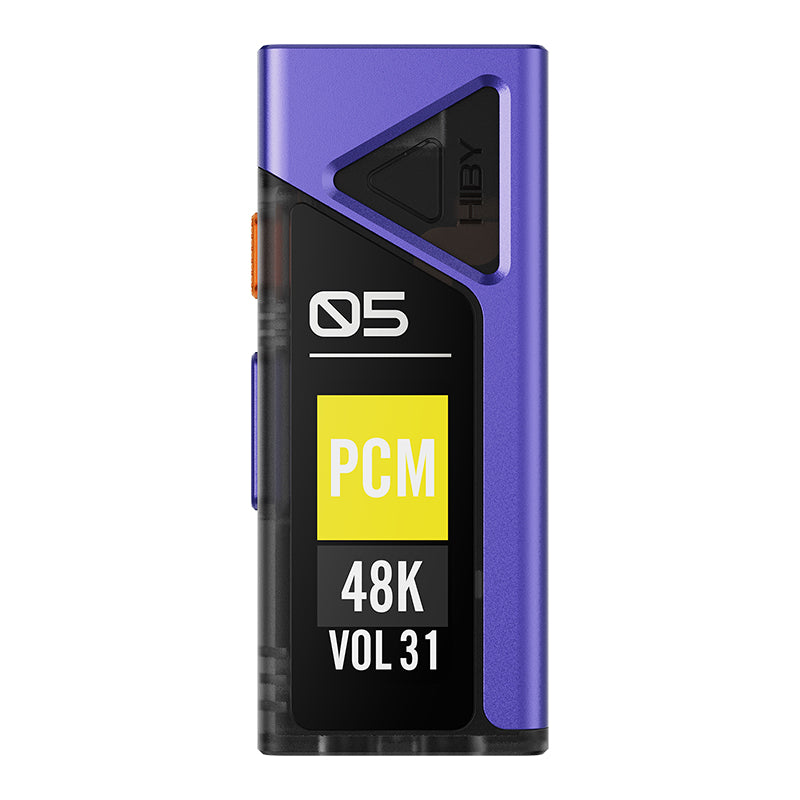

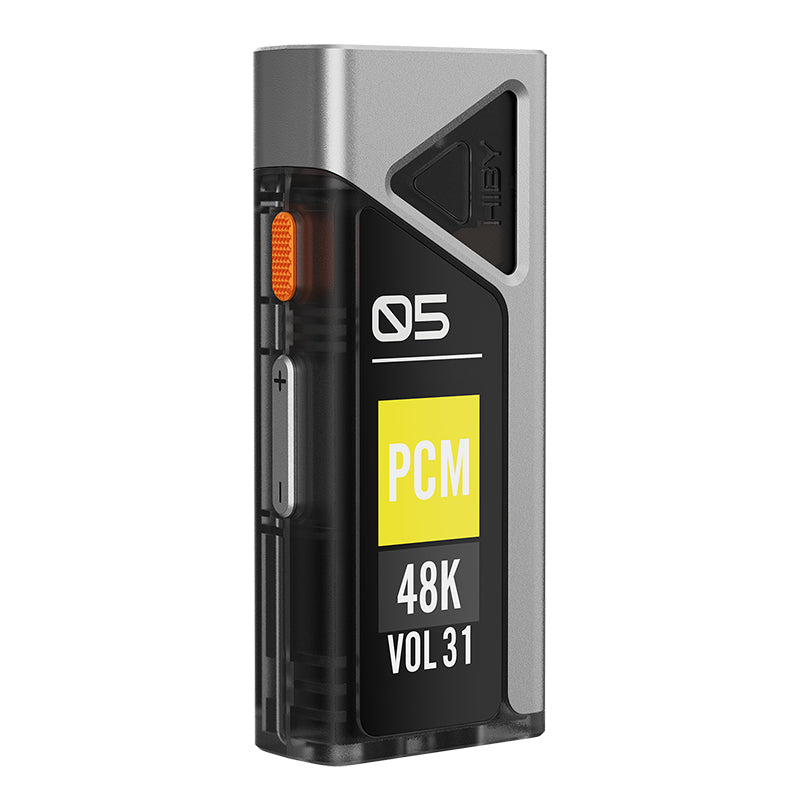

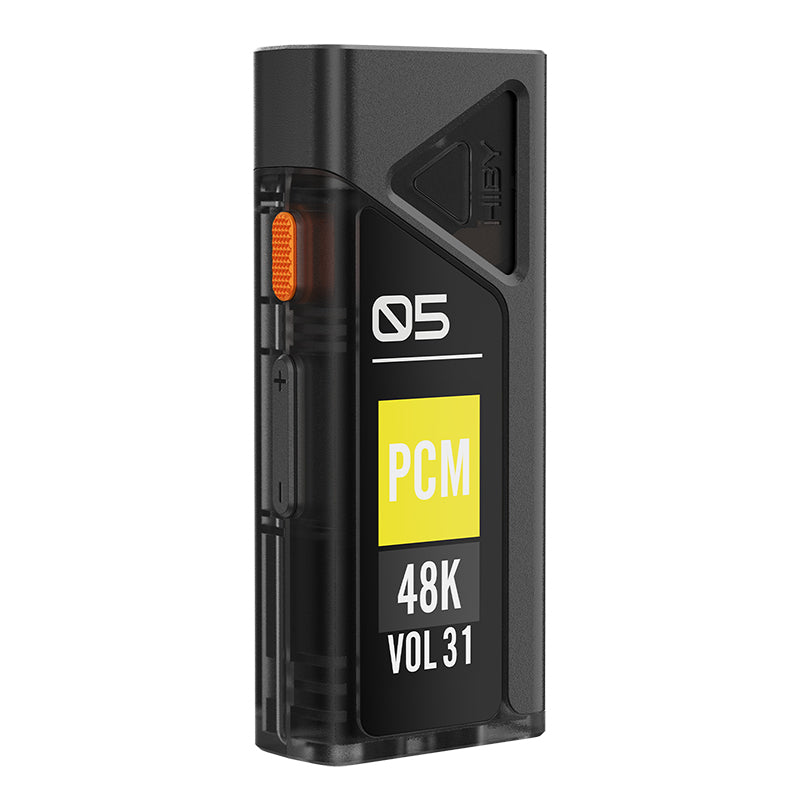

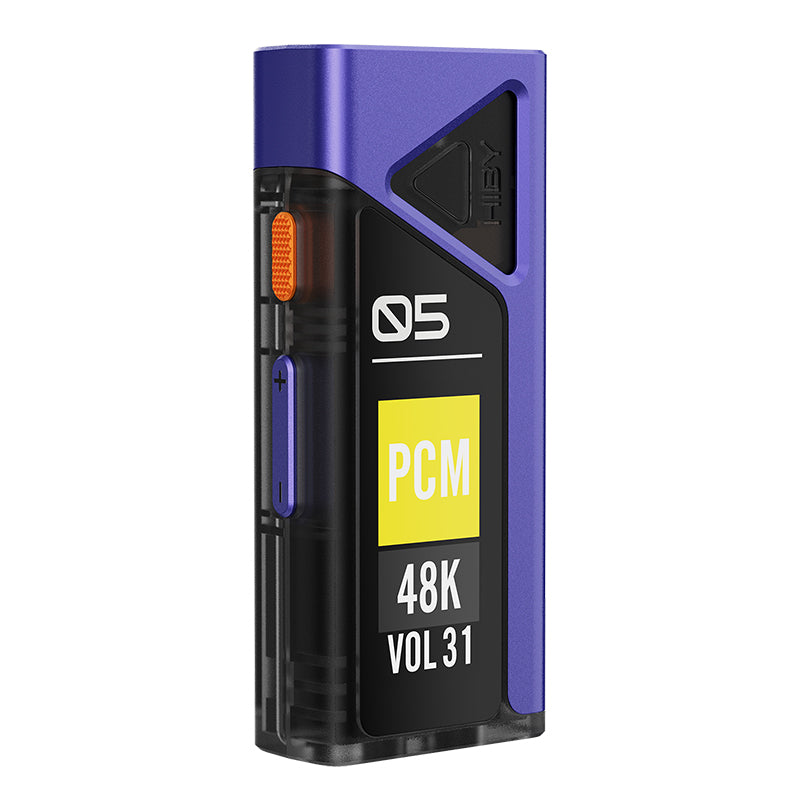

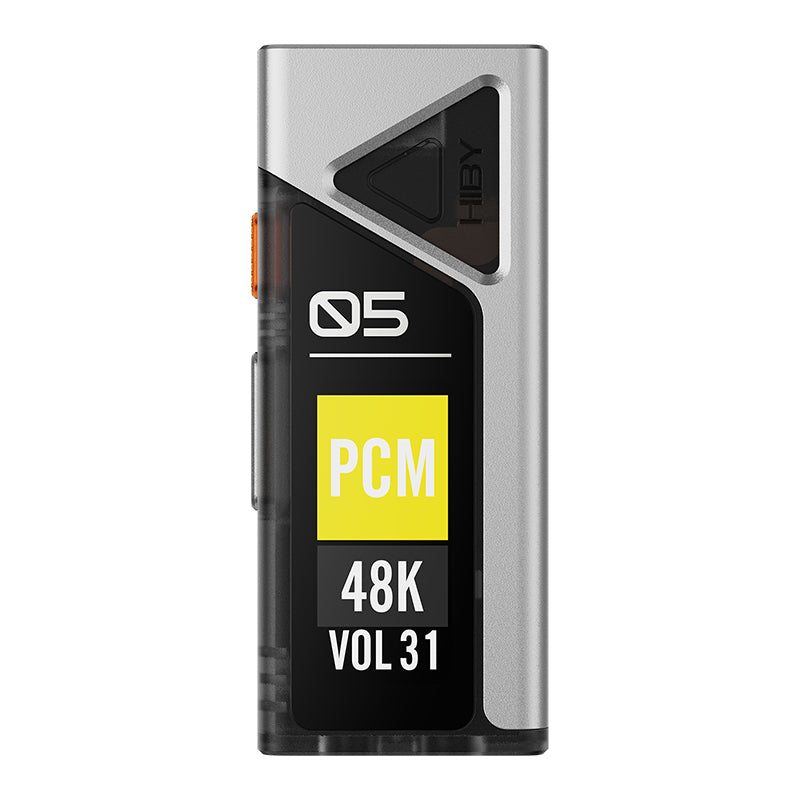

1.1" Hi-Res OLED Color Display

Say goodbye to memorizing LED color codes or complex button combinations. The FC5 is equipped with a 1.1-inch hi-res OLED color display, offering clear real-time operating status with an intuitive, menu-driven interface for effortless control.

Dual Flagship DACs for Premium Sound

Powered by two Cirrus Logic CS43198 flagship-grade DAC chips, the FC5 delivers exceptional 122dB SNR and low power consumption, ensuring superior clarity, dynamic range, and detail retrieval in your music.

Independent High-Performance Headphone Amplifier

Designed by HiBy’s experienced DAP engineering team, the FC5 integrates dual SGM8261-5 headphone amplifiers, ensuring high driving power and seamless synergy with the flagship DACs. This level of power and expressiveness is rarely found in the dongle market.

Femtosecond-Grade Audio Oscillators

Equipped with dedicated 45.1584MHz and 49.152MHz femtosecond-grade oscillators, the FC5 minimizes jitter and ensures stable, precise clocking for reduced distortion and enhanced sound accuracy.

Plug & Play USB Sound Card

The FC5 is driverless on Mac and Windows, offering seamless plug-and-play functionality. It is also compatible with multiple platforms, including iOS, Android, Mac, Windows, gaming consoles, and handheld devices, making it an all-in-one solution for high-fidelity audio.

Hi-Res Audio Support

Supporting PCM up to 768kHz/32bit and DSD512, the FC5 captures every detail in your music, delivering lifelike performances with exceptional resolution and depth.

Versatile Connectivity & High Driving Power

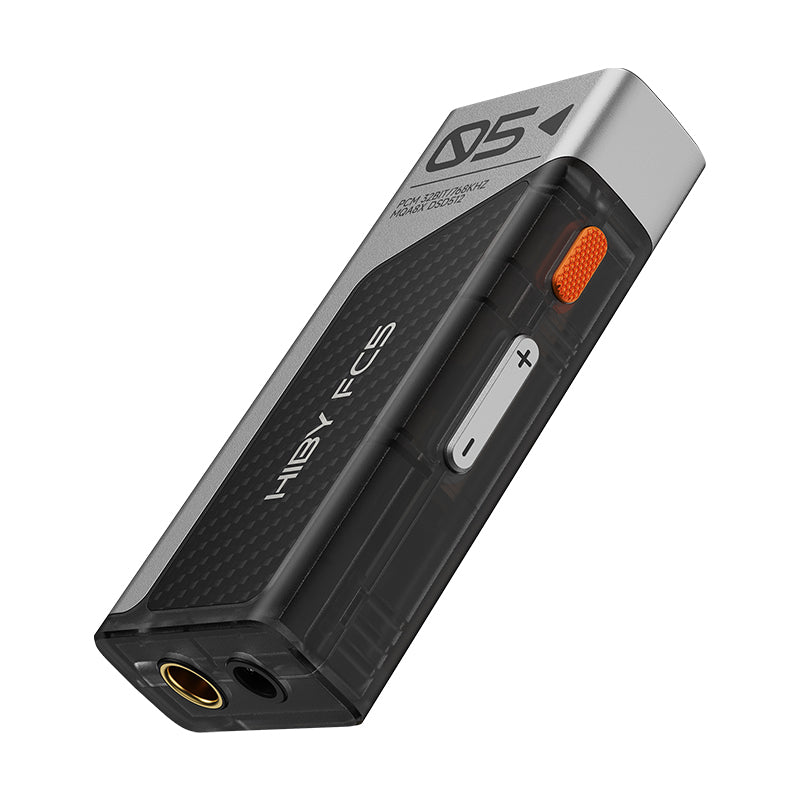

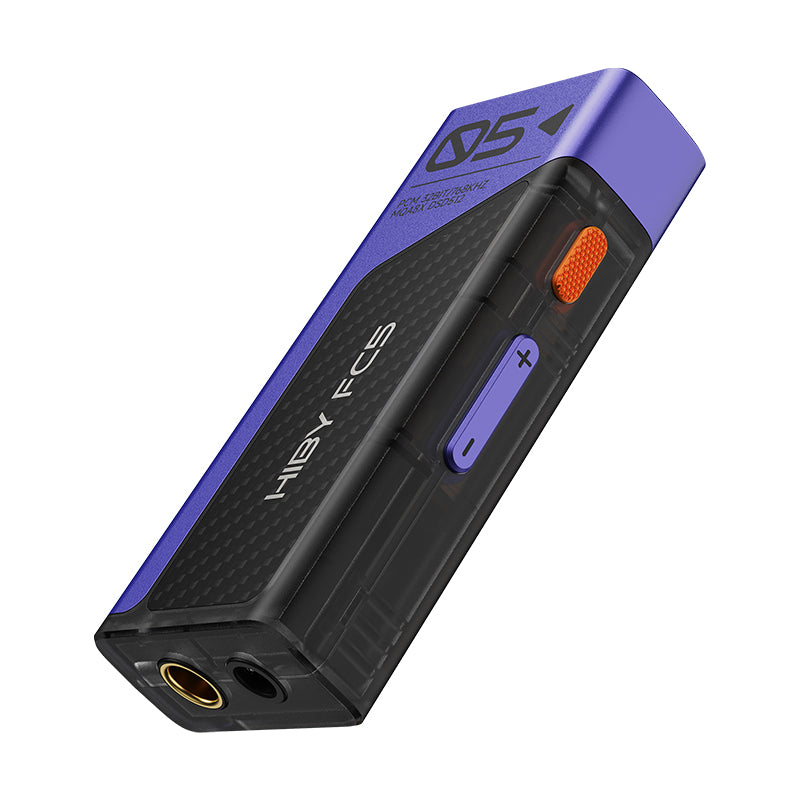

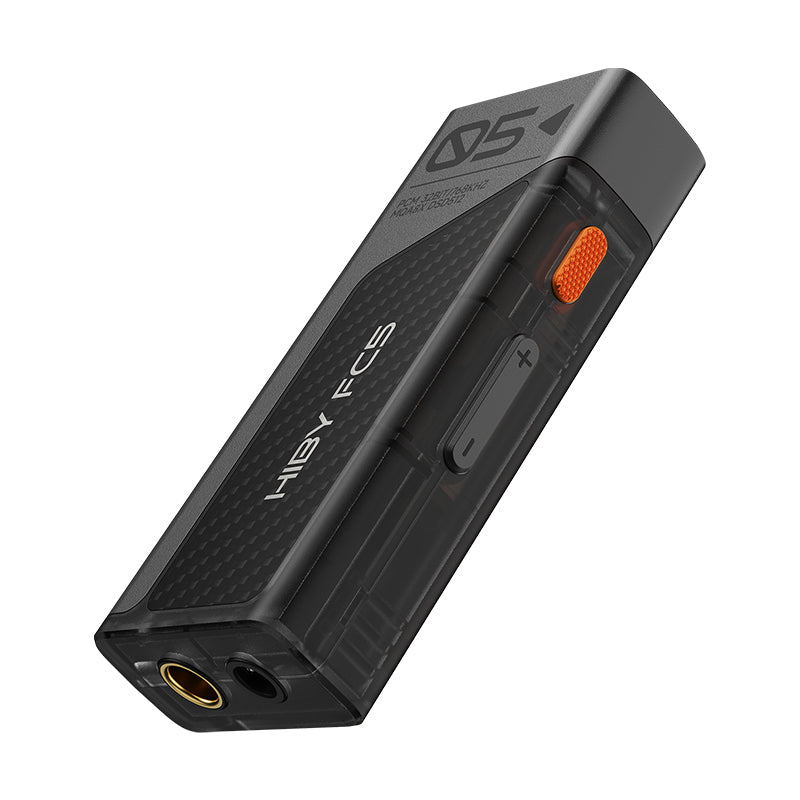

The FC5 is equipped with both 3.5mm single-ended and 4.4mm balanced outputs, with support for 6.35mm and RCA (via adapter), ensuring compatibility with a wide range of headphones and audio setups.

3.5mm output: Up to 125mW

4.4mm balanced output: Up to 245mW

MQA 8x Unfolding Support

Paired with MQA decoding on the host device (via HiByMusic, TIDAL, etc.), the FC5 supports MQA 8x unfolding for studio-quality audio.

Host device decodes MQA 2x

FC5 unfolds an additional MQA 4x

Precise Hardware Volume Control

Enjoy 30-step hardware volume control with physical volume buttons for accurate adjustments and volume memory, ensuring a seamless listening experience.

UAC 1.0 & 2.0 Compatibility

UAC 1.0: Compatible with gaming consoles & handhelds like PS5, Switch, PS4 Pro.

UAC 2.0: Supports high-resolution audio playback.

Mode switch: Connect via USB while holding the Volume - button to switch between UAC 1.0 and 2.0.

Official HiBy Companion App

The HiByMusic app is a hi-res music player available for Android and iOS, with over 5 million users worldwide. In Exclusive HiFi USB mode, it ensures lossless decoding of all audio formats. Download the app here.

Customizable Sound with Preset EQ Effects

Designed by HiBy engineers, the FC5 offers 9+ preset sound effects for a personalized listening experience. Users can further customize the equalizer via the HiByMusic app (Android version) or HiBy USB Master software on a PC for full control over their audio preferences.

Technical Details

Model
HiBy FC5 with Display
Dimensions
63 × 26.09 × 13.2 mm
Weight
21g
Chipset
AB1565 + Dual Cirrus Logic CS43198
Hardware Buttons
Volume +, Volume -, Mode/Function Button
Audio Format Support
DSD512, PCM 768kHz/32bit, MQA 8x Unfolding
USB Support
UAC 1.0 & UAC 2.0
Headphone Ports
3.5mm PO + 4.4mm BAL PO
3.5mm PO (Single-Ended)
Unloaded Output Level
2Vrms
Loaded Output Level
2Vrms
Output Power
125mW
THD+N
0.0006%
Noise Floor
1.5μV
SNR
122dB
Crosstalk Rejection
71dB
Frequency Response
20Hz – 90kHz
4.4mm BAL PO (Balanced)
Unloaded Output Level
4Vrms
Loaded Output Level
2.8Vrms
Output Power
245mW
THD+N
0.0005%
Noise Floor
2.0μV
SNR
123dB
Crosstalk Rejection
112dB
Frequency Response
20Hz – 90kHz
Inside the Box
  • 1 x HiBy FC5
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The HiBy FC5 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 15-30 days.

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
