Minimalist Design

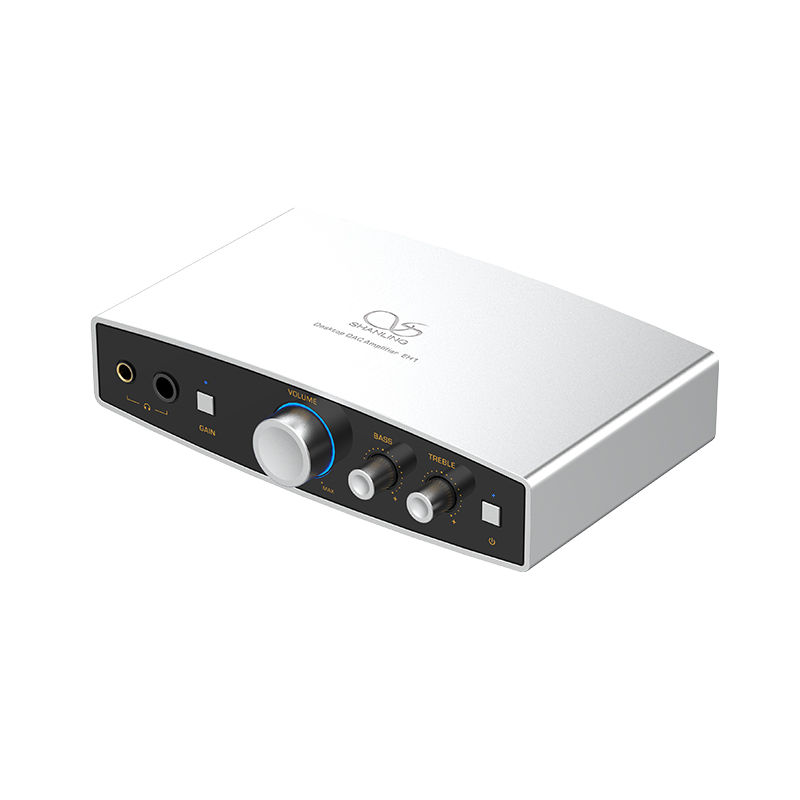

The Shanling EH1 embodies minimalist audio design with its sleek, curved aluminum body. Without screens or complicated interfaces, it features just a few buttons and dials, ensuring an intuitive user experience.

High-Quality Audio Performance

Equipped with a Cirrus Logic CS43198 DAC and dual SGM8262 headphone amplifiers, the EH1 delivers exceptional audio clarity and speed. It provides up to 1015 mW output power at 32 Ohm, ensuring that every note is rendered with precision. The device supports high-resolution audio formats, including 32-bit/768 kHz and DSD512, making it a perfect companion for audiophiles.

Customizable Sound

The EH1 features dedicated Treble and Bass controls, allowing you to easily adjust your listening experience to suit your preferences. Whether you prefer a bit more punch in the low end or sparkling highs, this compact amplifier lets you tailor your sound without the need for complex settings.

Versatile Connectivity

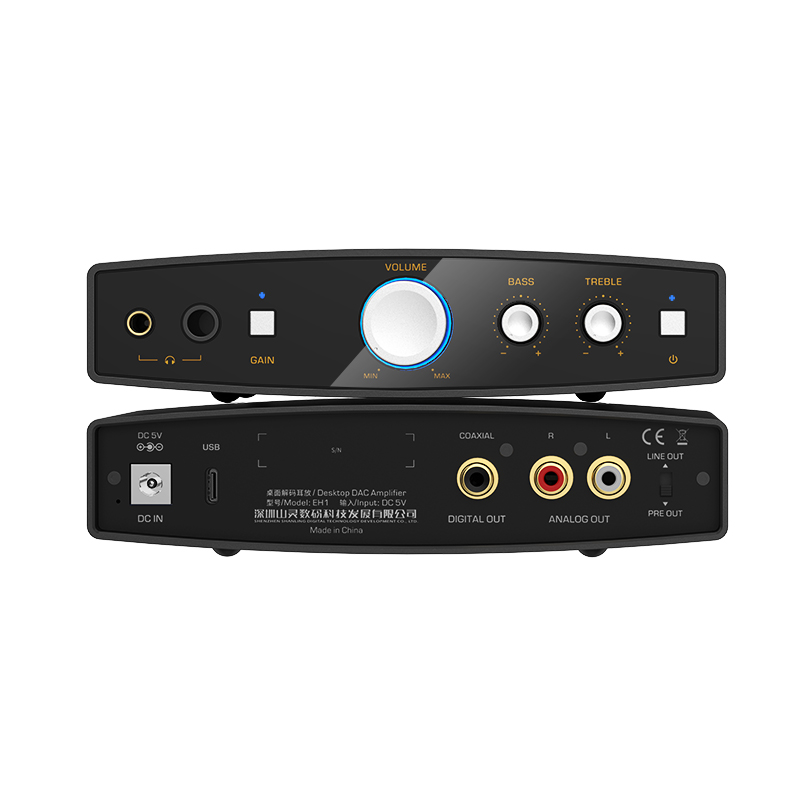

With both USB-C and 5V DC power options, the EH1 is versatile enough to fit seamlessly into any setup. It includes 6.35mm and 4.4mm headphone outputs for compatibility with various headphones, as well as an RCA output that can be switched between Line-out and Pre-out modes. Additionally, the SPDIF coaxial digital output enhances connectivity options, making it a powerful tool for any audio enthusiast.

Technical Details

Size
156 x 90 x 36.5 mm
Weight
392.5 g
6.35mm Single-Ended Headphone Out
Output Power: High Gain: 250 mW @ 32ฮฉ; High Gain (DC Power): 399 mW @ 32ฮฉ
Frequency Response: 20 Hz - 40 kHz (-1.5 dB)
THD+N: 0.007% (A-Weight @ 1 Vrms, High Gain @ 32ฮฉ)
Dynamic Range: 119 dB
Channel Separation: 75 dB
Signal-to-Noise Ratio: 119 dB (A-Weight, High Gain)
Noise: 110 dB
Output Impedance: 0.4ฮฉ
4.4mm Balanced Headphone Out
Output Power: Low Gain: 250 mW @ 32ฮฉ; High Gain: 980 mW @ 32ฮฉ; High Gain (DC Power): 1015 mW @ 32ฮฉ
Frequency Response: 20 Hz - 40 kHz (-0.5 dB)THD+N: 0.008% (A-Weight @ 1 Vrms, High Gain @ 32ฮฉ)
Dynamic Range: 119 dB
Channel Separation: 99 dB
Signal-to-Noise Ratio: 119 dB (A-Weight, High Gain)
Noise: 104 dB
Output Impedance: 0.8ฮฉ
RCA Out (Line Out)
Output Level: 2.38 V
Frequency Response: 20 Hz - 40 kHz (-1.2 dB)
THD+N: 0.0007% (A-Weight, High Gain)
Dynamic Range: 123 dB
Channel Separation: 114 dB
Signal-to-Noise Ratio: 122 dB (A-Weight, High Gain)
Noise: 116 dB
Inside the Box
  • 1 x Shanling EH1
  • User Manual
