Extra Power, Smaller Body

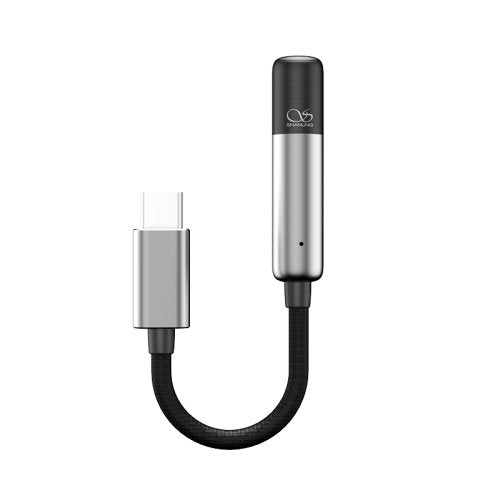

The Shanling UA Mini is a compact and lightweight USB DAC/AMP that delivers impressive audio performance in a sleek, portable design. Weighing just 8.4g, it’s one of the lightest DACs in Shanling’s lineup, yet it offers enhanced power output for driving demanding headphones with ease.

Cirrus Logic CS43131: Neutral & Detailed DAC

Equipped with the Cirrus Logic CS43131 DAC, the UA Mini provides a neutral, detailed sound that audiophiles love. With an impressive signal-to-noise ratio of 126dB, it delivers excellent audio clarity and accuracy.

SGM8262 Op-Amp: Enhanced Headphone Output

Featuring the SGM8262 op-amp, the UA Mini offers a more robust headphone output, providing enhanced power and driving capacity compared to previous Shanling budget models. This ensures better performance with a wider range of headphones.

Savitech SA9312: High-Performance USB Chip

The Savitech SA9312 USB chip ensures smooth data transfer and low-noise USB communication between your device and the DAC, guaranteeing a seamless and stable connection.

Ultra-Low Noise Output: Clean Background

Designed with a focus on portable audio and sensitive earphones, the UA Mini delivers ultra-low noise output, providing a black background with no audible hiss or distortion, even in demanding listening situations.

Universal USB-C Connection: Wide Device Compatibility

The UA Mini uses a standard USB-C connection, making it universally compatible with Android, iOS, and Windows devices. The durable cable, made of silver-plated copper, ensures a pure signal transmission with minimal loss.

RGB LED Playback Indicator

The built-in RGB LED indicator displays a range of colors, showing the current sampling rate or DSD playback during audio playback.

Technical Details

Weight
Approx. 8.4g
Dimensions
42 x 10 mm (Main Body) / 128mm Total Length with Cable
Headphone Connector
3.5mm
Data Connector
USB-C
USB Chip
Savitech SA9312
DAC Chip
Cirrus Logic CS43131
Amplifier
SGM8262-2
PCM Support
44.1-384kHz / 32bit
DSD Support
DSD64-DSD256
Output Power
(32Ω, THD+N < 1%) L+R = 205mW + 205mW
Output Power
(16Ω, THD+N < 1%) L+R = 260mW + 260mW
SNR
126dB (320Ω Load / A-weighted)
DNR
126dB (32Ω Load / A-weighted)
THD+N
0.0004% (-3dB @ 320Ω Load)
Noise Floor
1.4uV (A-weighted)
Frequency Response
+0.2dB (20-20kHz)
Output Impedance
0.50Ω
Inside the Box
  • 1 x Shanling UA Mini
  • User Manual
