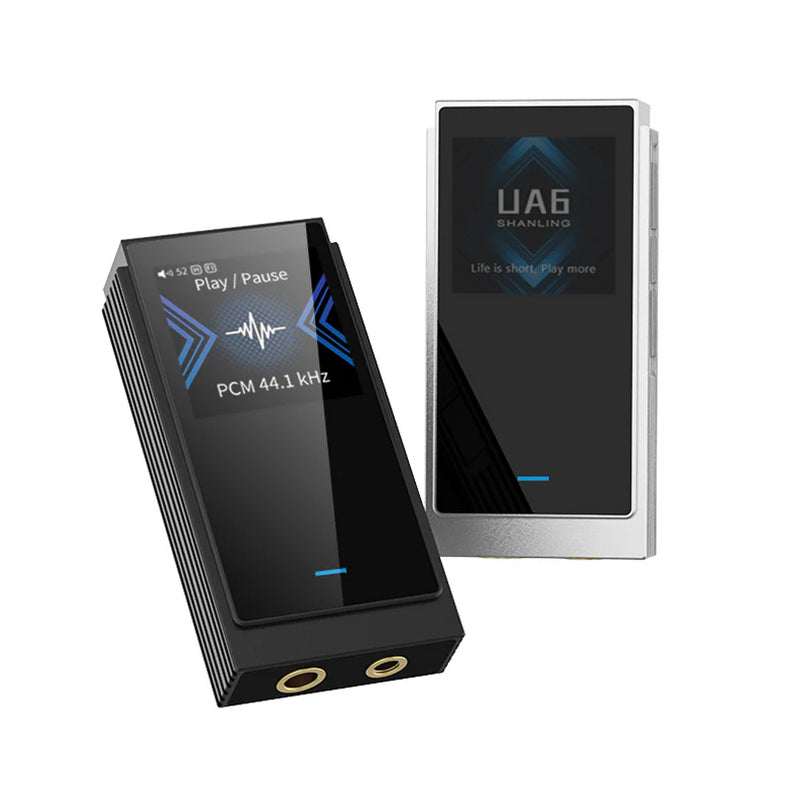

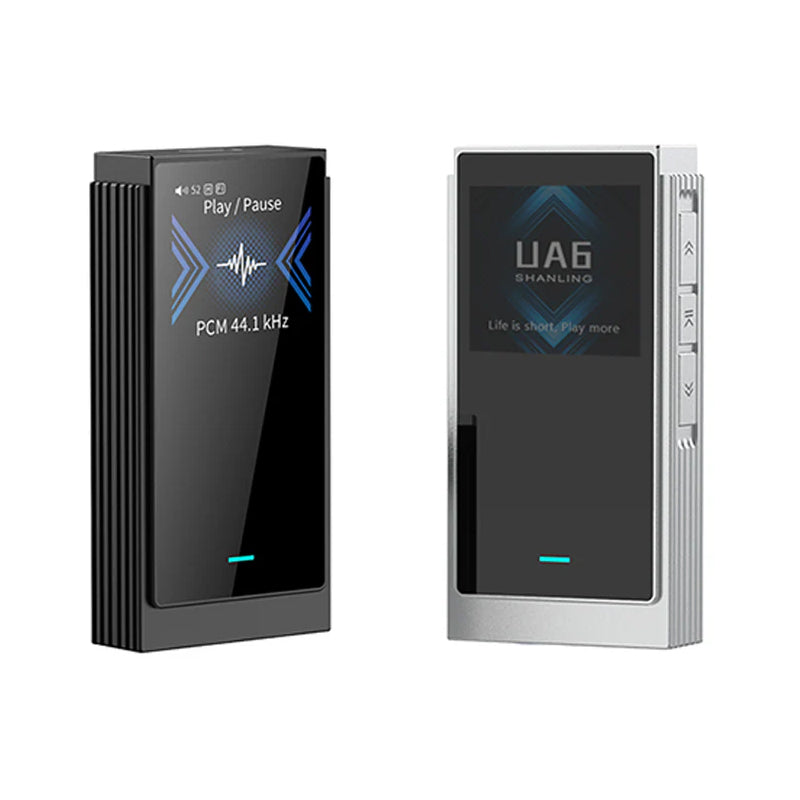

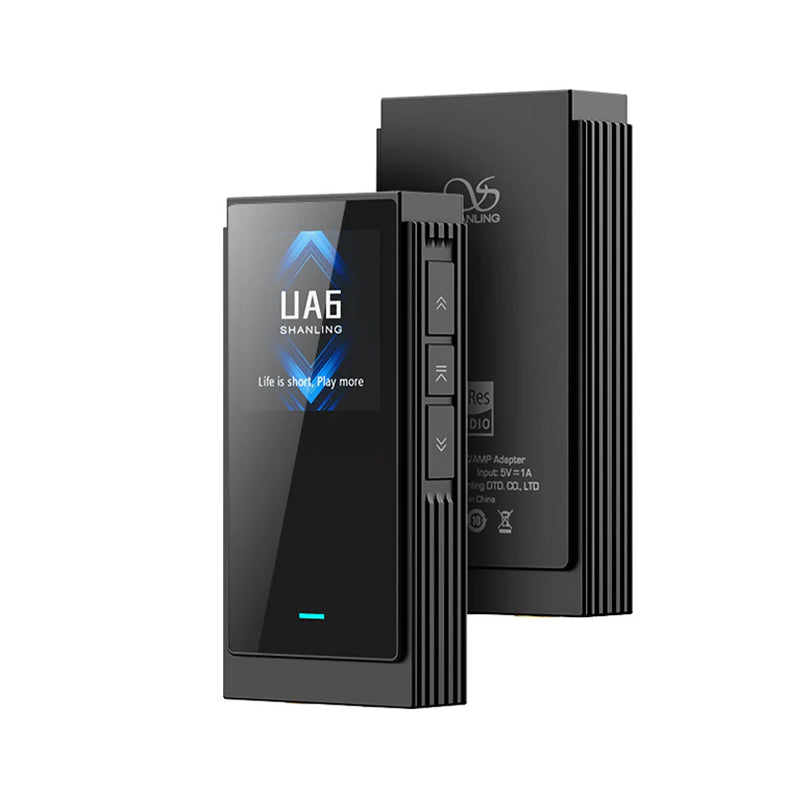

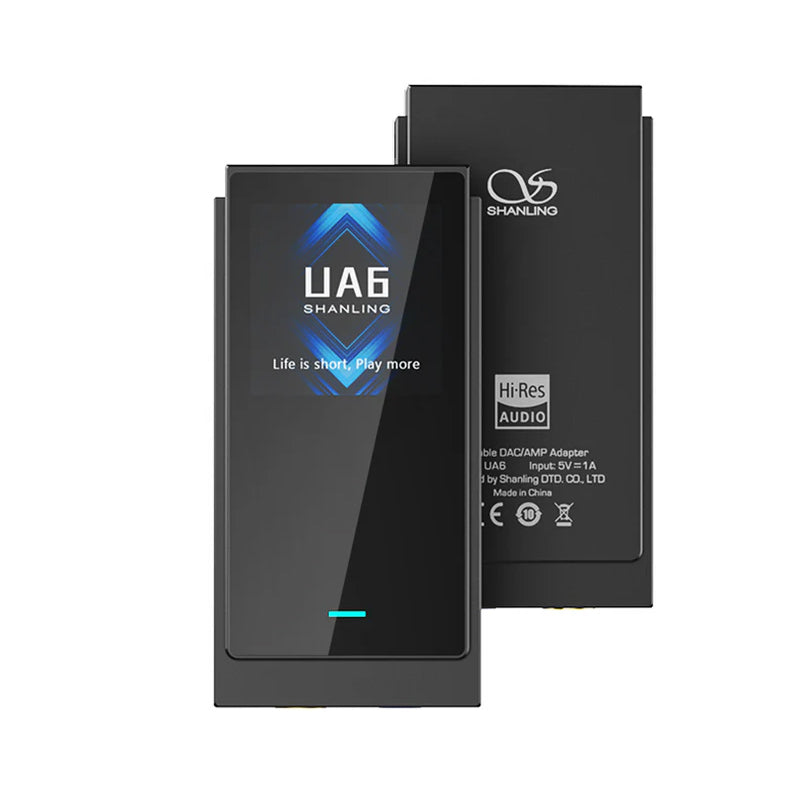

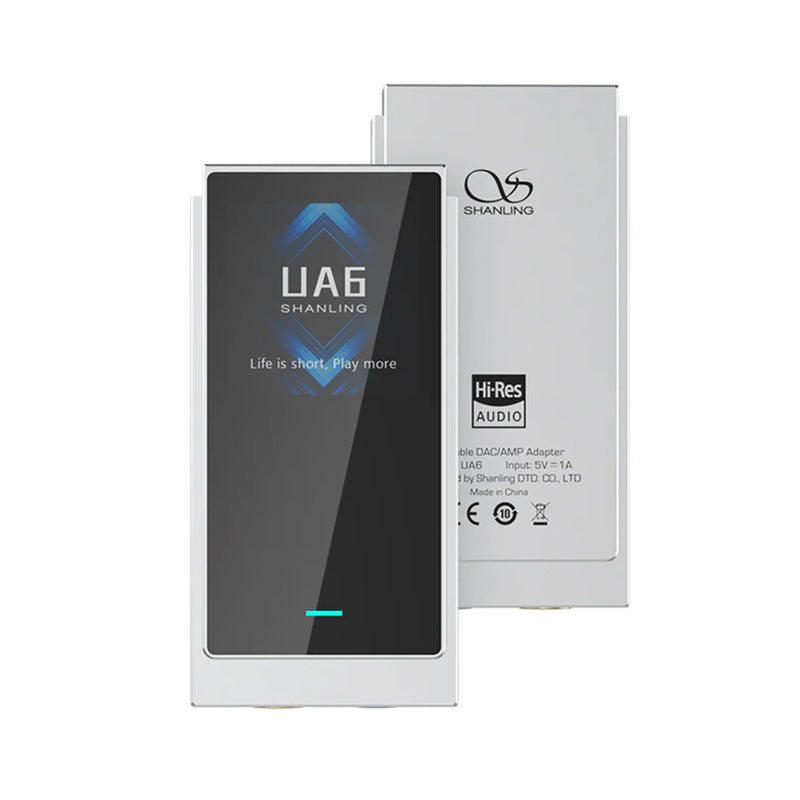

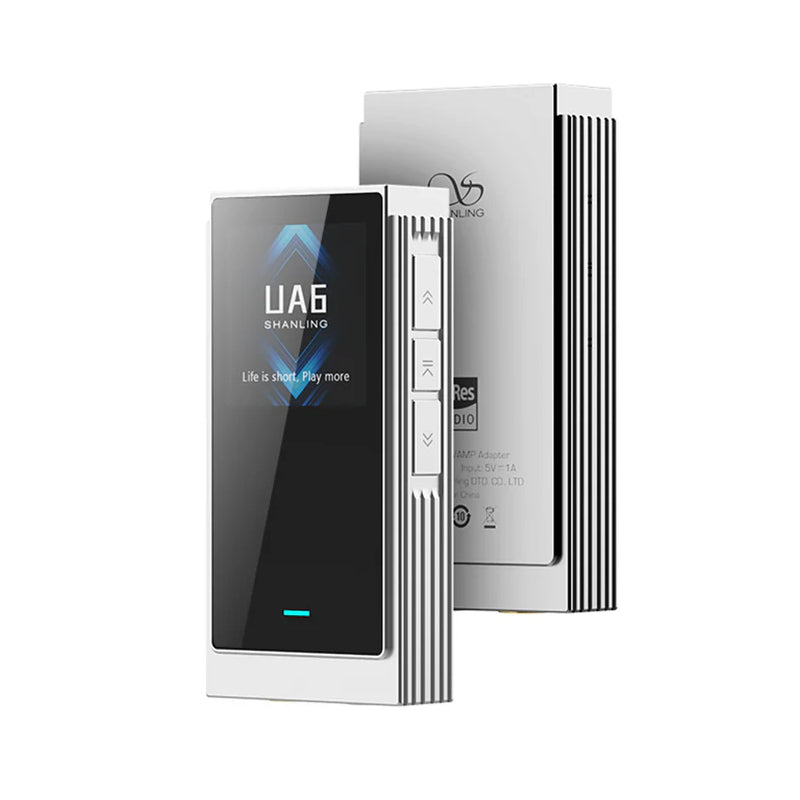

Four-Core Powerhouse: Elevating Audio Performance

The UA6 is powered by four CS43131 chips, forming an advanced acoustic matrix that delivers powerful current output and supports 768kHz/32bit PCM and DSD512 hardware decoding. Equipped with ultra-variable frequency technology, the device maintains stable temperature control with low power consumption, while providing an exceptional, warm sound signature that captivates the listener. The UA6 also supports dual DAC and four DAC mode switching, enabling users to explore optimal audio experiences across different modes.

Hybrid Power with Intelligent Battery Management

The UA6 features a 220mAh lithium battery with Hybrid Power Supply System 2.0, resolving unstable phone power issues. Its optimized battery management ensures cleaner signal output and better control. Intelligent pre-buffering reduces sudden power consumption, making it compatible with power-sensitive devices like iPhone. During dynamic playback, the battery automatically supplements power, improving performance and reducing power fluctuations.

Low Noise, Pure Sound

The UA6 employs Shanling’s signature noise control technology, featuring a low-noise, high-current LDO power chip that delivers a pure black background. Its high-fidelity design ensures clean and clear audio, making every note distinct, allowing listeners to fully experience the delicacy and emotion of the sound.

Switch Compatibility for Immersive Gaming

Hold the UA6 multifunction button while plugging it into the Switch, and once the screen displays "UAC1.0", the UA6 instantly transforms into an external DAC amp for your Switch. Enjoy immersive sound that brings your gaming experience to life.

Personalized Sound Experience through App Customization

The UA6, via the official Eddict Player app (currently Android only), allows for fine volume adjustments, 5 filter options, dual DAC/four DAC modes, high/low gain, and channel balance settings. Customize your sound experience with a variety of features. The app also supports font color, font type, screen rotation, and theme customization. Note: Currently only supports Android devices. The next/previous track function may not work on some phones.

Premium Cable Selection for Versatile Compatibility

The UA6 comes standard with a 7-strand, 18-core high-purity oxygen-free copper cable, ensuring clean signal transmission and richer sound quality. Its interchangeable cable design allows for broad compatibility with iOS, Android, and PC devices, enabling seamless use across multiple devices and scenarios. Future cable upgrades can further optimize audio quality. Note: Standard Type-C cable included; No driver required for macOS, Windows users please download the UA series USB driver from Shanling’s official website.

Vibrant LED Indicators for Clear Monitoring

The UA6 supports up to 768kHz/32bit, and its LED indicator changes color based on the current sampling rate, making it easy to see at a glance.
Blue: 32/44.1/48kHz; Yellow: 128/176.4/192kHz
Green: 64/88.2/96kHz; Purple: 352/384/705/768kHz
White: DSD64/DSD128/DSD256/DSD512; Red: 44.1/48kHz (UAC 1.0)

Technical Details

Weight
About 35g
Size
68 x 33.5 x 13.6 mm
Supported Specifications
768kHz/32bit and DSD512
Gain Compensation
High, Low
DAC Converter Chip
CS43131 × 4
Digital Filter
5 different filtering methods
Battery Capacity
220mAh
3.5mm PO Output
Output Power: Low Gain: 1V @ 32Ω (31mW @ 32Ω); High Gain: 1.9V @ 32Ω (112mW @ 32Ω)
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.00025% @ 32Ω (A-Weighted @ 1.8V High Gain)
Dynamic Range: 128dB @ 32Ω (A-Weighted High Gain)
Channel Separation: 68dB @ 32Ω (A-Weighted High Gain)
Signal-to-Noise Ratio: 127dB @ 32Ω (A-Weighted High Gain)
Noise: 122dB @ 32Ω (A-Weighted High Gain)
Impedance: <0.6Ω
4.4mm Balanced Output
Output Power: Low Gain: 1.8V @ 32Ω (101mW @ 32Ω); High Gain: 3.4V @ 32Ω (361mW @ 32Ω)
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0006% @ 32Ω (A-Weighted @ 2V High Gain)
Dynamic Range: 133dB @ 32Ω (A-Weighted High Gain)
Channel Separation: 129dB @ 32Ω (A-Weighted High Gain)
Signal-to-Noise Ratio: 132dB @ 32Ω (A-Weighted High Gain)
Noise: 121dB @ 32Ω (A-Weighted High Gain)
Impedance: <1.2Ω
Inside the Box
  • 1 x Shanling UA6
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The Shanling UA6 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 2 to 4 weeks.

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
