German Infineon GaN FET Technology

Features advanced Gallium Nitride FET with a switching frequency up to 1MHz, delivering refined and detailed full-band audio performance.

Pure Amplification Modes

Pure Amp Stereo Mode: Enjoy stereo pure amplification with pass-through functionality. Pair it with the SMSL D200 DAC preamp for a more direct and uncolored sound experience.Pure Amp Mono Mode: Use XLR input for mono mode. Combine two units for stereo operation, increasing power output by 4x to drive high-power-tolerant speakers effortlessly.

Audiophile-Grade Internal Components

Equipped with a high-quality, high-power, audio-grade switching power supply, ensuring superior performance and reliability.

Technical Details

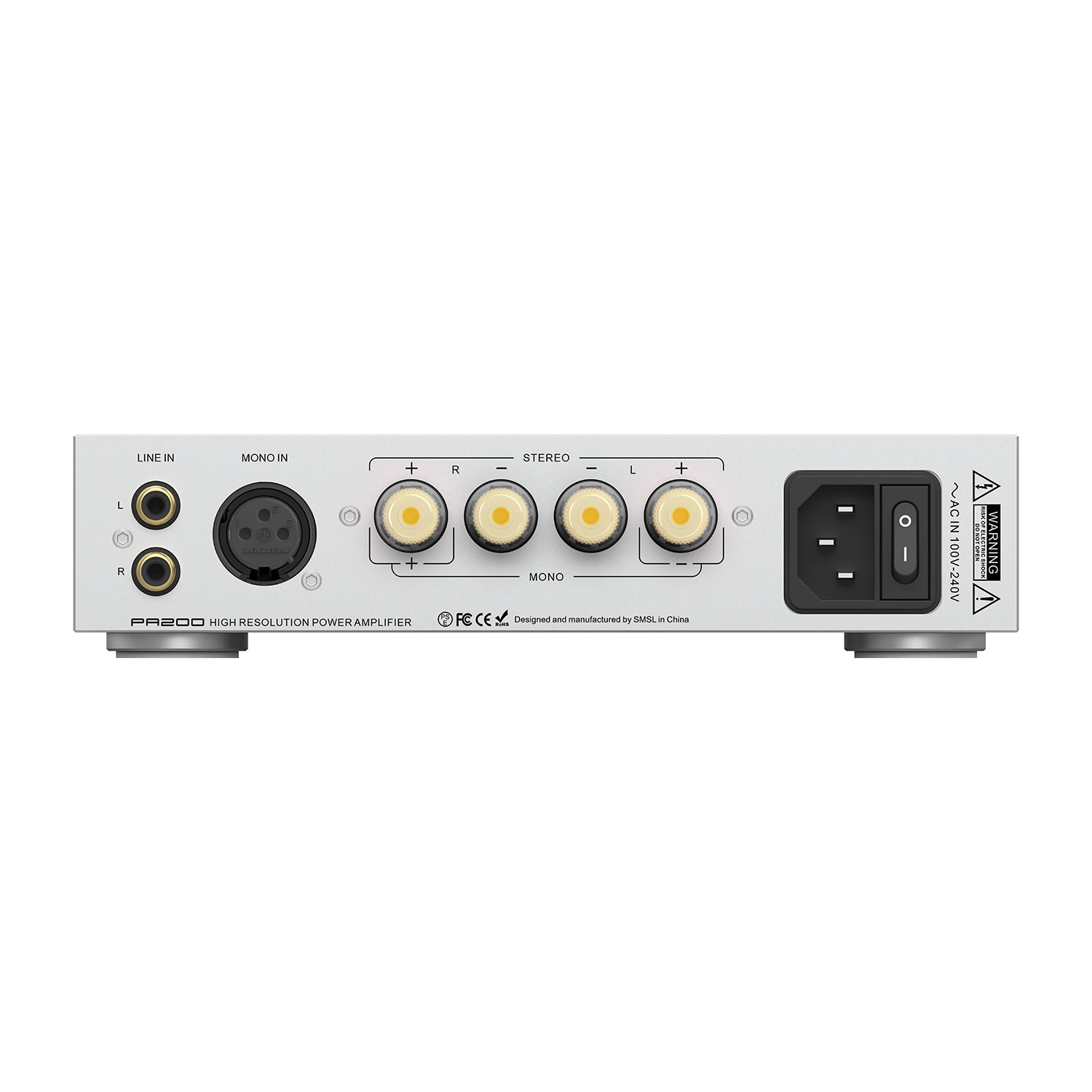

Inputs
RCA / XLR
THD+N
0.00003
SNR
109dB
Channel Separation
75dB
Input Sensitivity
Stereo: 0.68Vrms/22kΩ
Mono: 2.1Vrms/22kΩ
Output Power
Stereo: 160W RMS x 2 (4Ω) / 85W RMS x 2 (8Ω)
Mono: 400W RMS x 1 (4Ω) / 250W RMS x 1 (8Ω)
Power Consumption
40W (Normal Volume)
Standby Power
<0.5W
Dimensions
220 x 45.9 x 175 mm (W x H x D)
Weight
1.44 kg / 3.17 lbs
Inside the Box
  • 1 x SMSL PA200
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The SMSL PA200 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 1 week.
