USB Input Support

Enjoy high-resolution audio with USB input supporting up to 32bit/768kHz and DSD512 for ultra-precise sound reproduction.

Clock Input & Output

Achieve perfect synchronization with 44.1kHz word clock and 10MHz atomic clock input/output, featuring impedance matching of 50 or 75Ω.

Self-Developed Precision Access Servo System

After two years of development, SMSL's servo system offers fast response, precise reading, and excellent anti-vibration performance, combined with a vibration damper for superior mechanical stability.

MQA Full Decoding Support

Experience high-fidelity sound with native support for MQA-CD, unlocking the full resolution of MQA-encoded tracks.

Multiple Power Supply Modes

Three modes of power supply to suit different audio environments.

Multi-Interface Output Options

Includes optical, coaxial, I2S, and AES/EBU outputs for versatile connectivity.

Low Phase Noise Crystals & Clock Circuits

Equipped with multiple low-phase noise crystals and precision clock circuits to ensure exceptional timing accuracy for digital audio playback.

Tempered Glass Fully Laminated Display

Showcases the display in a sleek design, providing a clear view while ensuring durability and scratch resistance.

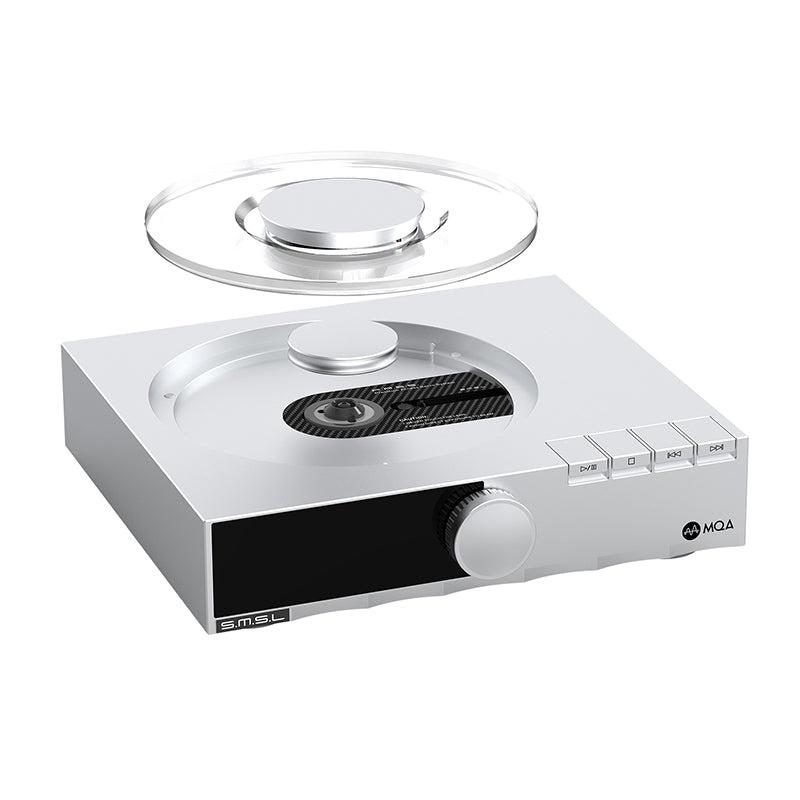

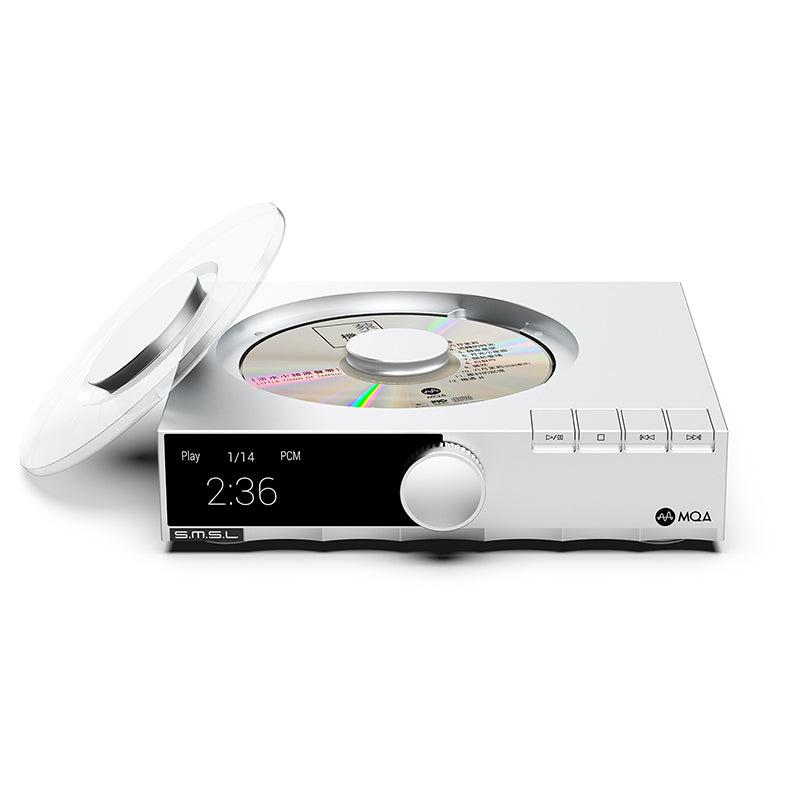

Transparent Acrylic CD Lid

Protects the CD while allowing you to watch it in action without risk of breakage.

High-Quality Aluminum Alloy Housing

A robust, full aluminum alloy body that ensures durability and a premium feel.

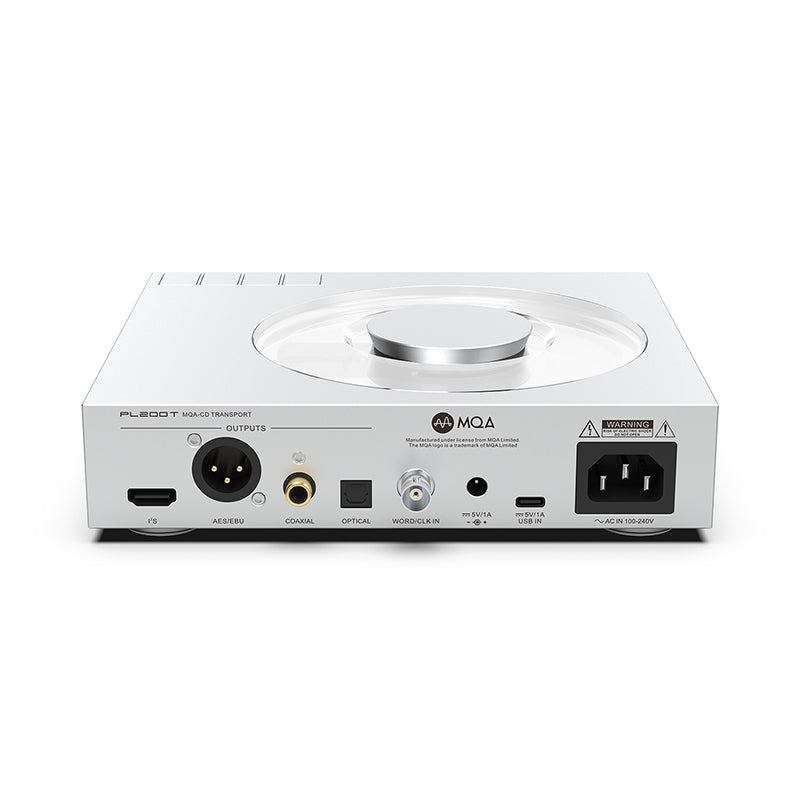

Gold-Plated Input/Output Terminals

High-quality, gold-plated input and output terminals for secure and stable connections.

Technical Details

Input
USB Audio / CD Player
Output
Optical / Coaxial / AES / EBU / I2S
USB Transmission
USB 2.0 Asynchronization
USB Compatibility
Windows 7 / 8 / 8.1 / 10 / 11 (Need Driver). Mac OSX 10.6 above, Android system, iOS, Linux (Driveless).
Output Maximum Sampling Rate
I2S output: PCM 44.1~768kHz, DSD 2.8224~22.5792MHz
Optical/Coaxial/AES/EBU
PCM 24bit/192kHz, MQA 8-fold expansion up to 384kHz (Automatically converts to 192kHz due to SPDIF limitation)
Clock Input
Frequency: 44.1kHz or 10MHz, Impedance: 50 ohms or 75 ohms, Waveform: square wave or sine wave, Level: Square wave, TTL level, sine wave>1Vrms
Power Consumption
15W
Standby Power
<0.5W
Size
200x42x175mm (WxHxD)
Weight
1.62kg / 3.57lbs
Inside the Box
  • 1 x SMSL PL200T
  • User Manual
