Convert USB to Coaxial/Optical/AUX

The xDuoo DT-01 HiFi Turntable allows you to convert USB audio from your phone or tablet into coaxial, optical, or analog signals. This functionality makes it easier to access current pop music from mobile devices and deliver high-quality sound to high-end decoders, amplifiers, or active speakers. Supporting up to PCM 32Bit/384kHz and DSD256, the DT-01 ensures exceptional audio fidelity.

Colorful Indicator Lights

Designed with user convenience in mind, the DT-01 features colorful indicator lights that show the song sampling rate in real-time. This allows you to instantly know the format of the audio being played, enhancing your listening experience.

Charging the Phone

The DT-01 includes a charging switch, enabling you to charge your phone while the device is in use or turned off. This effectively addresses battery life issues, ensuring uninterrupted music playback even during extended use.

High-Performance USB Chip

The USB signal processing in the DT-01 is handled by the renowned XMOS multi-core chip, offering strong performance and operating in asynchronous transmission mode. This ensures smooth USB signal processing, supporting up to 32-Bit/384kHz PCM and native DSD256 audio signals.

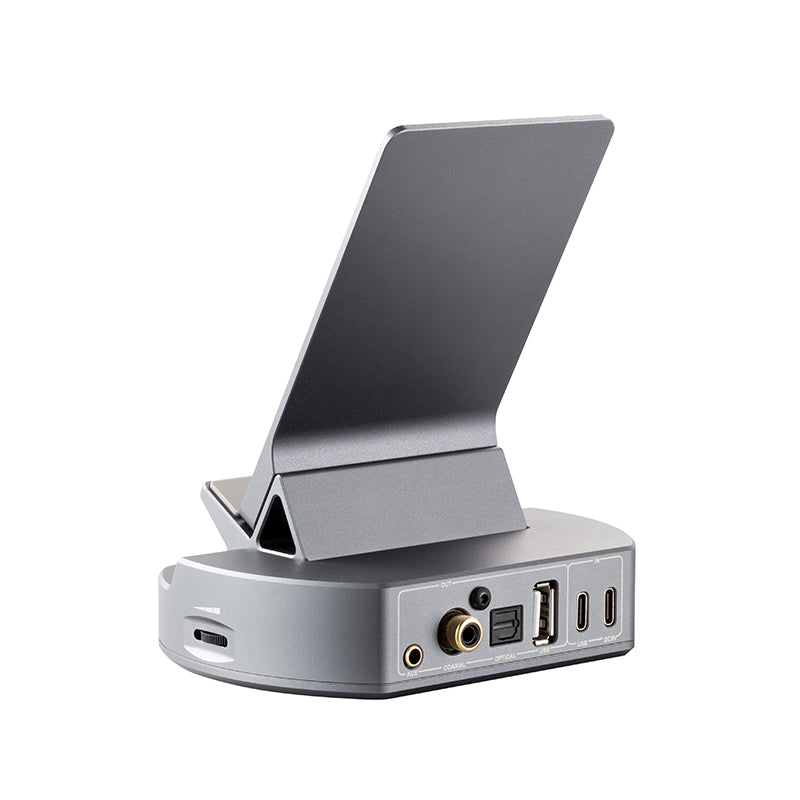

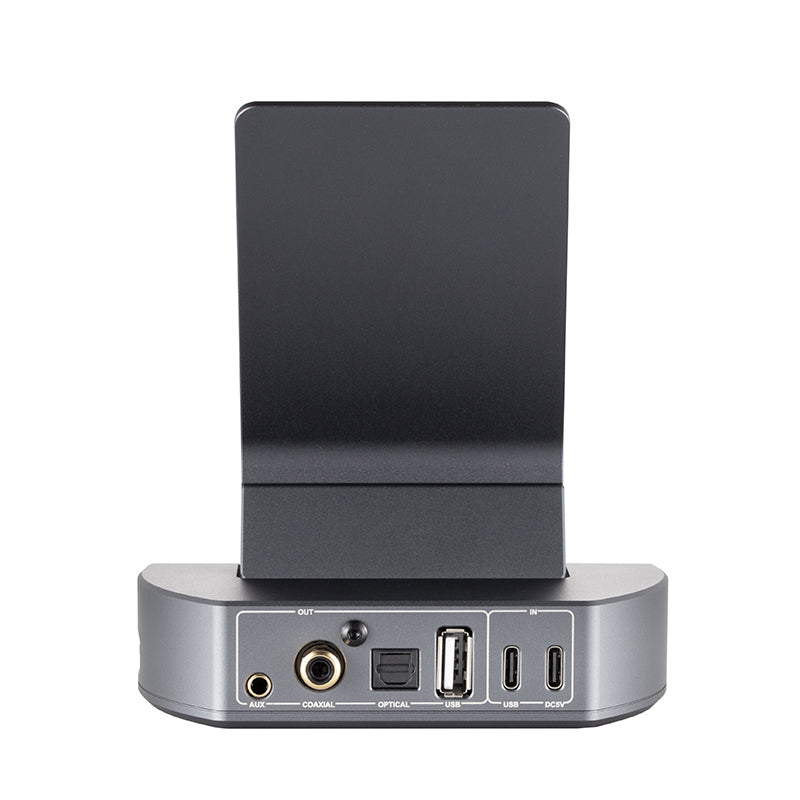

Versatile Outputs

The DT-01 supports coaxial and optical outputs up to PCM 24Bit/192kHz and DSD64 (DOP), allowing connection to various audio decoding devices. Additionally, it features an AUX out using the ES9038Q2M DAC chip, providing high-quality analog signals to power amplifiers or active speakers.

Pre-Amp and Headphone Output

The DT-01 includes a volume control for the AUX output, acting as a pre-amp and eliminating the need to adjust the speaker volume. It also features a headphone output port, allowing for private listening without disturbing others. With an output power of up to 350mW, the DT-01 can easily drive many types of headphones.

Technical Details

Power Input
DC 5V/2A
Sampling Rate Display
Multi-color display
Compliant OS
Windows/Linux/Mac OS X/iOS/Android
Frequency Response
USB: 20Hz~20kHz (ยฑ0.5dB)
AMP: 10Hz~80kHz (ยฑ0.5dB)
Sampling Rate Support
PCM:16-32BIT/44.1-384KHZ
DSD: DOP/NATIVE,DSD64-256
Coaxial
Output Sampling Rate: PCM: 16-32BIT/44.1-384kHz, DSD: DOP/NATIVE, DSD64-256
Output Level: 0dBFS
THD+N: 0.000008%
Optical
Output Sampling Rate: PCM: 16-24BIT/44.1-192kHz, DSD64 (DOP)
Output Level: 0dBFS
THD+N: 0.000008%
AUX OUT
Output Level: 2.0Vrms
THD+N: 0.009% @ 1kHz
S/N: 115dB
Crosstalk: โ‰ฅ89dB
Headphone Output
Output Power: 350mW (32ฮฉ load)
THD+N: 0.015% @ 1kHz
S/N: 113dB
Crosstalk: โ‰ฅ65dB
Size
11.5 x 9.0 x 13.0 cm
Weight
0.4 kg

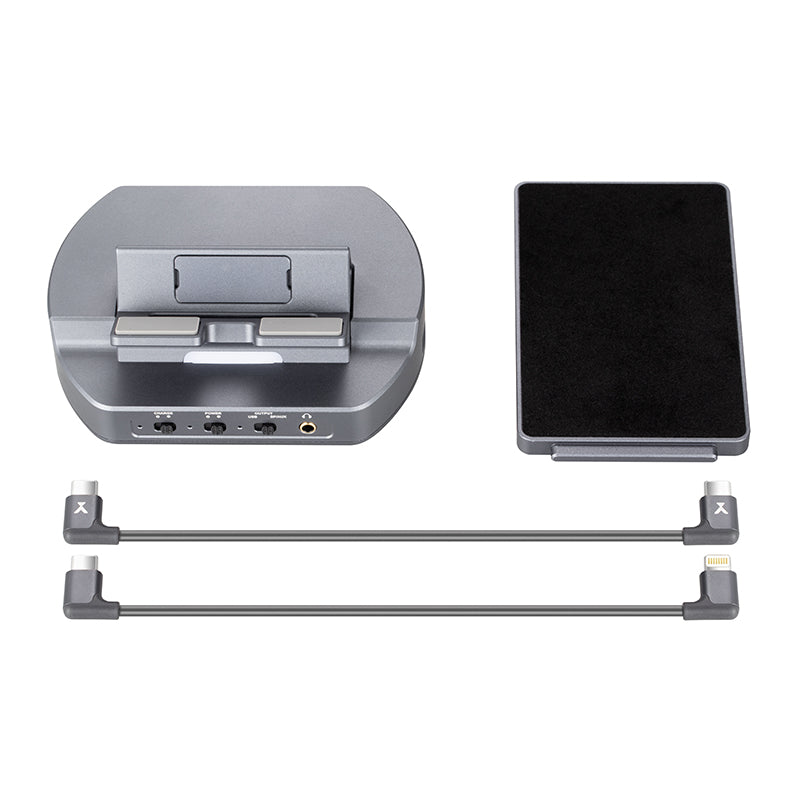

Inside the Box
  • 1 x xDuoo DT-01
  • User Manual
