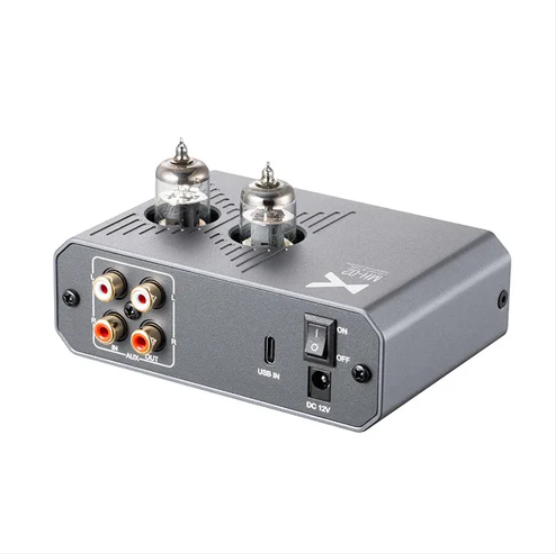

USB DAC & Tube Headphone Amplifier

The xDuoo MH-02 CS43131 USB DAC & Tube Headphone Amplifier combines the versatility of a USB DAC with the warmth of tube amplification, offering an unparalleled listening experience.

USB DAC Decoding

Experience seamless connectivity with support for USB decoding from computers, smartphones (iOS/Android), tablets, HiFi players, and more. Enjoy high-fidelity audio with PCM up to 32Bit/384kHz, DSD256, and MQA up to 32Bit/384kHz, from a wide range of devices.

CS43131 DAC Chip

Powered by the renowned CS43131 DAC chip, the MH-02 ensures pristine audio reproduction with exceptional clarity and detail, thanks to its ultra-low noise and superior resolution.

Enhanced Sound with Double 6J1 Tubes

The double 6J1 tubes serve as pre-amps, enriching your audio with the sweet and exquisite sonic character characteristic of tube amplification.

Transistor Class-A Amplifier

Featuring transistors for Class-A buffering, the MH-02 delivers a robust output power of up to 1300mW, effortlessly driving a wide range of headphones with ease.

Gain Switch for Tailored Performance

Customize your listening experience with a two-gear gain switch, ensuring the perfect match for headphones of varying impedance, for optimal audio output tailored to your preferences.

Line Out as Pre-Amplifier

Utilize the line output, controlled by the tube and volume, as a pre-amplifier for audio amplifiers or active speakers, elevating the sound quality with transparent and sweet tones.

High-Grade Audio Capacitors

Experience transparent and sweet sound with Japanese ELNA capacitors serving as coupling capacitors, while Japanese RUBYCON capacitors provide smooth and warm tones with splendid high frequencies.

Built-in Protect Circuit

Enjoy peace of mind with the built-in relay mute circuit, ensuring a seamless transition when turning on the amplifier, protecting the tubes from POP noise, and ensuring optimal performance.

Technical Details

Power Supply
DC12V/2A
Compliant OS
Windows, Linux, macOS X, iOS, Android System
Sampling Rate Support
PCM 16-32bit/44.1k-384kHz, DSD64-256
Output Power
1300mW (32ฮฉ Load)
Frequency Response
10Hz~60kHz (ยฑ0.5dB)
Gain
+12/18dB
THD+N
โ‰ค0.8% (1kHz, 32ฮฉ Load)
S/N Ratio
118dB
Crosstalk
โ‰ฅ70dB
Size
12 x 7.8 x 4.0cm
Weight
0.35kg
Inside the Box
  • 1 x xDuoo MH-02
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The xDuoo MH-02 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 1 week.

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
