HD Bluetooth Input

Using Qualcomm CSR8675 Bluetooth receiver chip, support Bluetooth 5.0 technology, supporting AAC/ SBC/ aptX/ aptX_LL/ aptX_HD/LDAC audio coding Bluetooth format, powerful decoding capability allows you to enjoy the fun of various high-definition sound quality and inject new vigor and vitality.

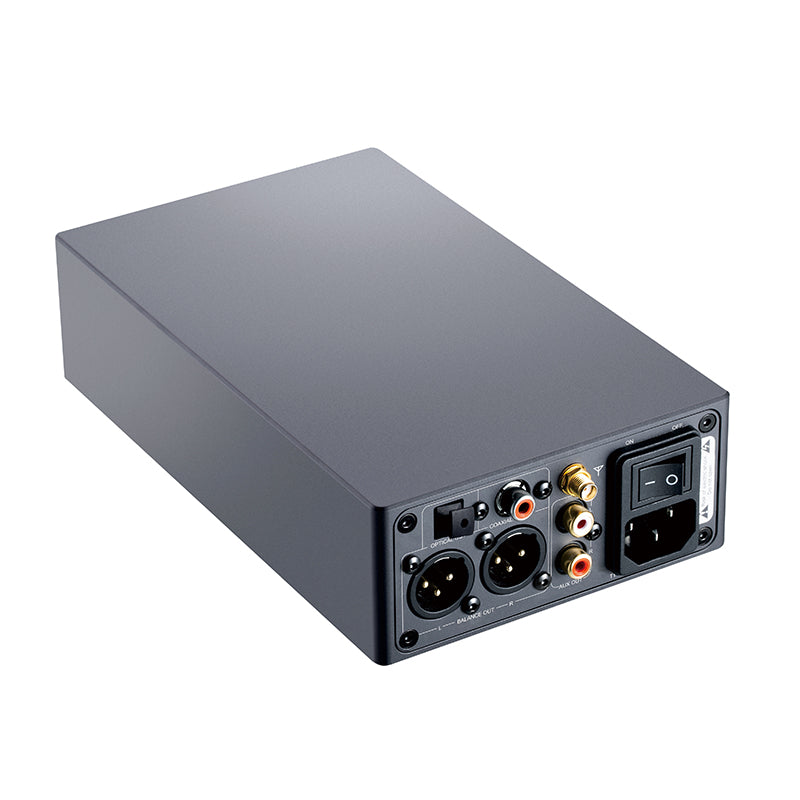

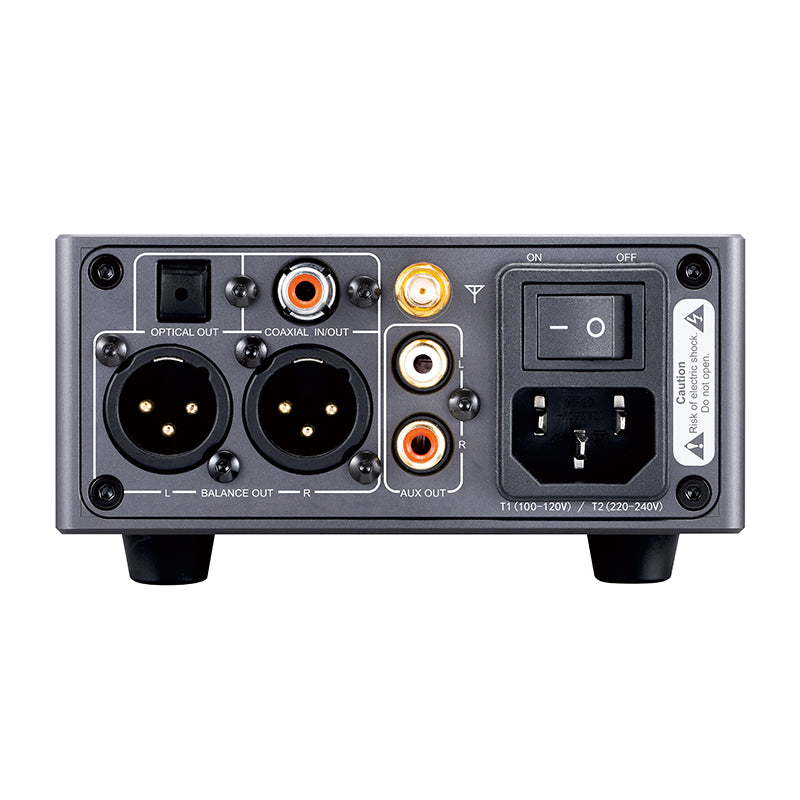

Rich Output Interface

With coaxial and optical output, support up to 24bit/192khz output With AUX and XLR balanced output, high-quality balanced analog signal output, S/N, Crosstalk, THD+N and sound quality are fully improved.

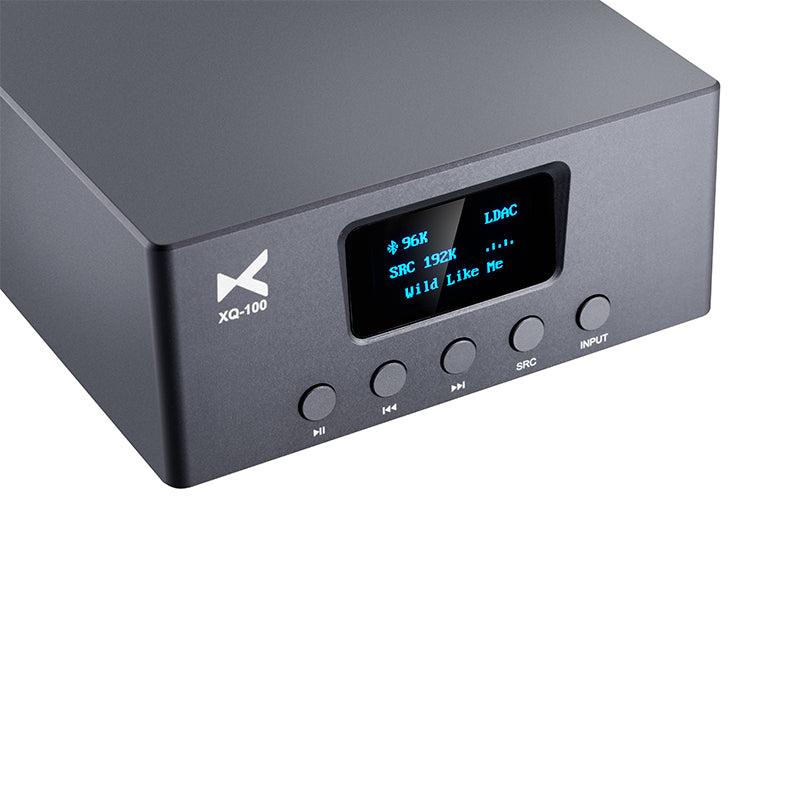

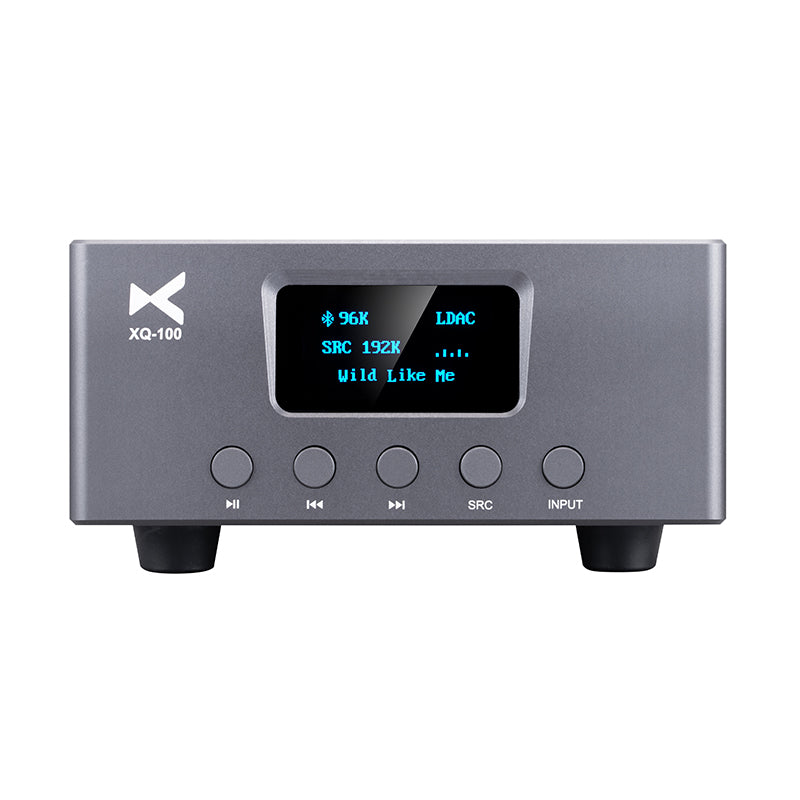

OLED screen displays Bluetooth information

Using OLED display, the Bluetooth connection status/coding format/sampling rate/song name and other information can be displayed Intuitively, so that you can know the working status at any time.

High Performance Chip

Adopt high performance CS8406 digital conversion chip, transform the Bluetooth signal into high quality optical and coaxial signal out. Two ES9038Q2M decoder chips are used, with extremely high S/N and extremely low THD+N.

Aluminum shell Processed by CNC Technology

The shell is made of aluminum alloy, uses a block of aluminum processed by CNC technology, which has excellent shielding characteristics.

Technical Details

Supply
AC 100- 120V/220-240V
Screen
1.3inch OLED
Bluetooth
5.0
Bluetooth Chip
CSR8675
Audio Formats
SBC、AAC、 aptX、 aptX_ LL、aptX_ HD、LDAC
Transmission distance
10M
THD+N
OPT: 0.00087%, COA: 0.00087%
AUX OUT: 0.07%, BAL ANCED OUT:0.005%
OUTPUT LEVEL
OPT: 0.5Vp-p COA: 0.5Vp-p
AUX OUT: 2.0V BAL ANCED OUT: 4.0V
Size
21.0* 12.0*5.2cm
Weight
1.2kg
Accessories
Power cord*1, Antenna*1, Manual*1, Warranty Card*1
Inside the Box
  • 1 x xDuoo XQ-100
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The xDuoo XQ-100 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: For orders placed from 1 Apr 2023, in-stocks are expected to arrive by the end of 9 Apr 2023.

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
